DESCRIPTION TO Hanwha XND-8040R Dome Camera

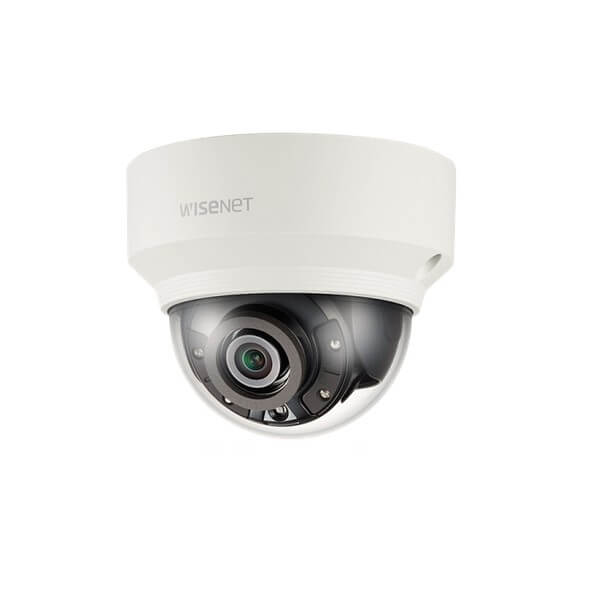

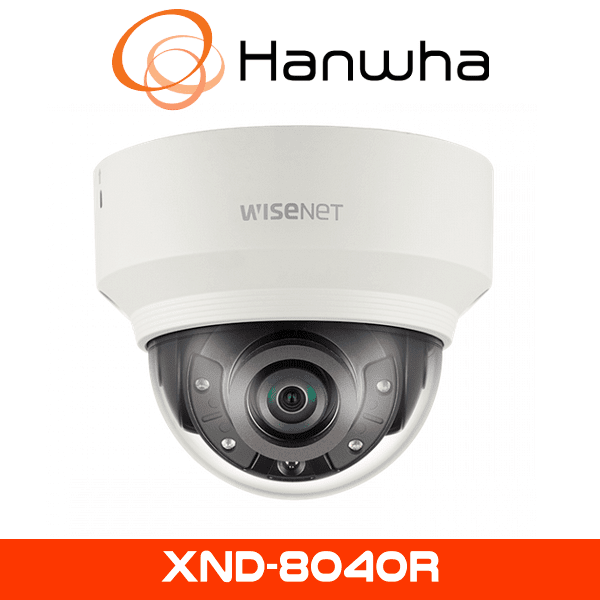

The Hanwha XND-8040R CCTV Camera, from Hanwha CCTV Previously Known As Samsung CCTV, is a high-performance 5MP indoor dome camera designed for advanced surveillance. Available through trusted Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, it features a 7mm fixed lens with a 50.7° field of view, capturing sharp details in retail, offices, or public spaces. Its AI-driven analytics, including people counting, queue management, and heatmap, optimize operations, while loitering and tampering detection enhance security.
5MP Clarity with Fixed Lens
The camera’s 5MP CMOS sensor delivers high-resolution footage at 2560×1920, capturing fine details in retail, offices, or public spaces. Its 30fps ensures smooth video playback for dynamic scenes. The 7mm fixed lens provides a 50.7° horizontal field of view, offering focused coverage for medium-range surveillance, ideal for monitoring specific areas like store counters, office hallways, or reception desks with precision.
WiseIR for Night Vision
Equipped with WiseIR technology, the Hanwha XND-8040R CCTV Camera provides illumination up to 30 meters, ensuring clear black-and-white images in complete darkness. This is perfect for indoor settings like retail stores or offices after hours, enhancing 24/7 security coverage without requiring additional lighting.
120dB WDR for Balanced Imaging
The 120dB WDR balances high-contrast scenes, ensuring details are visible in bright or shadowed areas, such as retail entrances or well-lit lobbies. This delivers consistent image quality for reliable monitoring in varied lighting conditions, making it suitable for environments with fluctuating light sources.
WiseStream II for Bandwidth Efficiency
WiseStream II compression reduces bandwidth and storage needs by up to 80%, prioritizing key frame areas. This ensures cost-effective operations for large-scale CCTV networks, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, making it ideal for extensive surveillance systems requiring efficient data management.
Durable Indoor Design
Rated IK08 for impact protection, the Hanwha XND-8040R CCTV Camera is built to withstand high-traffic indoor areas. Its compact dome design (Ø129.1 x 98.9mm) allows discreet placement, blending seamlessly into ceilings for unobtrusive surveillance in professional settings like offices or retail spaces, with a lightweight build (0.5kg) for easy installation.
Digital Image Stabilization
The built-in gyro sensor enables DIS, minimizing blur from vibrations in busy environments, ensuring steady footage for accurate monitoring, particularly in high-traffic areas like retail or public facilities where movement is common.
Comprehensive Audio Capabilities
The camera includes a built-in microphone and supports two-way audio with one input/output, enabling real-time communication. Audio detection and sound classification identify critical sounds like screams or crashes, enhancing situational awareness, especially in crowded or sensitive indoor areas.
Flexible Storage and Connectivity
Dual microSD slots provide up to 512GB of storage for data redundancy, safeguarding footage during network disruptions. PoE and 12V DC power options simplify installation, while ONVIF compatibility ensures integration with third-party systems. A USB port aids setup, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE.
Key Specifications
- Imaging Device: 1/1.8″ 5MP CMOS sensor
- Resolution: 5MP (2560×1920) at up to 30fps
- Lens: 7mm fixed lens
- Field of View: Horizontal: 50.7°; Vertical: 37.8°
- Minimum Illumination: Color: 0.16 Lux (F1.6, 1/30sec); B/W: 0 Lux (IR LED on)
- IR Distance: WiseIR up to 30m (98.4ft)
- Wide Dynamic Range: 120dB WDR
- Compression: H.265, H.264, MJPEG with WiseStream II support
- Storage: Dual microSD/SDHC/SDXC up to 512GB
- Analytics: Video analytics (loitering, directional detection, fog detection, tampering, motion detection, virtual line/area, enter/exit), audio detection, sound classification, heatmap, people counting, queue management
- Environmental Ratings: IK08
- Power: PoE (IEEE802.3af), 12V DC; Max 9.0W (PoE), 7.5W (12V DC)
- Connectivity: RJ-45 (10/100BASE-T), USB port for setup
- Audio: 1 input/1 output, built-in microphone, two-way audio support
- Dimensions: Ø129.1 x 98.9mm
- Weight: 0.5kg
- Operating Temperature: -10°C to +55°C
Specifications
| Video | |
| Imaging Device | 1/1.8″ 6MP CMOS |
| Effective Pixels | 2616(H)x1976(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.16Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 7.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 50.7˚, V: 37.8˚, D: 63.8˚ |
| Min. Object Distance | 0.4m(1.31ft) |
| Focus Control | None |
| Lens Type | Fixed |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~354˚ / 0˚~67˚ / 0˚~355˚ |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | 30m(98.42ft) |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital PTZ | Support(Preset, Group) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | People counting, Queue management, Heatmap |
| Serial Interface | None |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output DPTZ preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Resolution | 2560×1920, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Gre다 |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -10°C~+55°C(14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IK08 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE : Max 9W 12VDC : Max. 8W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| RAL Code | None |
| Product dimensions / weight | Ø110x90mm(4.33″x3.54″), 380g(0.84 lb) |
| Conduit hole | None |
| Hanging mount(Dome) | SBP-300HM7 |
