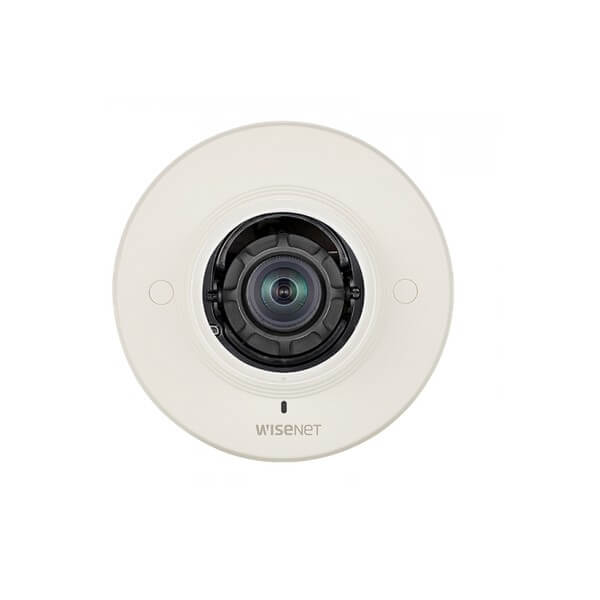

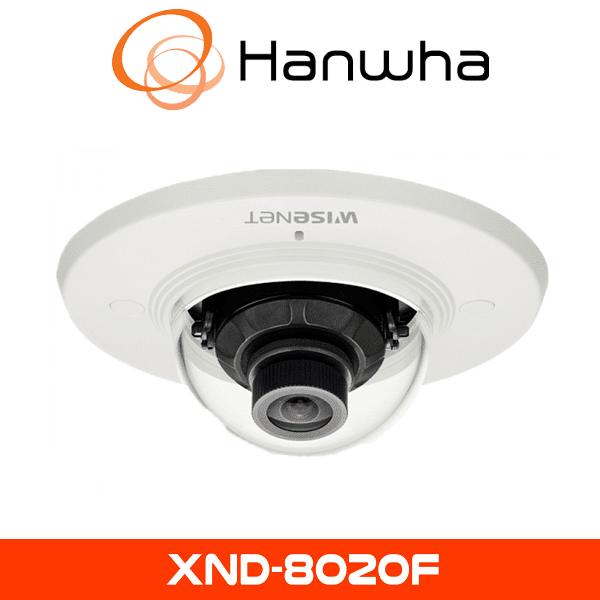

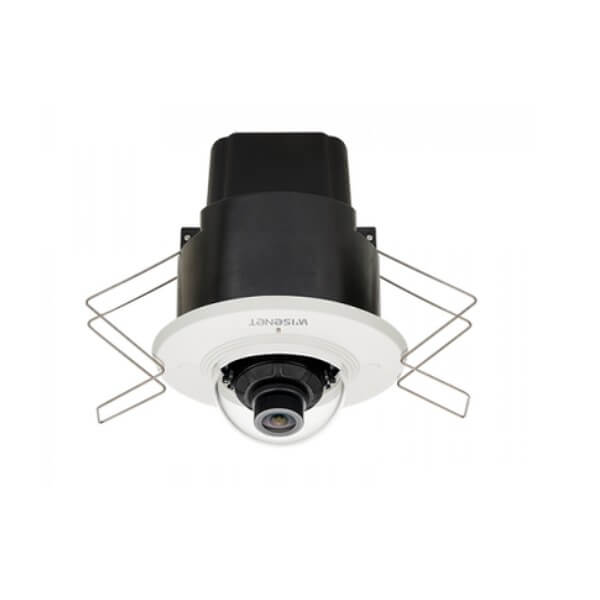

DESCRIPTION TO Hanwha XND-8020F CCTV Camera
The Hanwha XND-8020F is a premium indoor CCTV camera equipped with advanced 5MP resolution and built for mission-critical surveillance environments. Featuring a wide dynamic range, intelligent video analytics, and exceptional low-light performance, the Hanwha XND-8020F ensures unmatched security coverage. Whether it’s a commercial office, retail environment, or bank lobby in Dubai or Abu Dhabi, this fixed dome Hanwha CCTV camera — previously known as Samsung CCTV — is a reliable solution for high-detail monitoring.
Advanced 5MP Surveillance Clarity
The Hanwha XND-8020F delivers 5MP (2592 x 1944) resolution at 30fps, producing high-quality visuals in indoor environments. Whether monitoring entrances, customer zones, or staff areas, this camera gives you sharp image detail for accurate post-event analysis and live tracking.
Smart Compression and Storage Efficiency
Using WiseStream II and H.265, the Hanwha XND-8020F minimizes storage and bandwidth costs while maintaining high image quality. This makes it a cost-effective yet premium solution for enterprises in Dubai and across the UAE..
Compact Design Meets Intelligent Features
Designed to blend into modern indoor environments, this compact dome camera offers more than good looks. It features:
- Wide Dynamic Range (WDR) of 120dB for balanced exposure in mixed lighting.
- Hallway View (90°/270°) for optimized narrow corridor surveillance.
- Defocus detection and tampering alerts for proactive threat monitoring.
Key Specifications
- Imaging Device: 1/2.8” 5MP CMOS
- Resolution: Max. 2592×1944 (5MP) at 30fps
- Lens: Fixed 2.8mm / 3.6mm options
- Day/Night: True Day/Night (ICR)
- Wide Dynamic Range: 120dB
- Minimum Illumination: Color: 0.1Lux, B/W: 0.001Lux
- Video Compression: H.265, H.264, MJPEG + WiseStream II
- Smart Analytics: Motion detection, defocus detection, tampering, sound classification
- Edge Storage: microSD/SDHC/SDXC up to 512GB
- Network Protocols: IPv4/IPv6, HTTPS, SSL, QoS, SNMP, UPnP, and more
- Dimensions: 99.0 x 99.0 x 52.6 mm (3.90″ x 3.90″ x 2.07″)
- Operating Conditions: -10°C ~ +55°C, Indoor use only
Specifications
| Video | |
| Imaging Device | 1/1.8″ 6MP CMOS |
| Effective Pixels | 2616(H)x1976(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.16Lux(F1.6, 1/30sec) BW: 0.16Lux(F1.6, 1/30sec) |
| Video Out | USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.7mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 97.5˚, V: 71.9˚, D: 126.2˚ |
| Min. Object Distance | 0.4m(1.31ft) |
| Focus Control | None |
| Lens Type | Fixed |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~355˚ / 0˚~47˚ / 0˚~353˚ |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | None |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital PTZ | Support(Preset, Group) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | People counting, Queue management, Heatmap |
| Serial Interface | None |
| Alarm I/O | None |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Audio In | Built-in mic |
| Audio Out | None |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Resolution | 2560×1920, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -10°C~+55°C(14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Certification | None |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE : Max 4.7W |
| Mechanical | |
| Color / Material | Ivory / Plastic |
| RAL Code | None |
| Product dimensions / weight | Ø98.9×129.1mm(3.9″x5.1″), 275g(0.6 lb) |
| Conduit hole | None |
| Hanging mount(Dome) | None |
