Description

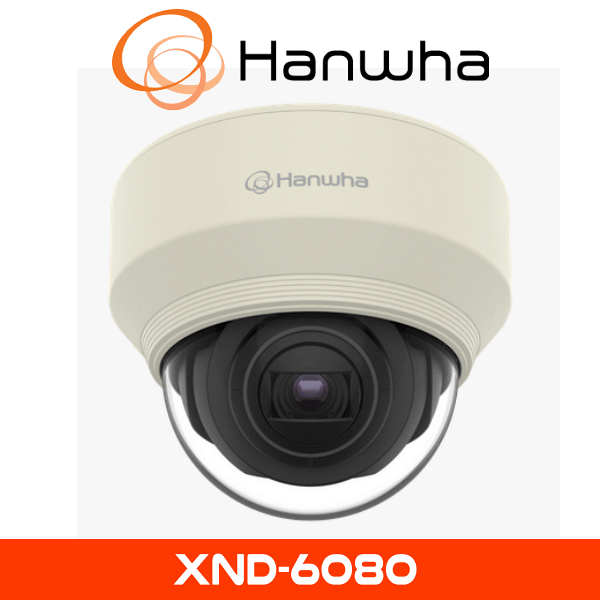

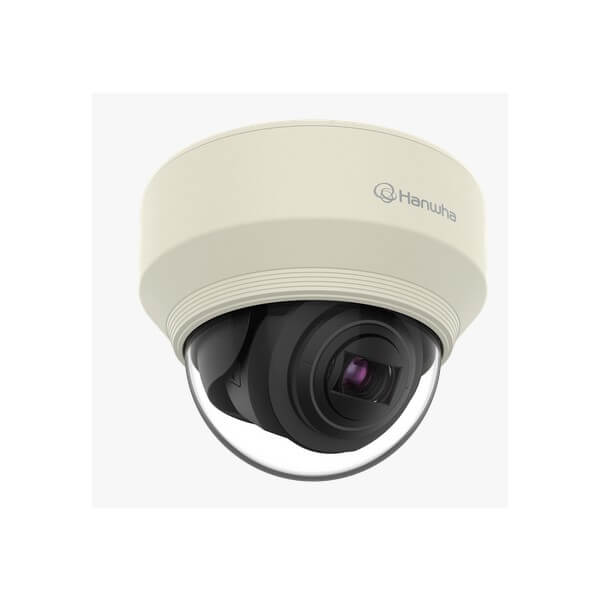

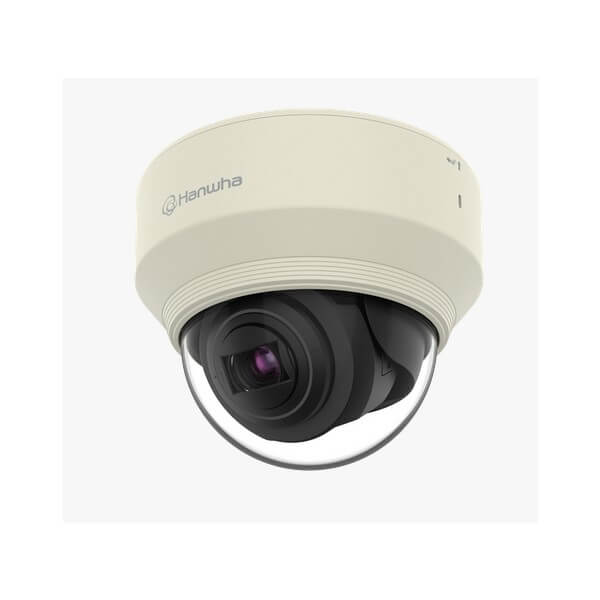

DESCRIPTION TO Hanwha XND-6080 CCTV Camera
The Hanwha XND-6080 is designed for indoor professionals seeking compact, intelligent, and high-quality surveillance. Whether you’re securing a bank lobby, retail floor, or corporate reception, this model guarantees detailed, wide-angle coverage with crisp Full HD streaming. With advanced chipset technology, cybersecurity enhancements, and intelligent analytics, this Hanwha CCTV camera ensures round-the-clock monitoring of your critical indoor spaces.
2MP Compact Indoor Dome Surveillance
The Hanwha XND-6080 is a premium indoor fixed dome CCTV camera offering exceptional full HD surveillance for professional indoor security setups. Powered by the cutting-edge Wisenet X chipset, the Hanwha XND-6080 delivers 2MP resolution at 60fps, making it ideal for monitoring high-activity areas like banks, malls, offices, and institutions across Dubai, Abu Dhabi, and the UAE.
150dB WDR for Superior Imaging
The Hanwha XND-6080 As part of the Hanwha CCTV range — previously known as Samsung CCTV — this model provides superior clarity even in difficult lighting, thanks to its 150dB WDR. The fixed 2.8mm lens offers a wide-angle view, suitable for covering lobbies, hallways, and retail zones with minimal blind spots.
WiseStream II for Bandwidth Efficiency
The Hanwha XND-6080 Its intelligent features like tampering detection, motion analytics, defocus alerts, and hallway view ensure continuous, smart surveillance. Supporting WiseStream II compression and H.265/H.264, it reduces bandwidth and storage needs without compromising image quality.
Hanwha Techwin – Trusted Security Legacy
The Hanwha XND-6080, built on the legacy of Samsung CCTV, is a continuation of excellence. With enhanced image sensors, video optimization technologies, and smart integrations, Hanwha Techwin sets new benchmarks in security.
• Max. 60fps@all resolutions (H.265/H.264)
• Day & Night (ICR), WDR(150dB), Defog
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Tampering
• Motion detection, Handover
• Dual slots (Max. 512GB)
• Hallway view, WiseStream II support, IK08
| Video | |
| Imaging Device | 1/2.8″ 2MP CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264 : Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.015 lux(F1.4, 1./30sec) B/W: 0.0015 Lux (F1.4, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for installation USB: Micro USB Type B, 1280×720, for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal |
| Max. Aperture Ratio | F1.4(Wide) ~ F3.6(Tele) |
| Angular Field of View | H: 119.5°(Wide) ~ 27.9°(Tele), V: 62.8°(Wide) ~ 15.7°(Tele), T: 142.1°(Wide) ~ 32.0°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~354° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, DWDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | Not support |
| Serial Interface | Not support |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and E-Mail Notification via E-Mail SD/SDHC/SDXC or NAS recording at Event Triggers Alarm output Handover |
| Audio In | Selectable(Mic in/Line in, Built-in mic), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max. output level: 1Vrms |
| IR Viewable Length | Not support |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area) WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IK08 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE : Max 6.5W 12VDC : Max 6W |
| Mechanical | |
| Color / Material | Ivory / Plastic |
| Product Dimensions / Weight | Ø140.8×113.0mm(Ø5.54×4.45″), 610g(1.34 lb) |
