Description

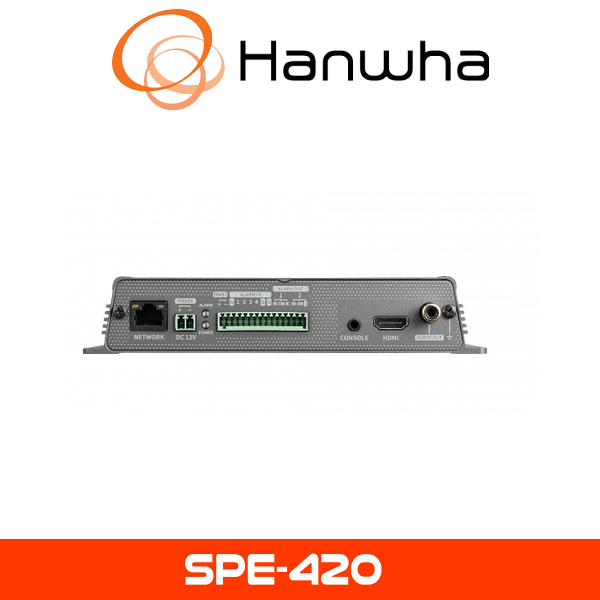

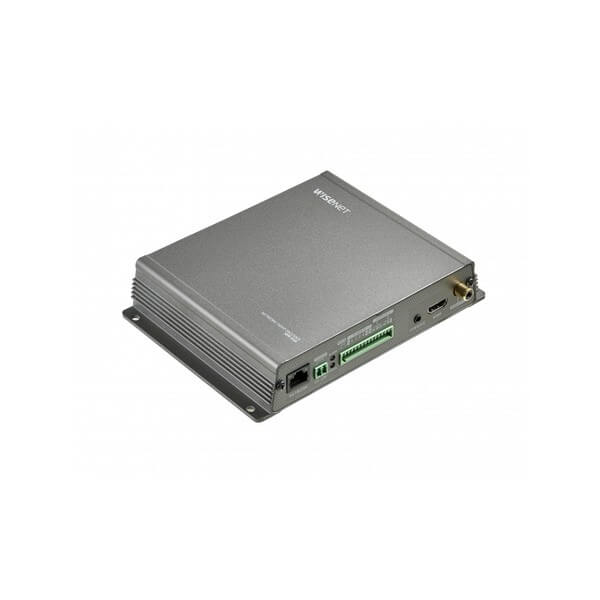

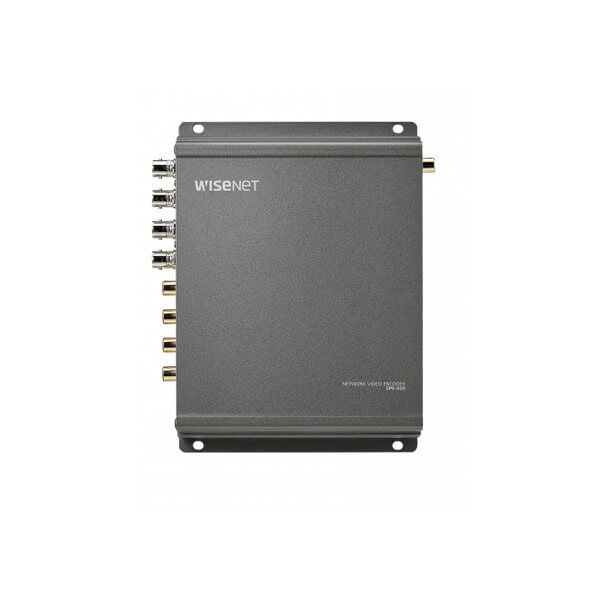

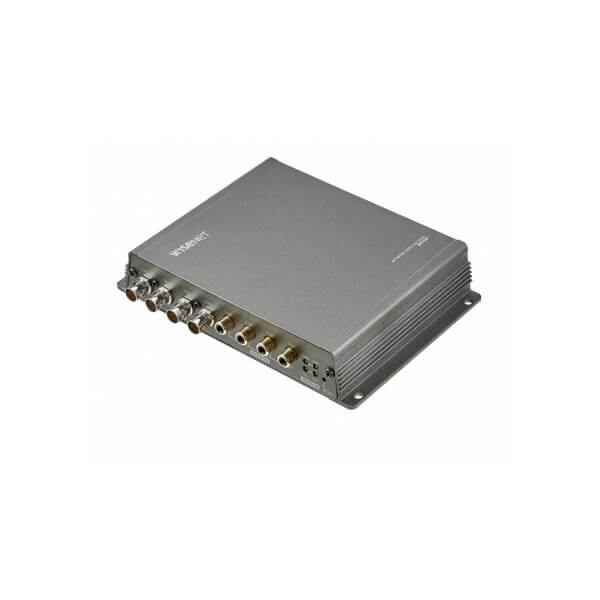

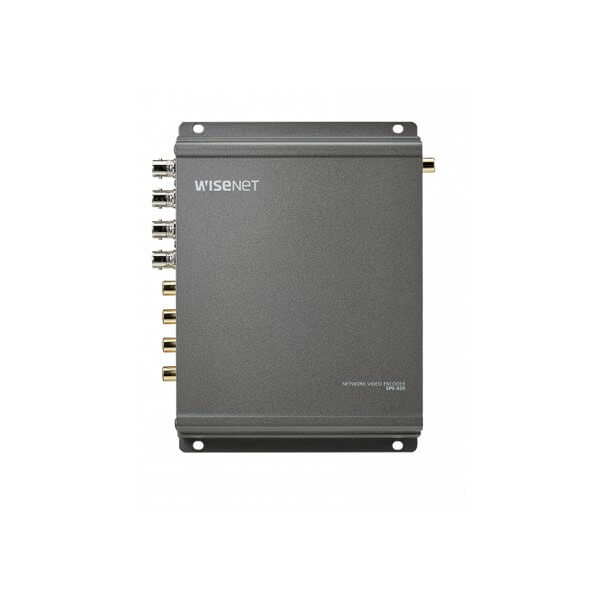

HANWHA SPE-420 4-Channel Network Video Encoder
The HANWHA SPE-420 4-Channel Network Video Encoder represents an essential component within the Hanwha security ecosystem, providing organizations throughout Dubai and the UAE with professional integration capabilities for their analog surveillance cameras. This specialized encoder enables the connection of four analog cameras to IP networks, offering reliable video transmission and management through modern surveillance platforms while preserving existing camera investments in a variety of operational environments.
Professional Integration Capabilities for UAE Security Operations
The HANWHA SPE-420 4-Channel Network Video Encoder delivers significant functionality benefits for organizations across the UAE seeking to implement professional security integration capabilities. By enabling comprehensive IP features for four analog cameras, this solution ensures that legacy equipment can be documented with complete reliability and functionality.
Strategic Applications in Dubai Security Environments
The HANWHA SPE-420 4-Channel Network Video Encoder finds application across diverse security scenarios throughout Dubai and the UAE, delivering strategic value in various operational contexts. For retail environments, the four-channel encoder enables integration of existing analog cameras monitoring entrances, cash registers, merchandise displays, and storage areas, providing coordinated video documentation where it delivers maximum security benefit.
Seamless Integration and Operational Benefits
The HANWHA SPE-420 4-Channel Network Video Encoder integrates seamlessly with Hanwha’s comprehensive security ecosystem, enabling straightforward implementation of professional integration capabilities. The encoder works with Hanwha NVRs (Network Video Recorders), VMS (Video Management Software), and SSM (Security Station Manager), activating network video functionality for four analog cameras within the system.
Cost-Effective Approach and Future-Proofing
For organizations throughout Dubai and the UAE, the HANWHA SPE-420 4-Channel Network Video Encoder offers significant financial advantages through its preservation of existing camera investments. By providing professional integration capabilities for four analog cameras, the 4-channel encoder delivers immediate cost savings compared to complete system replacement when migration to IP capabilities is required. This economic efficiency ensures that security budgets are utilized effectively, maximizing the protection achieved with available resources.
Key Specification
- Maximum resolution: 5MP
- Maximum frame rate: 12fps@5MP
- H.265, H.264, MJPEG codec support
- Multiple streaming (up to 2 profiles per CH)
- 1 RJ-45 10/100 Base-T
Specification
| Video | |
| Input Channel | 4CH BNC, 1.0 Vp-p / 75Ω composite NTSC/PAL |
| Input Signal & Resolution | CVBS, AHD/CVI/TVI (1, 2, 4, 5MP) Auto Detection |
| Video Out | 1 HDMI OUT (4 multi Image, 1920×1080) |
| Operational | |
| Motion Detection | Off / On |
| Privacy Masking | Off / On (4ea rectangular zones) |
| De-Interlacing | support |
| Alarm I/O | 4 Input / 2 Output(1 NO/COM/NC, 1 NO/COM) |
| Alarm Trigger | Motion Detection, Alarm Input, Video Loss, Tampering, Network disconnect |
| Alarm Events | File Upload Via FTP, E-mail |
| Audio I/O | 4 Line Input / 1 Line Output |
| OSD | Title |
| Remote Control Interface | 1ea RS-485(Half Duplex) |
| RS-485 Protocol | SAMSUNG-T, PELCO-P/D |
| Coaxial Control | CVBS(Pelco-C) AHD, TVI, CVI |
| Network | |
| Ethernet | 1 RJ-45 10/100 Base-T |
| Video Compression Format | H.265, H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution | 2560×1920, 2560×1440, 1920×1080, 1280×720, 928×480(N), 928×240(N), 704×480(N), 704×240(N), 640×368, 352×240(N) 928×576(P), 928*288(P), 704×576(P), 704×288(P), 640×368, 352×288(P) |
| Max. Framerate | – Main Stream 5MP : 12fps/CH, 4MP : 15fps/CH, 1080p/720p/WD1/4CIF/CIF : 30fps/CH(N), 25fps/CH(P) – Sub Stream WD1/4CIF : 30fps/CH, 2CIF/CIF/QVGA/QCIF : 30fps/CH(N), 25fps/CH(P) – MJPEG : 2fps @ 640×368, 352×240, SD Camera : 2fps @ 480×240, 352×240 |
| Bitrate Control Method | H.265, H.264 : CBR or VBR |
| Streaming Capability | Multiple Streaming (Up to 2 Profiles per channel) |
| Audio Compression | G.711 u-law |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, ONVIF, Bonjour |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User Access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method | Unicast / Multicast |
| Max. User Access | max. 16 users(4 Users/CH) at Unicast Mode |
| Webpage Languages | English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese, Korean, Hungarian, Greek |
| Web Viewer | Supported OS : Windows 10 or later, Mac OS X 10.13 or later Non-plugin WebViewer Supported Browser : Google Chrome 80 or later,, MS Edge 83 or later, Mozilla Firefox 72 or later, Apple Safari 11.0.1 or later |
| Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API) |
| Compatabile Software & Recoder | SmartViewer, SSM, NVR(Hanwha Techwin, P/X/Q/L series) |
| Environmental | |
| Operating Temperature / Humidity | 0°C ~ +50°C / 20% ~ 80% RH |
| Electrical | |
| Input Voltage / Current | DC12V, PoE(IEEE 802.3af) |
| Power Consumption | MAX : 5W (12V, 0.417A) |
| Mechanical | |
| Color / Material | Dark Gray / Metal |
| Dimension (WxHxD) | (W) 178.0 × (H) 34.0 × (D)127.8(include Connector 148.7)mm |
| Weight | 520g(1.15lb) |
