Description

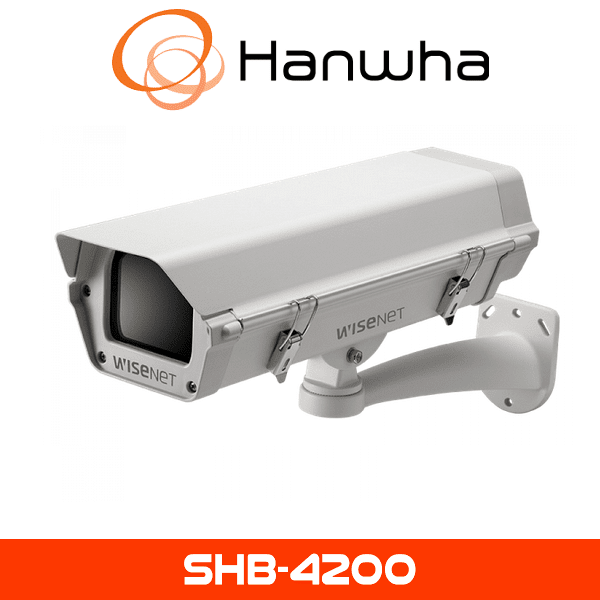

HANWHA SHB-4200 Indoor/Outdoor Fixed Cameras
The HANWHA SHB-4200 is specifically designed to withstand the harsh environmental conditions commonly encountered in Dubai and the UAE. With its robust aluminum construction, this housing provides excellent protection against the region’s intense heat, occasional dust storms, and other environmental challenges. The durable materials ensure long-term performance even when exposed to Dubai’s summer temperatures, protecting valuable camera equipment from premature failure due to environmental stress.
IP66-Rated Protection for Complete Environmental Sealing
One of the most valuable aspects of the HANWHA SHB-4200 is its IP66 ingress protection rating, which provides comprehensive protection against dust and water intrusion. This high level of environmental sealing makes it perfectly suited for Dubai’s occasionally dusty conditions and ensures that cameras remain protected during cleaning operations or unexpected weather events.
Rugged All-Aluminum Construction for Maximum Durability
The SHB-4200 features a rugged and compact all-aluminum construction that provides exceptional durability while maintaining a professional appearance. The aluminum material offers an excellent combination of strength, corrosion resistance, and heat dissipation, making it ideal for Dubai’s climate and various installation environments.
Versatile Wall and Ceiling Installation Options
The SHB-4200 is designed for maximum installation flexibility, supporting both wall and ceiling mounting configurations. This versatility allows security system designers in Dubai to optimize camera placement for the best possible coverage without compromising on protection. The housing includes a built-in bracket that simplifies installation and ensures secure mounting in any orientation.
Built-In Bracket for Simplified Installation
The SHB-4200 includes a built-in bracket that streamlines the installation process and ensures secure mounting. This integrated design eliminates the need for separate bracket purchases and simplifies inventory management for security system integrators in Dubai. The bracket is engineered to provide stable support for the housing and camera in any mounting orientation.
Key Features
- Indoor housing for fixed camera
- Side open
- Network/Analogue cameras
- Ivory
Specifications
| Environmental | |
| Operationg Temperature / Humidity | -15˚C ~ +45˚C (+5˚F ~ +113˚F) / Less than 90% RH |
| Storage Temperature / Humidity | None |
| Fan/Heater | None |
| Certification | IP66 |
| Electrical | |
| Input Voltage | None |
| Power Consumption | None |
| Mechanical | |
| Color | Ivory |
| Material | Aluminum |
| RAL code | None |
| Product dimensions / weight | Outside : 148(W)x107(H)x421(D)mm Inside : 84(W)x78(H)x319(D)mm |
| Pan / Tilt / Rotate Range | 0˚~360˚ / 0˚~90˚ |
| Tile thickness | None |
| Mount Screw size | None |
| Max. load | None |
| Conduit hole | None |
| Supported products | Box cameras (Network) ※ For further compatible models, please visit our website or use Toolbox |
