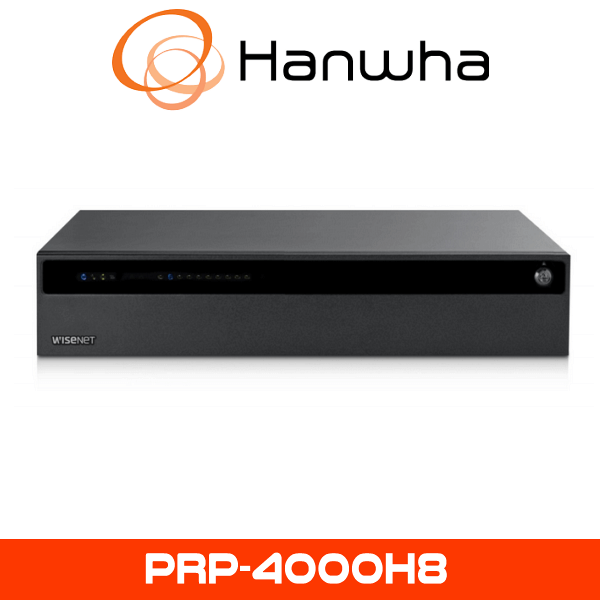

Hanwha PRP-4000H8 Network Video Recorder



Hanwha PRP-4000H8 NVR

Hanwha PRP-4000H8 NVR supports 128-channel 4K video recording, AI-enhanced analytics, H.265 compression for optimized storage, and multi-device remote access. Ideal for smart city surveillance, corporate security, and industrial site monitoring.

Description

Hanwha PRP-4000H8 Network Video Recorder

The Hanwha PRP-4000H8 Network Video Recorder, previously recognized as Samsung CCTV, is a high-performance 128-channel NVR designed for enterprise-level surveillance. Featuring 4K ultra-HD recording, AI-powered analytics, H.265 video compression, and high-capacity storage, this NVR ensures seamless video management and optimal security monitoring for large-scale installations.

4K Ultra-HD Video Recording

The PRP-4000H8 supports 128-channel recording at 4K ultra-HD resolution, providing high-definition video storage for forensic-level investigations and real-time monitoring.

AI-Powered Video Analytics

With built-in AI-driven analytics, the NVR can detect objects, classify humans/vehicles, and trigger alerts for motion detection, intrusion detection, and facial recognition, ensuring proactive security management.

High-Capacity Storage & Redundancy

The PRP-4000H8 is designed for large-scale video retention, featuring multiple HDD slots (up to 16TB per slot) and RAID 5/6 support for data redundancy, failover protection, and continuous surveillance reliability.

Optimized Bandwidth with H.265 Compression

By utilizing H.265 compression technology, the PRP-4000H8 minimizes bandwidth consumption while preserving ultra-HD video quality, allowing for efficient long-term storage and cost-effective video management.

Seamless Integration with Hanwha & ONVIF Devices

This NVR is fully compatible with Hanwha Techwin AI-powered cameras and ONVIF-compliant third-party devices, ensuring seamless integration with leading video management systems (VMS) and existing security infrastructures.

Multi-Device Remote Access

Security operators can monitor and manage video remotely via web-based and mobile applications, providing real-time situational awareness from any location.

Key Specifications:

  • Maximum Channels: 128
  • Max Recording Resolution: 4K Ultra HD
  • Compression Technology: H.265/H.264/MJPEG
  • AI-Powered Analytics: Object classification, motion detection, intrusion alerts, facial recognition
  • Storage Capacity: Supports multiple HDDs (up to 16TB per slot)
  • RAID Support: RAID 5/6 for enhanced data protection
  • Network Connectivity: Ethernet 10/100/1000 Base-T
  • ONVIF Compliance: Compatible with major VMS platforms
  • Remote Access: Web-based and mobile app support
  • Power Source: 100-240V AC
  • Operating Temperature: 0°C to +40°C (32°F to 104°F)

Specifications:

Make Hanwha Vision
Manufacturer Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Category CCTV>Network video recorders (NVRs)
Model code PRP-4000H8
Recording Mode Real Time / Timelapse / Event
Video inputs 72
Inbuilt multiplexer Yes
Type of multiplexer functions Simulatneous Live, Recording, Playback
Recording system HDD
Storage capacity 10 TB
Secondary storage USB
Storage rate 270 ~ 1920 fps
Resolution 12 MP
Audio recording properties Out(1EA Line)
Video motion detection Yes
Instantaneous playback Yes
Operating system Windows 10 IoT Enterprise (SSM preinstalled)
Electrical Specifications Voltage: 100 ~ 240 V AC
Power consumption (W): 350
Physical Specifications Weight (kg): 7.38
Dimensions (mm): 447 x 88 x 409
Environmental Specifications Operating temperature (°C): 5 ~ +40 C (+41 ~ +104 F)
Operating humidity (%): 0 ~ 80
Additional info
  • Intel Xeon 3.6GHz Processor
  • Windows 10 IoT Enterprise on M.2 SSD
  • SSM v2.10.0 Preinstalled
  • Simultaneous All Channel Live Monitoring and Playback
  • Calendar / Event / Bookmark / Smart Search
  • RAID-0 / 1 / 5 / 6 and Hot-Swap Support
  • Dual Track Recording, Active-Active Failover Support
  • Server Clustering Support
  • VGA, HDMI, Display port Support
  • 8 Bay Support
