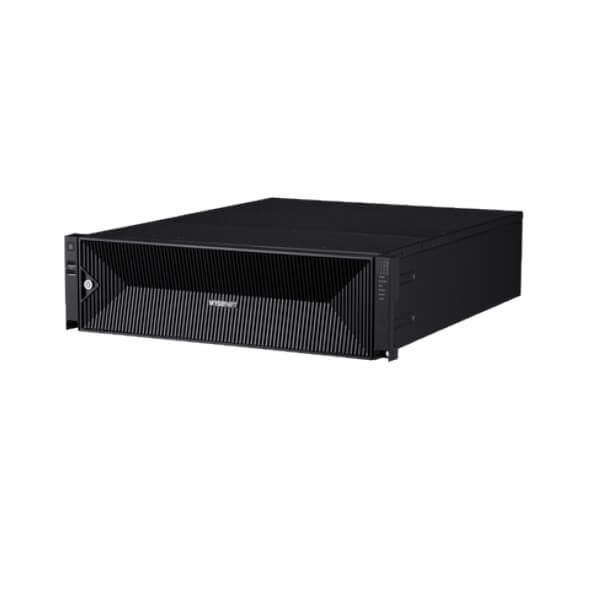

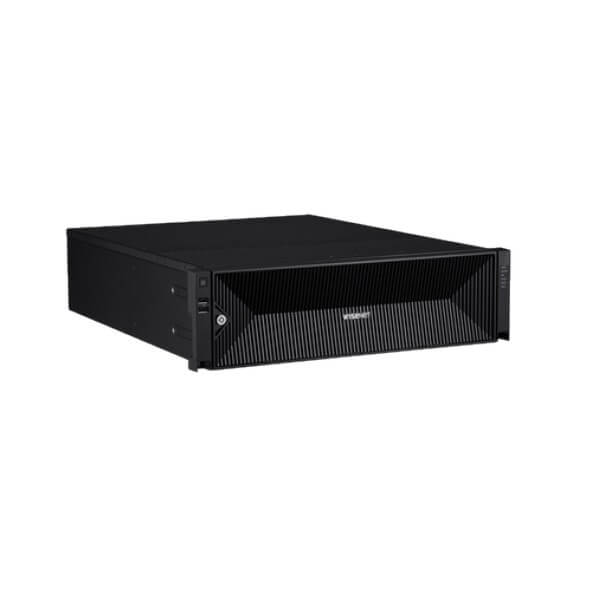

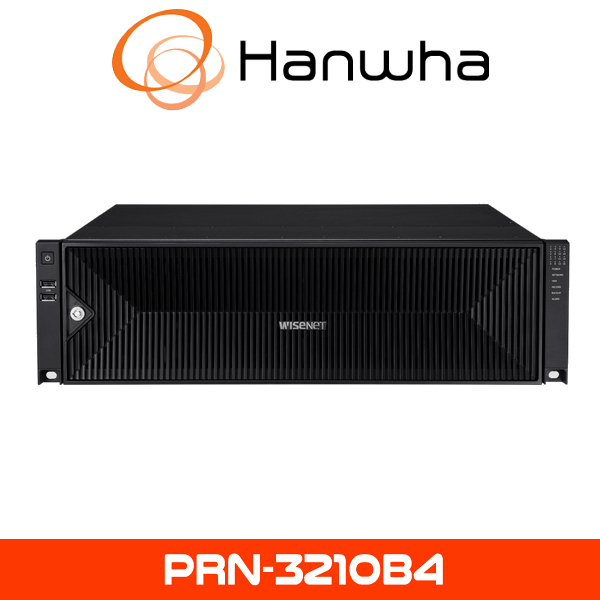

Hanwha PRN-3210B4 Network Video Recorder (NVR)
The Hanwha PRN-3210B4 Network Video Recorder, previously recognized as Samsung CCTV, is a high-performance 32-channel NVR designed for enterprise-level surveillance. Featuring 4K ultra-HD recording, AI-driven analytics, and H.265 video compression, this NVR delivers efficient video storage and advanced security monitoring.
4K Ultra-HD Video Recording
The PRN-3210B4 supports 32-channel recording with 4K ultra-HD resolution, ensuring detailed video capture for forensic investigations. It is compatible with Hanwha AI-enabled cameras, offering intelligent object recognition and analytics-driven security monitoring.
AI-Powered Video Analytics
Integrated AI-driven analytics enhance security management with features such as motion detection, object classification, intrusion alerts, and facial recognition, reducing false alarms and improving situational awareness.
Optimized Storage with H.265 Compression
Utilizing H.265 compression technology, the PRN-3210B4 optimizes bandwidth and extends video storage capacity, allowing for longer retention periods while maintaining high-quality video output.
Seamless Integration with Hanwha & ONVIF Devices
This NVR is fully compatible with Hanwha Techwin cameras and ONVIF-compliant third-party devices, ensuring smooth integration with existing video management systems (VMS) and security infrastructures.
Multi-Device Remote Access
With web-based and mobile remote access, security teams can monitor live feeds, playback recordings, and manage security alerts from any location, ensuring real-time situational awareness.
High-Capacity Storage & Redundancy
The PRN-3210B4 supports multiple HDD slots (up to 10TB per slot) for extensive video storage, along with RAID support for data redundancy and failover protection.
Key Specifications:
- Maximum Channels: 32
- Max Recording Resolution: 4K Ultra HD
- Compression Technology: H.265/H.264/MJPEG
- AI-Powered Analytics: Motion detection, intrusion alerts, object recognition, face detection
- Storage Capacity: Supports multiple HDDs (up to 10TB per slot)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
- Remote Access: Web-based and mobile app support
- RAID Support: RAID 5/6 for enhanced data protection
- Power Source: 100-240V AC
- Operating Temperature: 0°C to +40°C (32°F to 104°F)
Specifications:
| Display | ||
| Network camera | Inputs | Max. 32CH |
| Resolution | 32MP ~ CIF | |
| Protocols | Wisenet, ONVIF | |
| Decoding | Local Display | [Dual Display]
HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920×1080 (60Hz) |
| Multi Screen Display | [Local Monitor] 1/ 2H/ 2V/ 3V/ 4/ 8/ 9/ 13/ 16/ 25/ 36/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps),
720P(960fps), D1(960fps) |
|
| Performance | ||
| Operating System Embedded | Linux | |
| Record | Compression | H.265, H.264, MJPEG, WiseStream(H.265, H.264) |
| Recording Bandwidth | Max. 400Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | Playback Bandwidth | Max. 64Mbps(32CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 80CH(Local 32CH, Remote 16CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 16ea(Max. 160TB, Non-RAID mode), Hot swap | |
| External | iSCSI storage | |
| RAID | RAID-5/6(Array Size : 8 HDD x 2 Array) | |
| Backup | File backup | BU/Exe(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-
S), SUNAPI(Server, Client) |
|
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio Input/Output | 32 CH(network) | |
Compression G.711, G.726, AAC(16/48KHz)
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS |
|
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon)
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| Front Indicator | HDD, Alarm, Power, Record, Backup, Network | |
| Storage | OK | |
| Reset | Power button | |
| HDD Key Lock | OK | |
| HDMI | 2EA | |
| Audio | Out 1EA | |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Web, Controller (SPC-2000) | |
Language :English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese,
Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese,
Japanese, Thai, Vietnam
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | Max. 285W (972.5 BTU with HDD 16ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440.0 x 132.0 x 571.1mm | |
| Weight | Approx. 13.6Kg(30 lb, HDD not included) | |
| Intelligent Analysis | ||
| AI Search | Object Attribute | Person, Face(with Wisenet AI camera), Vehicle, Lisence plate |
| Face Recognition | Support 100,000 Library (with Wisenet AI Camera) | |
| LPR | English, Number (Wisenet AI, P/X Camera) | |
