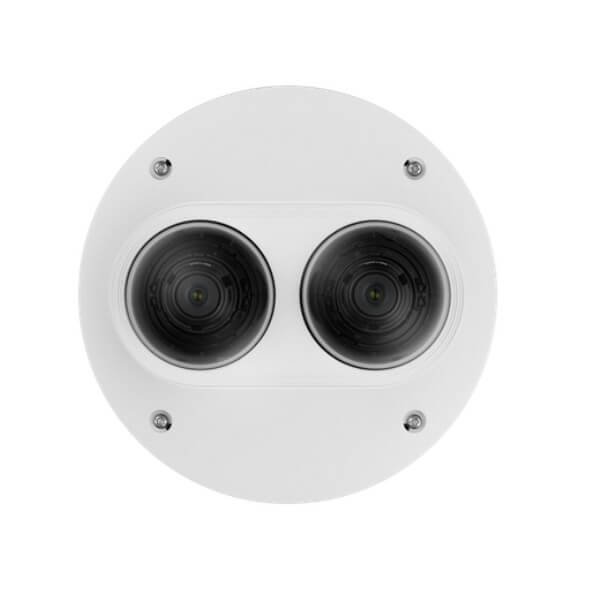

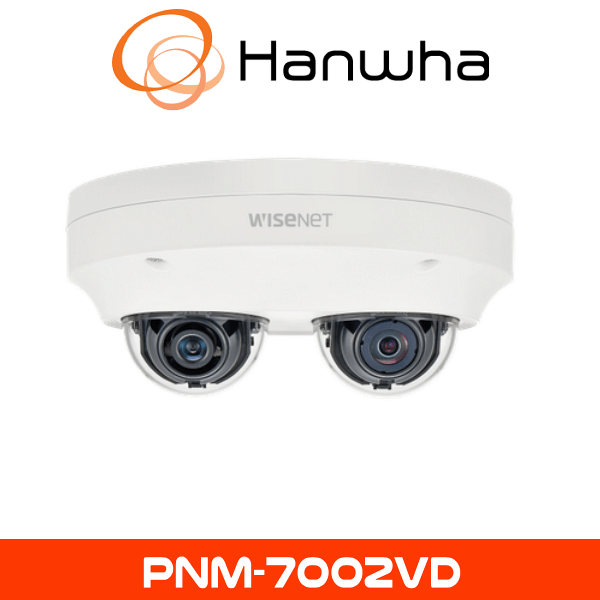

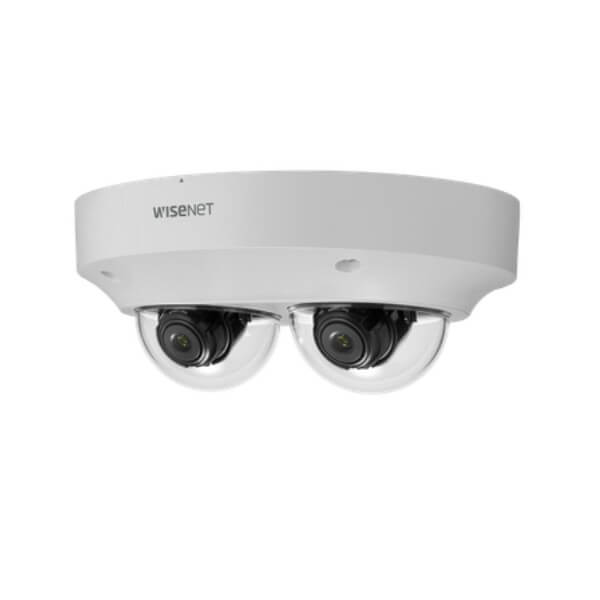

Hanwha PNM-7002VD Multi-Directional CCTV Camera
The Hanwha PNM-7002VD Multi-Directional CCTV Camera, previously recognized as Samsung CCTV, is an advanced surveillance solution designed for comprehensive area monitoring. With dual 5MP sensors, deep learning AI analytics, and a rugged vandal-resistant design, this camera ensures optimal security coverage for a wide range of applications.
Dual 5MP High-Resolution Imaging
Equipped with two 5MP sensors, the PNM-7002VD provides ultra-HD panoramic imaging for clear and detailed monitoring. This setup enables operators to customize viewing angles, ensuring comprehensive coverage with minimal blind spots.
AI-Powered Deep Learning Analytics
The integrated AI-based analytics allow the camera to distinguish between humans, vehicles, and objects, reducing false alarms and improving security response times. Features such as motion detection, intrusion alerts, loitering detection, and virtual line crossing enhance situational awareness.
Multi-Directional Coverage
The PNM-7002VD features multi-directional sensors for customizable coverage angles, making it perfect for wide-area surveillance applications, including parking lots, intersections, and commercial facilities.
Rugged Weatherproof and Vandal-Resistant Housing
Designed for extreme outdoor environments, this camera is IK10-rated for impact resistance and IP66-rated for weatherproof durability, ensuring continuous operation in challenging conditions.
Smart IR Night Vision
The camera’s adaptive IR illumination provides enhanced visibility in low-light conditions, ensuring 24/7 continuous surveillance with improved image clarity at night.
Optimized Bandwidth and Storage Efficiency
Using H.265 video compression, the PNM-7002VD minimizes bandwidth consumption while preserving ultra-HD video quality, allowing for efficient long-term video storage and cost-effective data management.
Easy Installation and Seamless Integration
With Power over Ethernet (PoE) support, the camera simplifies installation by requiring only a single cable for power and data. The ONVIF compliance ensures seamless integration with major video management systems (VMS) for flexible deployment.
Key Specifications:
- Dual 5MP Ultra HD Sensors (2560 × 1920 each)
- AI-powered analytics: Object classification, motion detection, loitering alerts, virtual line crossing, intrusion detection
- Multi-Directional Monitoring: Adjustable angles for full-area surveillance
- Infrared Night Vision: Smart IR for optimal nighttime imaging
- Weatherproof Rating: IP66 for extreme outdoor conditions
- Vandal-Resistant Rating: IK10 for impact protection
- Video Compression: H.265/H.264/MJPEG
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | None |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | None |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for installation |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | None |
| Max. Aperture Ratio | None |
| Angular Field of View | None |
| Min. Object Distance | None |
| Focus Control | None |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | SLA-2M2402D(2MP 2.4mm) SLA-2M2802D(2MP 2.8mm) SLA-2M3602D(2MP 3.6mm) SLA-2M6002D(2MP 6.0mm |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | None |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | None |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | None |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers |
| Audio In | None |
| Audio Out | None |
| IR Viewable Length | None |
| IR Illuminator (Optional) | None |
| Water Removal | None |
| Auto Tracking | None |
| Coaxial Protocol | None |
| Color Palettes | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | None |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Video Quality Adjustment | None |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 2 slots 256GB (One for each channel) |
| Memory | 3GB RAM, 768MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Typical: 12.00W, Max: 12.95W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø197.6x84mm(7.78×3.31″), 1250g(2.76lb) |
| Compatible Conduit hole / Gangbox | 3/4″ |
| Hanging mount(Dome) | SBP-201HMW |
| Skin cover(Dome) | None |
| Weather cap(Dome) | None |
| Power module | None |
| Backbox | None |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | None |
| Observe (63PPM/ 19PPF) | None |
| Recognize (125PPM/ 38PPF) | None |
| Identify (250PPM/ 76PPF) | None |
