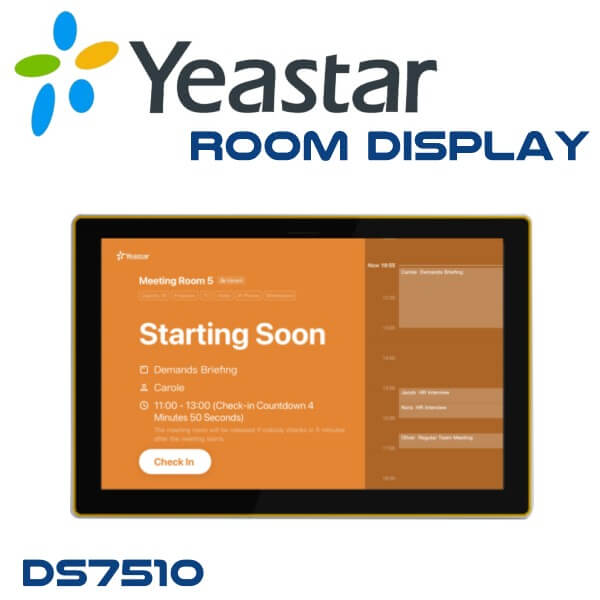

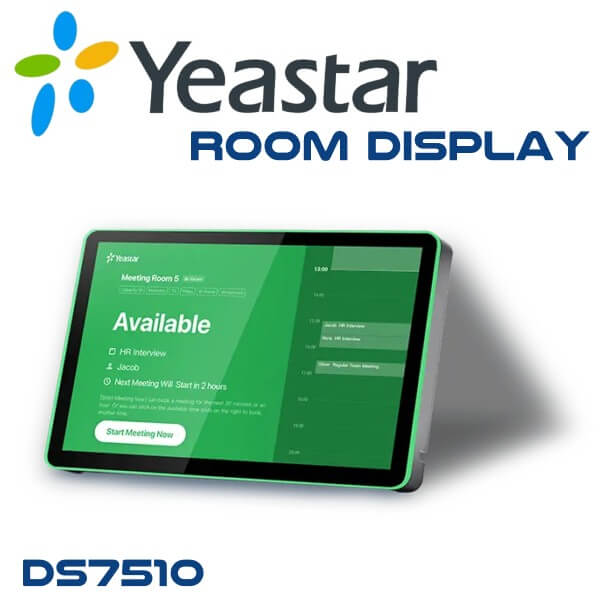

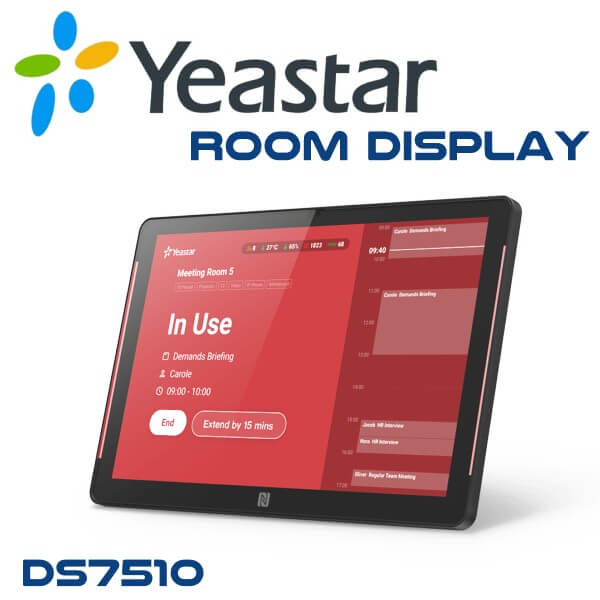

Yeastar DS7510 Workplace Display Dubai

The Yeastar DS7510 Dubai is a premium digital signage that has been designed to work with Yeastar Meeting Room Booking System to display meeting room availability in real-time with traffic light LED indicators. It can be mounted at the entrance of every meeting room to allow for easy location by identification of colors even from a long distance.

Yeastar DS7510 Dubai is easy to operate and requires no technical expertise of its user. Enjoy various functions such as ending meetings instantly, reserving, checking in by simply tapping the screen. Whenever there is an emergency team huddle, a user can just tap the screen to start the meeting immediately. This way, the room status will change accordingly with LED lights switching from green to red so as to prevent disturbance in ongoing meetings and double bookings. What’s more, the Yeastar DS7510 Dubai allows for easy personalization of settings such as adding a company’s logo, setting up a screensaver, as well as customizing LED lights to suit your office preference.

Features:

• Yeastar DS7510 Dubai is managed and monitored remotely by Yeastar Meeting Room Booking System
• Sync with the System to display the latest meeting schedules
• Yeastar DS7510 Dubai allows you to customize any 3 colors to signal meeting room status
• 10.1” LCD touch screen allows you to start an ad-hoc meeting, check in, extend, and end meetings with just a few taps
• Hide/show meeting topic/organizer flexibly
• Yeastar DS7510 Dubai comes with built-in LoRaWAN® Gateway module that  works with Yeastar People Counting Sensor and Room Comfort Sensor to display headcount, room temperature, humidity, CO2, and TVOC in real-time*
• Yeastar DS7510 Dubai significantly saves energy: built-in ambient light sensor and proximity sensor automatically adjust the screen’s brightness according to external light conditions and turn off the screen when no one is detected nearby
• Yeastar DS7510 comes with embedded NFC for ID Identification & contactless meeting check-ins
• Plug-and-play PoE or DC power

Technical Specs

• Model
  Room Display : DS7510-470M/868M/915M
• Display
  • Touch Screen : 10.1-inch TFT LCD touch screen
  • Resolution :1280 x 800 pixels
  • Active Area : 216.96 (L) x 135.6 (H) mm
  • Aspect Ratio : 16:10
  • LED : 3-color side LED indicators
• Connectivity
  • Wi-Fi
    • IEEE 802.11 b/g/n, 2.4GHz
    • IEEE 802.11a/n/ac, 5 GHz
    • WPA2-PSK and WPA2-EAP support
  • Wired Connectivity : One 10M/100M/1000M Ethernet port
  • Bluetooth : Bluetooth 5.0
  • System : Android 11.0
  • LoRaWAN Gateway Module Semtech SX1262 LoRa Chip
• Power
  • 802.3af Power over Ethernet (PoE)
  • DC : 12V/1A
• Sensors & NFC
  • Proximity Sensor Detection distance : 1 m (max.)
  • Ambient Light Sensor
  • 5 brightness level adjustment
  • Detection range : 1572 lux (max.)
  • NFC Embedded NFC module
• Dimension & Weight
  • Dimension : 245 (L) x 160 (H) x 18 (D) mm
  • Weight : 0.65 kg
  • Installation : Wall-, glass wall-, or desktop-mounting
• Method
  Mount it on the wall with a stand or attach it using double-faced tape
• Environmental Conditions
  • Operating Temperature : -20°C to +50°C
  • Operating Environment Indoor use only
