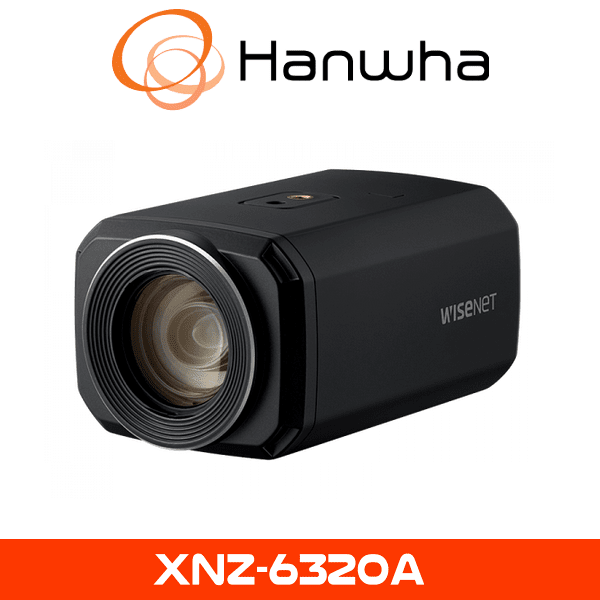

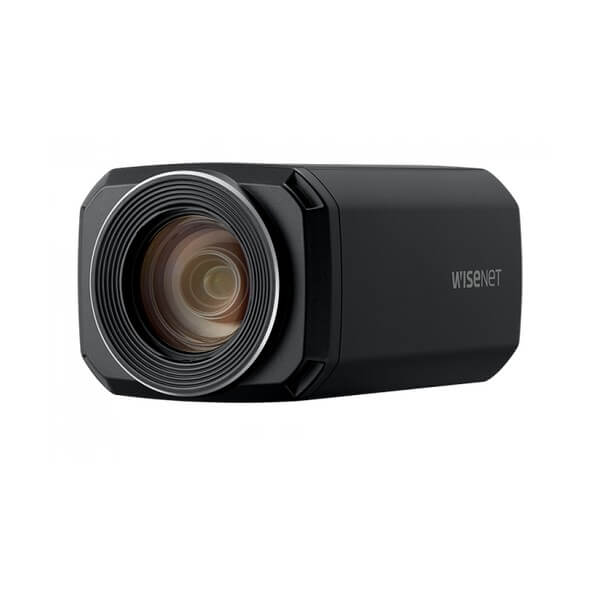

DESCRIPTION TO Hanwha XNZ-6320A Zoom Box Camera
The Hanwha XNZ-6320A CCTV Camera, from Hanwha CCTV Previously Known As Samsung CCTV, is a high-performance 2MP zoom box camera designed for precision surveillance. Available through trusted Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, it features a 4.44~142.6mm motorized varifocal lens with 32x optical zoom, offering a 64.66° to 2.29° field of view for capturing distant details in retail, transportation, or critical infrastructure. Its AI-driven video analytics detect loitering, directional movement, and tampering, reducing false alarms and boosting efficiency.
2MP Clarity with 32x Optical Zoom
The camera’s 2MP CMOS sensor delivers clear footage at 1920×1080, capturing details in retail, transportation, or infrastructure settings. Its 60fps ensures smooth video playback for fast-moving scenes. The 4.44~142.6mm motorized varifocal lens provides a 32x optical zoom (plus 32x digital zoom), enabling precise focus on distant objects, making it ideal for monitoring expansive areas with flexibility.
WiseStream II for Bandwidth Efficiency
WiseStream II compression, paired with H.265/H.264, reduces bandwidth and storage needs by up to 99% compared to H.264 alone, prioritizing key frame areas. This ensures cost-effective operations for large-scale CCTV networks, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE.
SFP Slot for Fiber Optic Connectivity
The inclusion of an SFP slot allows direct fiber optic transmission, enabling long-distance, high-speed connectivity without signal degradation. This is particularly valuable for large installations like transportation hubs or industrial sites, offering integrators flexibility in network design.
120dB WDR for Balanced Imaging
The 120dB WDR balances high-contrast scenes, ensuring details are visible in bright or shadowed areas, such as retail entrances or outdoor plazas, delivering consistent image quality for reliable monitoring.
Discreet and Durable Design
The Hanwha XNV-6081 CCTV Camera is compact and designed for versatile mounting, suitable for both indoor and outdoor use with appropriate housing. Its lightweight build (0.7kg) and robust construction ensure durability in demanding environments, making it a practical choice for various applications.
Digital Image Stabilization
The built-in gyro sensor enables DIS, minimizing blur from vibrations in busy or windy environments, ensuring steady footage for accurate monitoring, particularly in high-traffic areas.
Comprehensive Audio Capabilities
The camera supports two-way audio with one input/output, enabling real-time communication. Audio detection and sound classification identify noises like screams or crashes, while audio playback responds to events, enhancing situational awareness for operators.
Flexible Storage and Connectivity
Dual microSD slots provide up to 512GB of storage for data redundancy. PoE and 12V DC power options simplify installation, while ONVIF compatibility ensures integration with third-party systems. The SFP slot and RJ-45 port offer versatile connectivity, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE.
Key Specifications
- Imaging Device: 1/2.8″ 2MP CMOS sensor
- Resolution: 2MP (1920×1080) at up to 60fps
- Lens: 4.44~142.6mm (32x) motorized varifocal lens
- Field of View: Horizontal: 64.66° (wide) to 2.29° (tele); Vertical: 38.36° to 1.29°
- Minimum Illumination: Color: 0.05 Lux (F1.6, 1/30sec); B/W: 0.005 Lux (F1.6, 1/30sec)
- Wide Dynamic Range: 120dB WDR
- Compression: H.265, H.264, MJPEG with WiseStream II support
- Storage: Dual microSD/SDHC/SDXC up to 512GB
- Analytics: Video analytics (loitering, directional detection, fog detection, tampering, motion detection, virtual line/area, enter/exit, shock detection), audio detection, sound classification

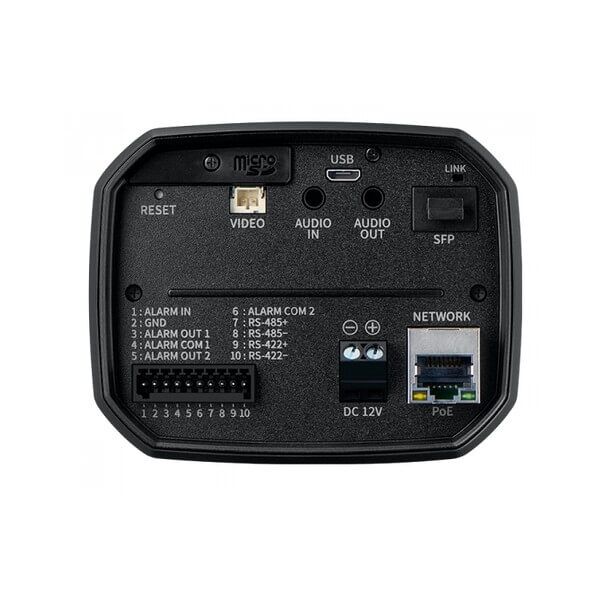

- Connectivity: RJ-45 (10/100BASE-T), 1 SFP slot for fiber optic transmission
- Power: PoE (IEEE802.3af), 12V DC; Max 12.0W (PoE), 10.5W (12V DC)
- Audio: 1 input/1 output, two-way audio support, audio playback
- Dimensions: 81.5 x 67.0 x 165.0mm
- Weight: 0.7kg
- Operating Temperature: -10°C to +55°C
Specifications
| Video | |
| Imaging Device | 1/2.8″ 2MP CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux (1/30sec, F1.6) B/W: 0.005Lux (1/30sec, F1.6) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44 ~ 142.6mm (Optical 32X) (digital 32x, total 1024x zoom) |
| Max. Aperture Ratio | F1.6(Wide) ~ F4.4(Tele) |
| Angular Field of View | H: 64.66˚(Wide)~2.29˚(Tele) / V: 38.08˚(Wide)~1.30˚(Tele) |
| Min. Object Distance | Wide 1.5m(4.92ft) ,Tele 2m(6.56ft) |
| Focus Control | Auto, One shot AF |
| Lens Type | DC auto iris |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, rectangular Support – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | OFF/ LOW/ MID/ HIGH |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
| Serial Interface | RS-485 (Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 1ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at Event Triggers Alarm output Handover(PTZ Preset) |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | RJ-45(10/100BASE-T), SFP(100BASE-FX) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2 slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +60C°(+14°F ~ +140°F)(MAX) Less than 95% RH(Non-condensing) |
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 90% RH(Non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.5W, Typical 4.5W 12VDC: Max 7.0W, Typical 4.0W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | 96 x 76 x 143.5mm(3.78×2.99×5.65″), 578g (1.27 lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 60.7m(199.1ft) / Tele: 1921.3m(6303.4ft) |
| Observe (63PPM/ 19PPF) | Wide: 24.3m(79.6ft) / Tele: 768.5m(2521.4ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.1m(39.8ft) / Tele: 384.3m(1260.7ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.1m(19.9ft) / Tele: 192.1m(630.3ft) |
