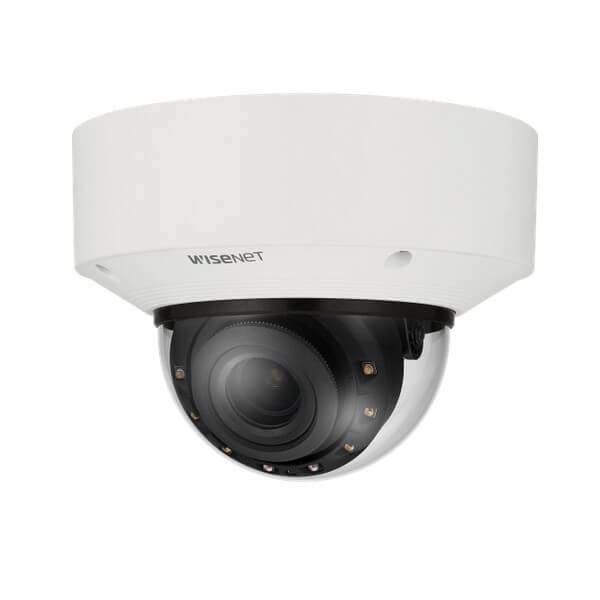

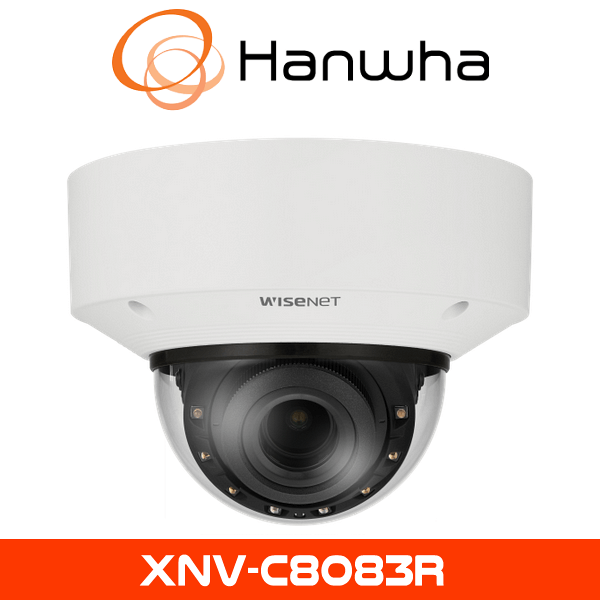

DESCRIPTION TO Hanwha XNV-C8083R AI CCTV Camera
The Hanwha XNV-C8083R AI CCTV Camera, previously recognized as Samsung CCTV, is a high-performance 6MP outdoor dome camera designed for intelligent security monitoring in harsh environments. Featuring deep learning AI-powered analytics, ultra-HD imaging, and smart IR night vision, this rugged camera ensures high-quality surveillance for commercial, industrial, and perimeter security applications.
6MP Ultra-High-Resolution Imaging
The XNV-C8083R is equipped with a 6MP image sensor, delivering detailed video clarity for forensic investigations and real-time security monitoring.
AI-Powered Deep Learning Analytics
The AI-driven object classification allows the camera to distinguish between humans, vehicles, and objects, significantly reducing false alarms. Advanced security features include motion detection, virtual line crossing, intrusion alerts, and loitering detection.
Smart IR Night Vision
With adaptive IR illumination, the XNV-C8083R provides clear night vision up to 40 meters (131 feet), ensuring detailed image capture in complete darkness.
Rugged and Vandal-Resistant Housing
Designed for harsh environments, the camera features an IK10-rated impact-resistant dome and IP67-rated weatherproof housing, ensuring long-lasting durability against vandalism, dust, and extreme weather conditions.
Optimized Bandwidth and Storage Efficiency
Utilizing H.265 video compression, the XNV-C8083R optimizes bandwidth consumption and storage efficiency while maintaining ultra-HD video quality.
Easy Installation and Seamless Integration
Supporting Power over Ethernet (PoE), the camera simplifies installation by requiring only a single cable for power and data transmission. ONVIF compliance ensures integration with leading video management systems (VMS).
Key Specifications:
- Resolution: 6MP Ultra HD (3072 × 2048)
- AI-powered analytics: Human/vehicle classification, motion detection, virtual line crossing, intrusion detection, loitering alerts
- Infrared Night Vision: Up to 40m (131 feet) with smart IR
- Video Compression: H.265/H.264/MJPEG
- Weatherproof Rating: IP67 for extreme outdoor conditions
- Vandal-Resistant Rating: IK10 for high-impact protection
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/1.8″ CMOS |
| Resolution | 3328×1872, 3072×1728, 2592×1944, 2688×1520, 1920×1080,
1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@6MP Max. 5fps) |
| Min. Illumination | Color: 0.04Lux(F1.3, 1/30sec, 30IRE) BW: 0.004Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.4~9.3mm(2.1x) motorized varifocal |
| Max. Aperture Ratio | F1.3(Wide)~F2.15(Tele) |
| Angular Field of View | H: 113°(Wide)~47°(Tele) V: 58°(Wide)~26°(Tele) D: 138°(Wide)~54°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P-iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~75° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones – Color: Gray/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Off / Max Gain / Manual |
| White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) prefer shutter control(Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type: Person/Face/Vehicle(Type: car/bus/truck
/motorcycle/bicycle)/License plate (Loitering/Intrusion/Enter/Exit), Motion detection Sound classification, Shock detection, Virtual area(Appear/Disappear) |
| Business Intelligence | Based on AI engine: People/Vehicle counting, Queue management,
Heatmap |
| Alarm I/O | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time
schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP/SFTP – File upload(video clip): FTP/SFTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| IR Viewable Length | WiseIR 40m(131.23ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP,
NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attacks |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file
export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | HTPM(Hanwha trusted platform module), SDcard partition
encrypt |
| Security Certificate | CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German,
Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot Max. 512GB |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) * Start up should be done at above -20°C 0~100%RH(condensing) Humidity control with AIR vent |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| Certification | IP66/IP67, NEMA4X, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 12.95W, typical 11.2W 12VDC: Max 13.2W, typical 10.8W |

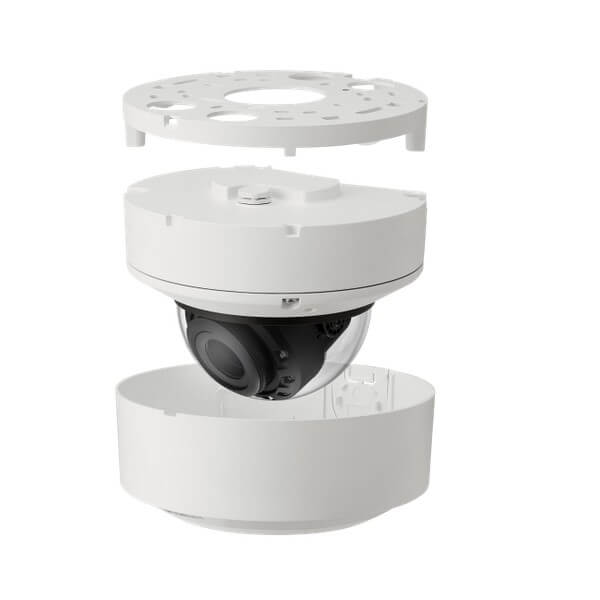

| Mechanical | |
| Color / Material | White / Aluminum Bubble: Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø160x118mm(ø6.30×4.65″), 1450g(3.20 lb) |
| Compatible Conduit hole / Gangbox | 12.7mm(1/2″)(M20) single, double, 4″ octagon, 4″ square |
| Hanging Mount (Dome) | SBP-160HMW1 |
| Backbox | SBV-180BW/WW |
| Ceiling Mount (Assy) | SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS |
| Wall Mount | SBP-300WMW/WMW1, SBP-390WMW2, SBP-160WMW1 |
| Pole Mount | SBD-180PMW, SBP-300PMW2 |
| In-ceiling Mount | SHD-1600FPW/FW |
| Parapet Mount | SBP-300LMW, SBP-156LMW1 |
| Corner Mount | SBP-300KMW1 |
| Cabinet | SBP-300NBW |
| Other Compatible Models | SPB-VAN88W |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 44.1m(144.54ft) / Tele: 153.1m(502.22ft) |
| Observe (63PPM/ 19PPF) | Wide: 17.6m(57.82ft) / Tele: 61.2m(200.89ft) |
| Recognize (125PPM/ 38PPF) | Wide: 8.8m(28.91ft) / Tele: 30.6m(100.44ft) |
| Identify (250PPM/ 76PPF) | Wide: 4.4m(14.45ft) / Tele: 15.3m(50.22ft) |
