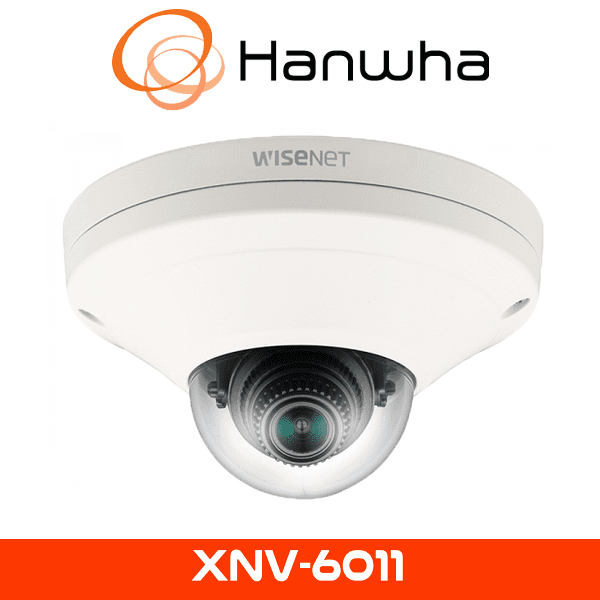

DESCRIPTION TO Hanwha XNV-6011 CCTV Camera
The Hanwha XNV-6011 CCTV Camera is a compact, rugged, and high-performance 2MP outdoor IR dome camera, purpose-built for space-constrained surveillance locations that demand vandal resistance and high-definition clarity. Featuring IK10-rated anti-vandal construction and IP66/IP67-rated weatherproof housing, this Hanwha CCTV model is ideal for outdoor monitoring across Dubai, Abu Dhabi, and the wider UAE.
2MP outdoor IR dome
The Hanwha XNV-6011 CCTV Camera is a compact, rugged, and high-performance 2MP outdoor IR dome camera, purpose-built for space-constrained surveillance locations that demand vandal resistance and high-definition clarity
Wisenet X chipset
Powered by the advanced Wisenet X chipset, the XNV-6011 delivers Full HD 1080p resolution at 60fps, offering smooth and crisp video suitable for areas like retail entrances, hotel exteriors, parking lots, and perimeter security points.
150dB WDR
With a fixed 2.4mm wide-angle lens, it offers an ultra-wide horizontal FOV of 127°, enabling full scene capture with minimal blind spots. Integrated Smart IR LEDs deliver excellent night vision up to 20 meters, and 150dB WDR ensures balanced images in scenes with mixed lighting.
Ultra-Wide View in a Tough Compact Design
When your installation demands wide-angle monitoring in a tight outdoor space, the Hanwha XNV-6011 is your go-to solution. Ideal for entrances, loading docks, staff access zones, or retail storefronts, this camera delivers Full HD performance without drawing visual attention.
Its vandal-proof dome ensures durability, even in public-access or risk-prone environments.
Key Specifications
Video & Imaging
- Image Sensor: 1/2.8” CMOS, 2MP
- Resolution: 1920 x 1080 @ 60fps
- WDR: 150dB
- Min. Illumination:
- Color: 0.015 Lux (F2.0)
- B/W: 0 Lux with IR
- Day/Night: True Day/Night (ICR)
- Noise Reduction: WiseNR II
- Defog: Supported
Lens & Field of View
- Lens Type: Fixed
- Focal Length: 2.4mm
- Field of View:
- Horizontal: 127°
- Vertical: 67.6°
- Diagonal: 150°
Infrared
- IR Range: Up to 20 meters
- Smart IR: Included
Compression & Storage
- Compression Codecs: H.265, H.264, MJPEG
- Smart Compression: WiseStream II
- Streaming: Triple stream
- Edge Storage: microSD/SDHC/SDXC (Up to 512GB)
Audio, Network & Power
- Audio: Built-in microphone, bi-directional support
- Protocols: IPv4/IPv6, HTTPS, SSL/TLS, RTSP, SNMP
- ONVIF: Profiles S, G, T
- Power Supply: PoE (IEEE 802.3af Class 2) or 12VDC
- Operating Temp: -40°C to +55°C
- IK Rating: IK10
- Ingress Protection: IP66 / IP67 / NEMA 4X
- Dimensions: Ø99.0 x 52.6 mm
Video & Imaging
- Image Sensor: 1/2.8” CMOS, 2MP
- Resolution: 1920 x 1080 @ 60fps
- WDR: 150dB
- Min. Illumination:
- Color: 0.015 Lux (F2.0)
- B/W: 0 Lux with IR
- Day/Night: True Day/Night (ICR)
- Noise Reduction: WiseNR II
- Defog: Supported
Lens & Field of View
- Lens Type: Fixed
- Focal Length: 2.4mm
- Field of View:
- Horizontal: 127°
- Vertical: 67.6°
- Diagonal: 150°
Infrared
- IR Range: Up to 20 meters
- Smart IR: Included
Compression & Storage
- Compression Codecs: H.265, H.264, MJPEG
- Smart Compression: WiseStream II
- Streaming: Triple stream
- Edge Storage: microSD/SDHC/SDXC (Up to 512GB)
Audio, Network & Power
- Audio: Built-in microphone, bi-directional support
- Protocols: IPv4/IPv6, HTTPS, SSL/TLS, RTSP, SNMP
- ONVIF: Profiles S, G, T
- Power Supply: PoE (IEEE 802.3af Class 2) or 12VDC
- Operating Temp: -40°C to +55°C
- IK Rating: IK10
- Ingress Protection: IP66 / IP67 / NEMA 4X
- Dimensions: Ø99.0 x 52.6 mm
Specifications
| Video | |
| Imaging Device | 1/2.8″ 2MP CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.055Lux(F2.0, 1/30sec) BW: 0.055Lux(F2.0, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 112˚, V: 62˚, D: 130˚ |
| Min. Object Distance | 0.2m(0.66ft) |
| Lens Type | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~353˚ / 0˚~59˚ / 0˚~353˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones – Color : Gray, Green, Red, Blue, Black, White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers DPTZ preset |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE : Max 6.5W |
| Mechanical | |
| Color / Material | Ivory / Metal |
| Product Dimensions / Weight | Ø112.8×63.7mm(4.44″x2.51″), 420g(0.93 lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 25.9m(84.98ft) |
| Observe (63PPM/ 19PPF) | 10.4m(33.99ft) |
| Recognize (125PPM/ 38PPF) | 5.2m(17.00ft) |
| Identify (250PPM/ 76PPF) | 2.6m(8.50ft) |
