Description

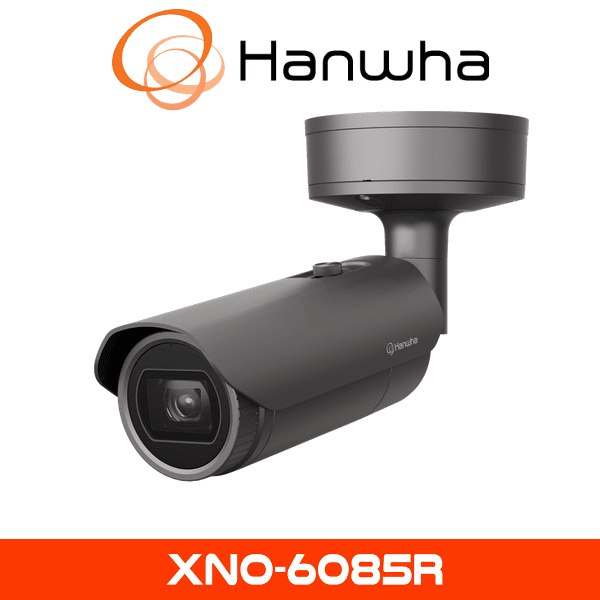

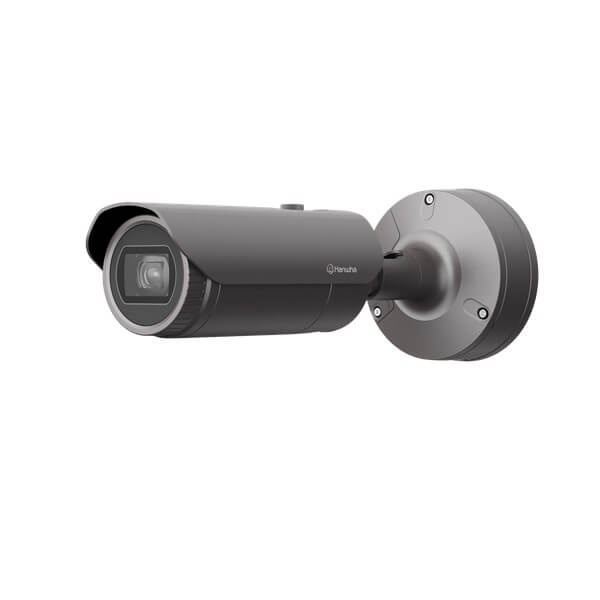

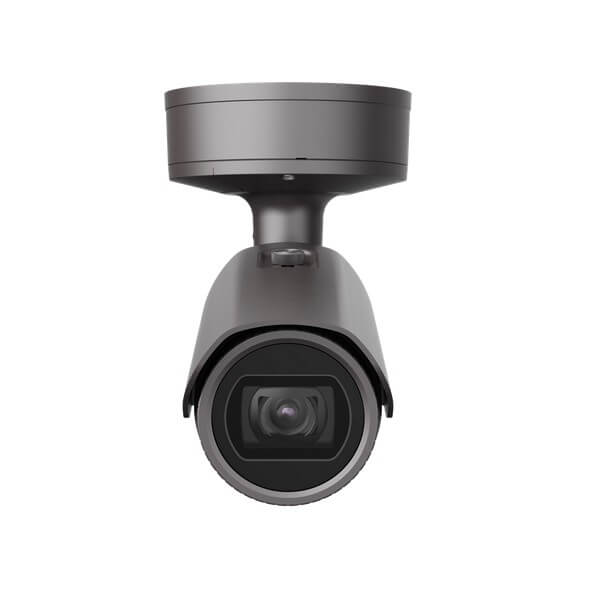

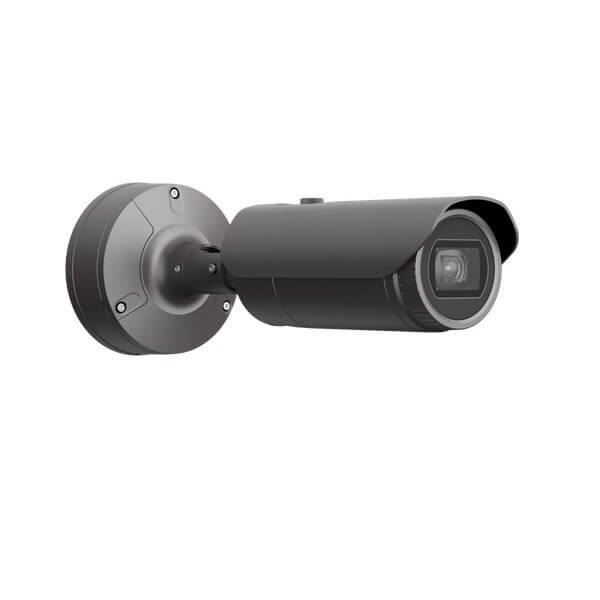

DESCRIPTION TO Hanwha XNO-6085R CCTV Camera
The Hanwha XNO-6085R CCTV camera, part of Hanwha’s premium outdoor surveillance lineup and formerly under Samsung CCTV branding, is a full HD bullet camera built for high-performance environments in Dubai, Abu Dhabi, and throughout the UAE. With a 2MP resolution and 60fps video capture, it delivers crystal-clear video coverage for demanding perimeter and outdoor security installations.
High-Performance HD Imaging
Hanwha XNO-6085R provides 2MP full HD resolution (1920×1080) at up to 60fps, delivering fluid and detailed visuals necessary for mission-critical surveillance tasks.
Extended IR and Low Light Performance
With up to 70m IR range and WiseIR adaptive illumination, this camera ensures visibility even in complete darkness. It’s designed for consistent performance across day and night operations.
Proactive Intelligence with Built-In Analytics
Advanced features include motion detection, face detection, tampering, loitering, and virtual line crossing. These enable fast threat recognition and automated responses.
Environmental Toughness
Housed in a vandal-resistant (IK10) and weatherproof (IP66) casing, the XNO-6085R is built to endure dust, rain, and impact—perfect for harsh outdoor deployments.
Compression & Storage
Equipped with WiseStream II and H.265 technology, the XNO-6085R achieves high compression ratios while preserving video integrity. It supports edge storage via microSD card up to 512GB.
Key Specification
- Imaging Device: 1/2.8″ 2MP CMOS sensor
- Resolution: 1920×1080 @ 60fps
- Lens: 4.44~142.6mm motorized varifocal (32x optical zoom)
- Field of View: Horizontal: 65.7° (wide) to 2.3° (tele)
- IR Distance: Up to 70m with WiseIR
- Minimum Illumination: Color: 0.05 Lux; B/W: 0 Lux (IR ON)
- WDR: 150dB
- Compression: H.265, H.264, MJPEG with WiseStream II
- Storage: microSD/SDHC/SDXC up to 512GB
- Analytics: Motion, face detection, line crossing, tampering, loitering
- Power: PoE (IEEE802.3af), 12V DC; Max 13W
- Connectivity: RJ-45 (10/100BASE-T)
- Audio: 1 input / 1 output, two-way audio support
- Environmental Ratings: IP66, IK10
- Operating Temperature: -30°C to +55°C
- Dimensions: 91.7 x 83.4 x 256.1 mm
- Weight: 1.1kg
Specification
| Video | |
| Imaging Device | 1/2″ 2MP CMOS |
| Effective Pixels | 1945(H)x1097(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.004Lux(F0.94, 1/30sec) BW: 0Lux(F0.94, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.1~16.4mm(4x) motorized varifocal |
| Max. Aperture Ratio | F0.94(Wide)~F2.4(Tele) |
| Angular Field of View | H: 100.0°(Wide)~26.2°(Tele) / V: 54°(Wide)~14.8°(Tele) / D: 116.0°(Wide)~30.0°(Tele) |
| Min. Object Distance | 0.7m(2.30ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | None |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | 70m(229.66) |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital PTZ | Support(Preset, Group) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output DPTZ preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -35°C |
| Storage Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Certification | IP67, IP66, NEMA4X, IK10 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC |
| Power Consumption | PoE : Max 12.95W 12VDC : Max. 11.5W 24VAC : Max. 14.5W |
| Mechanical | |
| Color / Material | Dark gray / Aluminum |
| RAL Code | None |
| Product dimensions / weight | Ø91×388.6mm(3.85″x15.3″), 2.35kg(5.18 lb) |
| Conduit hole | None |
| Hanging mount(Dome) | None |
