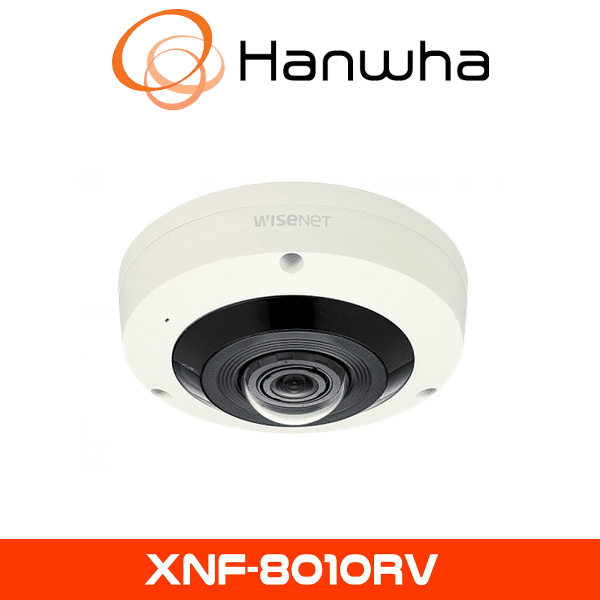

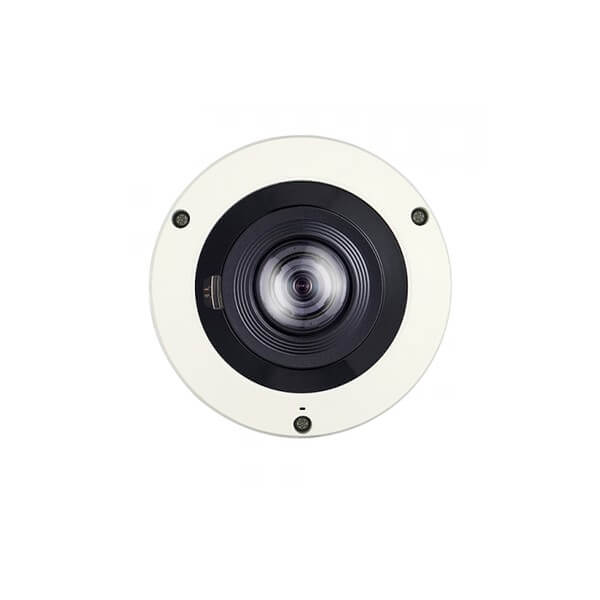

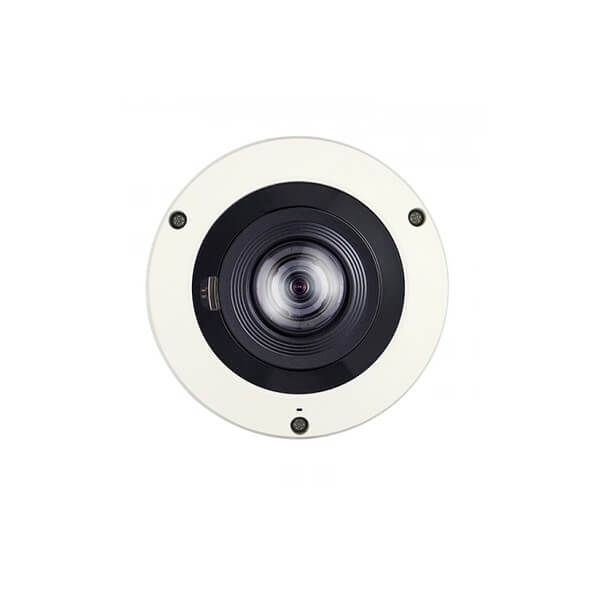

DESCRIPTION TO Hanwha XNF-8010RV Fisheye Camera
Hanwha CCTV, previously known as Samsung CCTV, is a trusted leader in surveillance, delivering innovative solutions for modern security challenges. The Hanwha XNF-8010RV CCTV Camera, part of the Wisenet X series, is a 6MP fisheye camera engineered for comprehensive surveillance with 360° coverage. Available through Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, this camera combines AI-powered analytics, WiseIR night vision, and a rugged design to provide clear visuals and intelligent monitoring. Ideal for retail stores, offices, or public facilities, it ensures high-resolution surveillance across UAE’s diverse environments.
6MP Clarity with 360° Coverage
The camera’s 6MP CMOS sensor delivers high-resolution footage at 2048×2048, capturing fine details across a full 360° field of view. Its 30fps ensures smooth video playback, ideal for dynamic environments like retail or public spaces. The 1.6mm fisheye lens supports multiple viewing modes—fisheye, single panorama, double panorama, and quad view—with onboard dewarping and digital PTZ (8x) for flexible monitoring of large areas, reducing the need for multiple cameras.
WiseIR for Night Vision
Equipped with WiseIR technology, the Hanwha XNF-8010RV CCTV Camera provides illumination up to 15 meters, ensuring clear black-and-white images in complete darkness. This is perfect for retail stores, offices, or sheltered outdoor areas after hours, enhancing 24/7 security coverage.
120dB WDR for Balanced Imaging
The 120dB WDR balances high-contrast scenes, ensuring details are visible in bright or shadowed areas, such as lobbies or retail entrances with mixed lighting. This delivers consistent image quality for reliable monitoring in varied conditions.
WiseStream II for Bandwidth Efficiency
WiseStream II compression reduces bandwidth and storage needs by up to 80%, prioritizing key frame areas. This ensures cost-effective operations for large-scale CCTV networks, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, making it ideal for extensive surveillance systems.
Durable and Weatherproof Design
Rated IP66 for dust and water resistance and IK10 for vandal protection, the Hanwha XNF-8010RV CCTV Camera is built for challenging environments, suitable for both indoor and outdoor use. Its compact design (Ø128.0 x 63.0mm) allows discreet placement, blending seamlessly into professional or public settings, ensuring robust performance without drawing attention.
Digital PTZ and Onboard Dewarping
The camera’s 8x digital PTZ enables zooming into specific areas without mechanical parts, reducing maintenance costs. Onboard dewarping corrects fisheye distortion, providing natural-looking views in panorama or quad modes, enhancing usability for operators monitoring large spaces.
Comprehensive Audio Capabilities
The camera supports two-way audio with a built-in microphone, one input/output, and audio playback. Audio detection and sound classification identify noises like screams or crashes, boosting situational awareness, particularly in high-traffic or sensitive areas.
Flexible Storage and Connectivity
Dual microSD slots provide up to 512GB of storage for data redundancy, safeguarding footage during network disruptions. PoE simplifies installation, delivering power and data through a single cable, while ONVIF compatibility (Profiles S, G) ensures integration with third-party systems. A USB port facilitates setup, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE.
Key Specifications
- Imaging Device: 1/1.8″ 6MP CMOS sensor
- Resolution: 6MP (2048×2048) at up to 30fps
- Lens: 1.6mm fixed fisheye lens
- Field of View: 360° (Horizontal/Vertical: 192°)
- Minimum Illumination: Color: 0.1 Lux (F1.6, 1/30sec); B/W: 0 Lux (IR LED on)
- IR Distance: WiseIR up to 15m (49.2ft)
- Wide Dynamic Range: 120dB WDR
- Compression: H.265, H.264, MJPEG with WiseStream II support
- Storage: Dual microSD/SDHC/SDXC up to 512GB
- Analytics: AI-based object detection (person, face), video analytics (loitering, directional detection, fog detection, tampering, motion detection, virtual line/area, enter/exit), audio detection, sound classification, heatmap, people counting, queue management
- Environmental Ratings: IP66, IK10
- Power: PoE (IEEE802.3af), 12V DC; Max 12W (PoE), 11W (12V DC)
- Connectivity: RJ-45 (10/100BASE-T), USB port for setup
- Audio: 1 input/1 output, built-in microphone, two-way audio support
- Dimensions: Ø128.0 x 63.0mm
- Weight: 0.6kg
- Operating Temperature: -10°C to +55°C
Specifications
| Video | |
| Imaging Device | 1/1.8″ 6M CMOS |
| Resolution | Original view: 2048×2048, 1280×1280, 1080×1080, 960×960, 768×768, 720×720, 640×640, 480×480 Single panorama: 2048×512, 1920×480, 1280×320, 640×160, 704×176 Double panorama: 2048×1024, 1920×960, 1280×640, 640×320, 704×352 Quad view: 2048×1536, 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 704×576 Q1/2/3/4: 1024×768, 800×600, 640×480 |
| Max. Framerate | H.264/H.265 : 30fps/25fps@2048×2048(60Hz/50Hz) MJPEG : Max 15fps |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.1 Lux (F1.6, 1/30sec), BW: 0 Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 714×480(N), 702×576(P) for Installation USB: Micro USB Type B, for installation |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 1.6mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 192˚ / V: 192˚ / D: 192˚ |
| Min. Object Distance | 0.3m |
| Focus Control | Simple remote control focus via network |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | None |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | None |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, Quadrangle zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | None |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital PTZ | Support(Preset, Group) |
| Video Rotation | Flip, Mirror |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | People counting, Queue management, Heatmap |
| Serial Interface | None |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 15m(49.21ft) |
| IR Illuminator (Optional) | None |
| Water Removal | None |
| Auto Tracking | None |
| Coaxial Protocol | None |
| Color Palettes | None |
| Radiometry | |
| Temperature Detect Range | None |
| Temperature Accuracy | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Temperature Detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SRTP(Unicast) |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2007 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 12.95W 12VDC: Max 12W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| RAL Code | None |
| Product Dimensions / Weight | Ø146×65.8mm(Ø5.75×2.59″), 785g(1.73 lb) |
| Compatible Conduit hole / Gangbox | None |
| Hanging Mount (Dome) | None |
| Skin Cover (Dome) | None |
| Weather Cap (Dome) | None |
| Power Module | None |
| Backbox | None |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | None |
| Observe (63PPM/ 19PPF) | None |
| Recognize (125PPM/ 38PPF) | None |
| Identify (250PPM/ 76PPF) | None |
