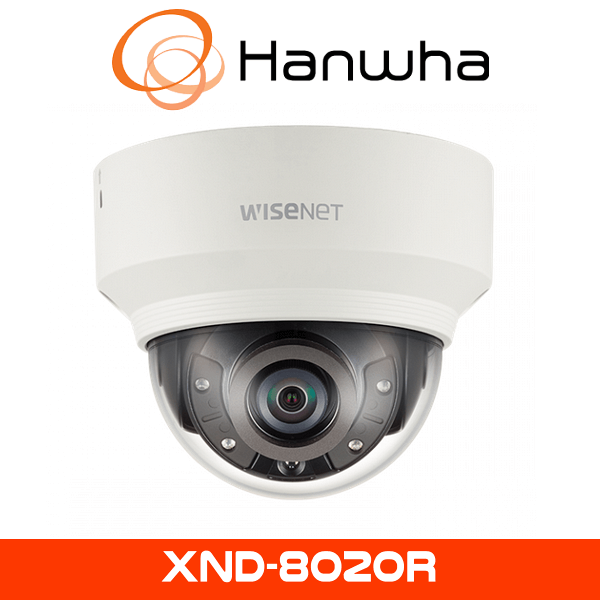

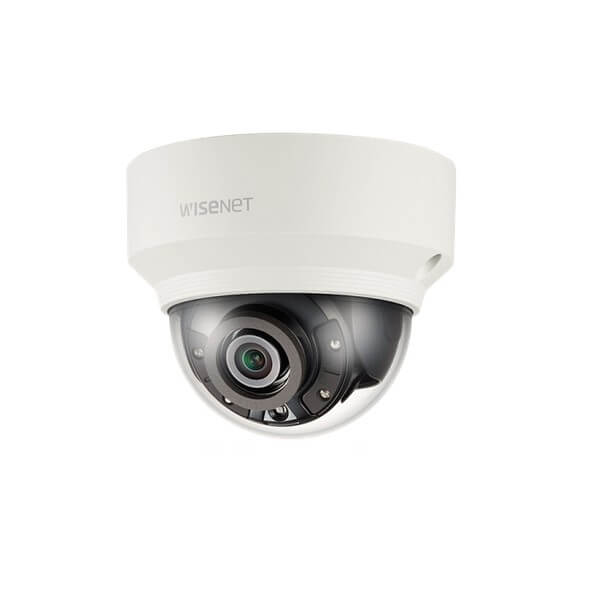

DESCRIPTION TO Hanwha XND-8020R CCTV Camera
The Hanwha XND-8020R CCTV Camera offers high-resolution video, wide-angle coverage, intelligent analytics, and robust low-light performance — all wrapped in a sleek indoor dome design. Ideal for professional, institutional, and commercial use across the UAE, this model provides outstanding performance and reliability with minimal complexity.
5MP Clarity with Fixed Lens
The Hanwha XND-8020R CCTV Camera is a high-performance 5MP indoor IR dome camera that delivers superior surveillance clarity and intelligent monitoring for indoor environments. As part of the trusted Wisenet X series, it’s engineered for critical security applications such as offices, schools, clinics, and retail areas across Dubai, Abu Dhabi, and throughout the UAE.
150dB WDR for Balanced Imaging
Featuring a 1/2.8” CMOS sensor and delivering up to 2592 x 1944 resolution at 30fps, this Hanwha CCTV device — previously known as Samsung CCTV — ensures high-detail coverage in all lighting conditions. With 150dB Wide Dynamic Range (WDR), WiseNR II digital noise reduction, and built-in Smart IR LEDs with up to 20 meters of night vision, the XND-8020R provides sharp, balanced imagery day and night.
WiseIR for Night Vision
The camera uses H.265/H.264 compression, supported by WiseStream II for enhanced bandwidth savings. With edge storage capabilities, audio support, and ONVIF compatibility, the XND-8020R is easy to integrate into any existing security system in the UAE.
Innovation Continues
Hanwha Techwin carries forward the rich legacy of Samsung CCTV, now delivering more intelligent and efficient surveillance under the Wisenet brand. The XND-8020R benefits from this legacy, offering advanced analytics, compression technologies, and network integration in a robust and compact design.
Key Specifications
- Sensor: 1/2.8” 5MP CMOS
- Max Resolution: 2592 x 1944 (5MP)
- Frame Rate: 30fps at all resolutions
- WDR: 150dB
- Min Illumination:
- Color: 0.1 Lux (F2.0)
- B/W: 0 Lux with IR
- Digital Noise Reduction: WiseNR II
- Defog: Supported
- Lens: Fixed 2.8mm
- Field of View:
- Horizontal: 109.7°
- Vertical: 56.9°
- Diagonal: 135.0°
Specifications
Video | |
Imaging Device | 1/1.8″ 6MP CMOS |
Resolution | 2560×1920, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
Max. Framerate | H.265/H.264: Max.30fps/25fps(60Hz/50Hz) MJPEG: Max.30fps/25fps(60Hz/50Hz) |
Min. Illumination | Color: 0.16Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
Lens | |
Focal Length (Zoom Ratio) | 3.7mm fixed focal |
Max. Aperture Ratio | F1.6 |
Angular Field of View | H: 97.5° / V: 71.9° / D: 126.2° |
Min. Object Distance | 0.4m(1.31ft) |
Focus Control | Fixed |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0°~354° / 0°~67°/ 0°~355° |
Operational | |
Camera Title | Displayed up to 85 characters |
Day & Night | Auto(ICR) |
Backlight Compensation | BLC, HLC, WDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNRV |
Digital Image Stabilization | Support(built-in gyro sensor) |
Defog | Support(built-in optical filter) |
Motion Detection | 8ea, 8point polygonal zones |
Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
Business Intelligence | People counting, Queue management, Heatmap |
Alarm I/O | Input 1ea / Output 1ea |
Alarm Triggers | Analytics, Network disconnect, Alarm input |
Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
Audio In | Selectable(mic in/line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
Audio Out | Line out, Max.output level: 1Vrms |
IR Viewable Length | 30m(98.43ft) |
Network | |
Ethernet | RJ-45(10/100BASE-T) |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 8/16/32/48KHz |
Smart Codec | Manual(5ea area), WiseStreamⅡ |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP (TCP, UDP Unicast) |
Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform |
General | |
Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
Memory | 1024MB RAM, 256MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH |
Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
Certification | IK08 |
Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
Power Consumption | PoE: Max 9.00W 12VDC: Max 8.00W |
Mechanical | |
Color / Material | Ivory / Aluminum |
Product Dimensions / Weight | Ø110.0×90.0mm(Ø4.33×3.54″), 380g(0.84 lb) |
