Hanwha XND-6080V Dome Camera



Hanwha XND-6080V Dome Camera

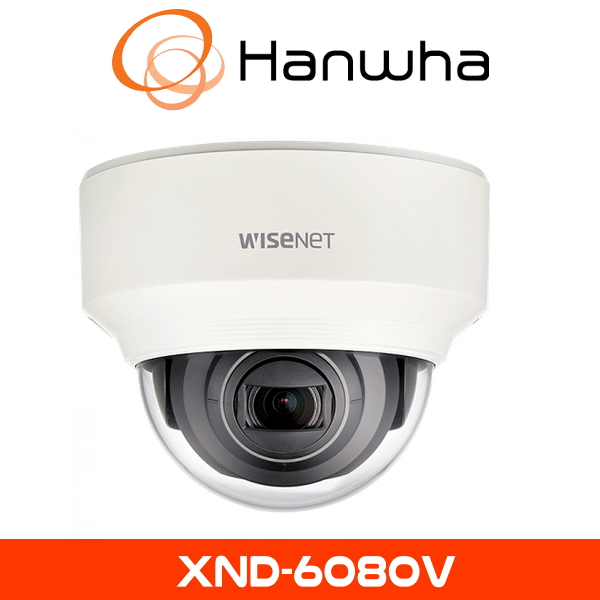

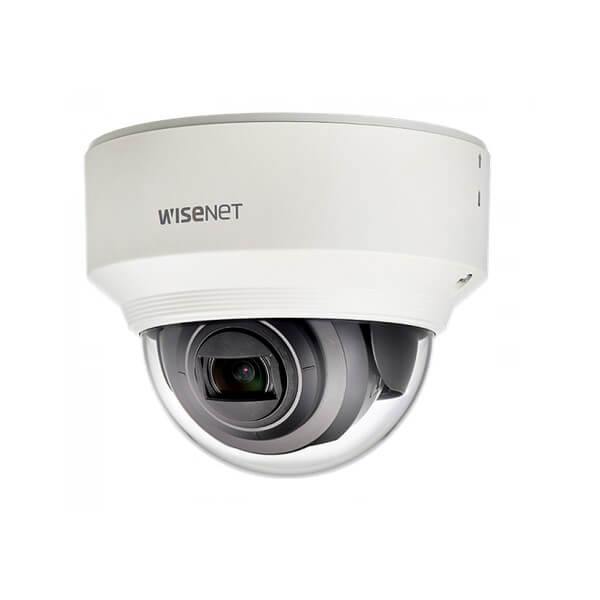

The Hanwha XND-6080V CCTV Camera, from Hanwha CCTV Previously Known As Samsung CCTV, is a high-performance 2MP indoor dome camera designed for effective surveillance. Available through trusted Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, it features a 3.2~10mm motorized varifocal lens with a 109.7° to 33.2° field of view, capturing clear details in retail, offices, or public spaces.

Description

DESCRIPTION TO Hanwha XND-6080V Dome Camera

The Hanwha XND-6080V CCTV Camera, previously known as Samsung CCTV, is a trusted name in surveillance, delivering innovative solutions for modern security challenges. The Hanwha XND-6080V CCTV Camera, part of the Wisenet X series, is a 2MP indoor dome camera engineered for high-performance surveillance. Available through Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, this camera combines advanced video analytics, a motorized zoom lens, and a compact design to provide clear visuals and intelligent monitoring. Ideal for retail stores, offices, or public facilities, it ensures reliable surveillance while maintaining a discreet presence in UAE’s professional environments.

2MP Clarity with Motorized Zoom Lens

The Hanwha XND-6080V camera’s 2MP CMOS sensor delivers clear footage at 1920×1080, capturing details in retail, offices, or public spaces. Its 60fps ensures smooth video playback for dynamic scenes. The 3.2~10mm motorized varifocal lens provides a 3.1x zoom, adjustable remotely, offering a field of view from 109.7° to 33.2°, enabling flexible coverage for wide areas or focused monitoring with precision.

150dB WDR for Superior Imaging

The 150dB WDR balances high-contrast scenes, ensuring details are visible in bright or shadowed areas, such as retail entrances or well-lit offices. This delivers consistent image quality for reliable monitoring in challenging lighting conditions.

WiseStream II for Bandwidth Efficiency

WiseStream II compression reduces bandwidth and storage needs by up to 80%, prioritizing key frame areas. This ensures cost-effective operations for large-scale CCTV networks, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, making it ideal for extensive surveillance systems.

Compact and Durable Design

Rated IP52 for dust resistance and IK08 for impact protection, the Hanwha XND-6080V CCTV Camera is built for high-traffic indoor areas. Its compact dome design (Ø140.8 x 113.7mm) blends seamlessly into ceilings, ensuring discreet surveillance in professional settings like offices or retail spaces, with a lightweight build (0.7kg) for easy installation.

Digital Image Stabilization

The built-in gyro sensor enables DIS, minimizing blur from vibrations in busy environments, ensuring steady footage for accurate monitoring, particularly in high-traffic areas like retail or public facilities.

Comprehensive Audio Capabilities

The Hanwha XND-6080V camera supports two-way audio with one input/output, enabling real-time communication. Audio detection and sound classification identify abnormal noises like screams or crashes, enhancing situational awareness, especially in public or commercial spaces.

Flexible Storage and Connectivity

Dual microSD slots provide up to 512GB of storage for data redundancy, safeguarding footage during network disruptions. PoE and 12V DC power options simplify installation, while ONVIF compatibility ensures integration with third-party systems. A USB port aids setup, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE.

Additional Features for Enhanced Surveillance

  • Hallway View: Rotates the video stream for optimized monitoring in narrow spaces like corridors, improving coverage efficiency.
  • Lens Distortion Correction (LDC): Corrects distortion for natural-looking images, enhancing visual clarity.
  • Defog Detection: Improves visibility in foggy or smoky conditions, ensuring reliable footage in adverse settings.

Key Specifications

  • Imaging Device: 1/2.8″ 2MP CMOS sensor
  • Resolution: 2MP (1920×1080) at up to 60fps
  • Lens: 3.2~10mm (3.1x) motorized varifocal lens
  • Field of View: Horizontal: 109.7° (wide) to 33.2° (tele); Vertical: 61.4° to 18.7°
  • Minimum Illumination: Color: 0.05 Lux (F1.6, 1/30sec); B/W: 0.005 Lux (F1.6, 1/30sec)
  • Wide Dynamic Range: 150dB WDR
  • Compression: H.265, H.264, MJPEG with WiseStream II support
  • Storage: Dual microSD/SDHC/SDXC up to 512GB
  • Analytics: Video analytics (loitering, directional detection, fog detection, tampering, motion detection, virtual line/area, enter/exit, shock detection), audio detection, sound classification
  • Environmental Ratings: IP52, IK08
  • Power: PoE (IEEE802.3af), 12V DC; Max 9.0W (PoE), 7.5W (12V DC)
  • Connectivity: RJ-45 (10/100BASE-T), USB port for setup
  • Audio: 1 input/1 output, two-way audio support
  • Dimensions: Ø140.8 x 113.7mm
  • Weight: 0.7kg
  • Operating Temperature: -10°C to +55°C

Specifications

Video
Imaging Device 1/2.8″ 2MP CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264 : Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.015 lux(F1.4, 1./30sec)
B/W: 0.015 lux(F1.4, 1./30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for installation
USB: Micro USB Type B, 1280×720, for installation
Lens
Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal
Max. Aperture Ratio F1.4(Wide) ~ F3.6(Tele)
Angular Field of View H: 119.5°(Wide)~27.9°(Tele), V: 62.8°(Wide)~15.7°(Tele), T: 142.1°(Wide)~32.0°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type DC auto iris, P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~354° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, DWDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
– Color: Grey/Green/Red/Blue/Black/White
– Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Business Intelligence Not support
Serial Interface Not support
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and E-Mail
Notification via E-Mail
SD/SDHC/SDXC or NAS recording at Event Triggers
Alarm output
Handover
Audio In Selectable(Mic in/Line in, Built-in mic),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max. output level: 1Vrms
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC : 48Kbps at 16KHz
Smart Codec Manual(5ea area)
WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IK08
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE : Max 6.5W
12VDC : Max 6W
Mechanical
Color / Material Ivory / Metal
Product Dimensions / Weight Ø140.8×113.0mm(Ø5.54×4.45″), 714g(1.57 lb)
