Description

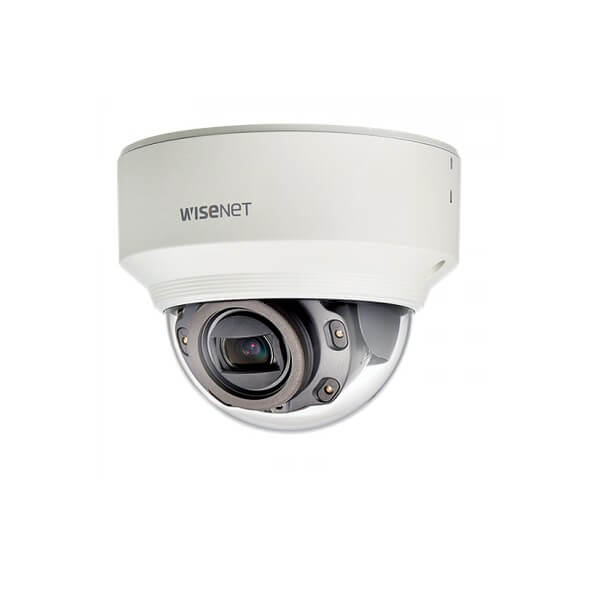

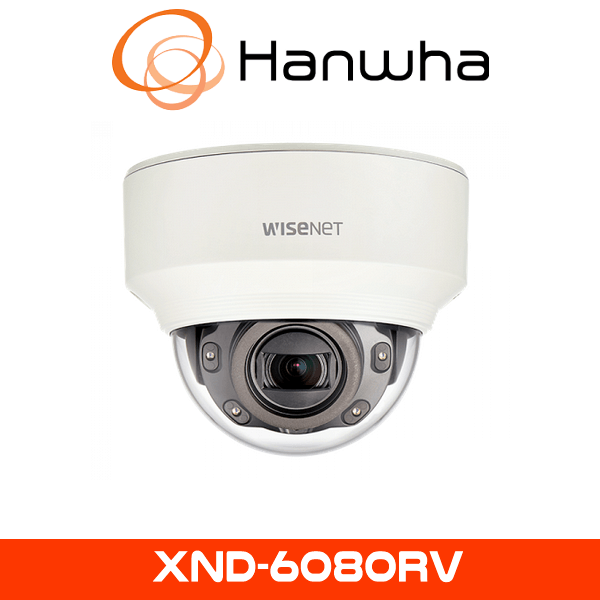

DESCRIPTION TO Hanwha XND-6080RV CCTV
The Hanwha XND-6080RV is designed to withstand harsh treatment and deliver consistent, high-definition surveillance. With IK10-rated dome housing, it resists vandalism and tampering, making it ideal for high-risk indoor locations such as government offices, public transport terminals, and school corridors in the UAE.
2MP Clarity with Fixed Lens
Hanwha XND-6080RV is a professional-grade 2MP indoor vandal-resistant IR dome CCTV camera from the Hanwha Wisenet X series. Built for high-traffic, tamper-prone environments, this rugged dome camera features Full HD resolution, IK10-rated anti-vandal housing, and intelligent video analytics — making it ideal for offices, schools, banks, and public facilities in Dubai, Abu Dhabi, and across the UAE.
150dB WDR for Balanced Imaging
Powered by the advanced Wisenet 5 chipset, the camera supports up to 60fps at 1080p and delivers outstanding image clarity in varied lighting conditions. 150dB Wide Dynamic Range (WDR) and WiseNR II digital noise reduction ensure sharp, balanced video in both high-contrast and low-light environments. The motorized varifocal lens (2.8–12mm) offers flexible field-of-view adjustments, while integrated Smart IR LEDs provide clear night vision up to 50 meters.
WiseIR for Night Vision
With WiseStream II compression, H.265/H.264/MJPEG support, and triple streaming, the XND-6080RV reduces storage and network usage while maintaining video quality. ONVIF compliance, audio support, and edge storage up to 512GB make it easy to deploy in new or existing surveillance infrastructures.
Key Specifications
H3: Video & Imaging
- Sensor: 1/2.8” 2MP CMOS
- Max Resolution: 1920 x 1080
- Frame Rate: Up to 60fps (H.265/H.264)
- Wide Dynamic Range: 150dB
- Min Illumination:
- Color: 0.015 Lux (F1.4)
- B/W: 0 Lux with IR
- Digital Noise Reduction: WiseNR II
- Defog: Supported
- Day/Night: True Day/Night with IR cut filter
- Type: Motorized Varifocal
- Focal Length: 2.8 – 12mm
- Field of View:
- Horizontal: 111.2° – 32.0°
- Vertical: 60.0° – 18.2°
- IR Distance: Up to 50 meters
IR LEDs: Smart IR auto brightness
Specifications
| Video | |
| Imaging Device | 1/2.8″ 2MP CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264 : Max. 60fps/50fps(60Hz/50Hz), MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.015 lux(F1.4, 1./30sec) B/W: 0 Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for installation USB: Micro USB Type B, 1280×720, for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal |
| Max. Aperture Ratio | F1.4(Wide) ~ F3.6(Tele) |
| Angular Field of View | H: 119.5°(Wide)~27.9°(Tele), V: 62.8°(Wide)~15.7°(Tele), T: 142.1°(Wide)~32.0°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~354° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, DWDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and E-Mail Notification via E-Mail SD/SDHC/SDXC or NAS recording at Event Triggers Alarm output Handover |
| Audio In | Selectable(Mic in/Line in, Built-in mic), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max. output level: 1Vrms |
| IR Viewable Length | 30m(98.4ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area) WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C~+60°C(-14°F ~ +140°F)(Max) 0~95%RH(non-condensing) |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IK08 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE : Max 10W 12VDC : Max 9W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Product Dimensions / Weight | Ø140.8×113.0mm(Ø5.54×4.45″), 724g(1.6 lb) |
