Description

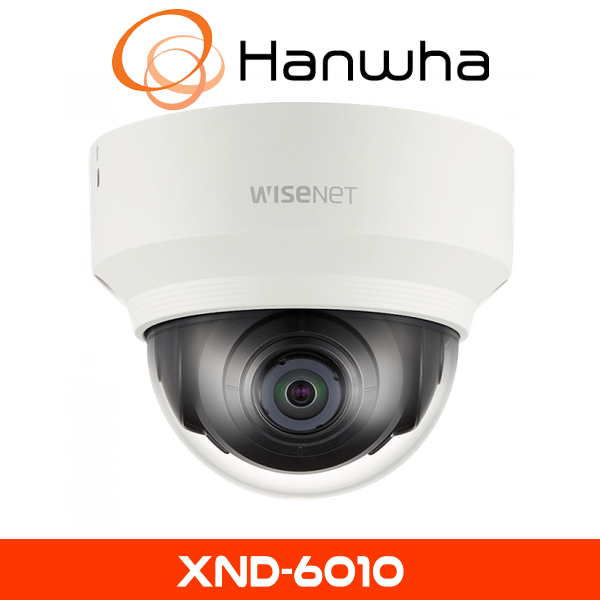

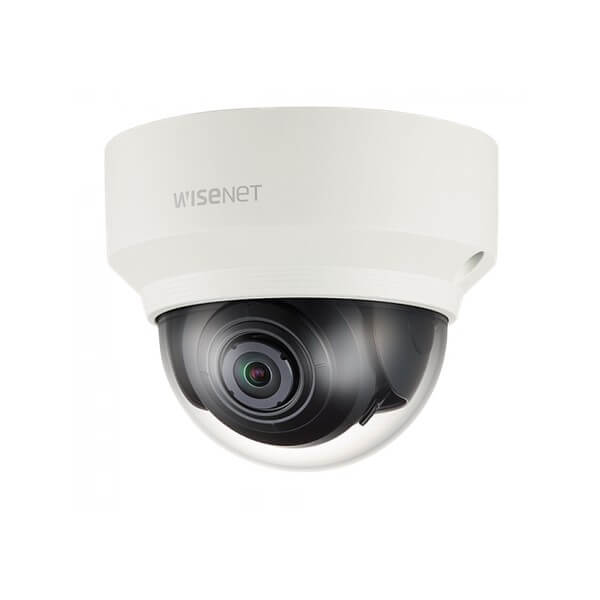

DESCRIPTION TO Hanwha XND-6010 CCTV Camera
The Hanwha XND-6010 CCTV camera is a high-performance, compact dome camera ideal for businesses that need robust indoor monitoring without drawing attention to the camera itself. Its 2MP resolution, combined with smart analytics and audio support, makes it highly versatile for real-world applications in dynamic spaces.
2MP Indoor Dome Surveillance
The Hanwha XND-6010 CCTV Camera is a compact and discreet indoor surveillance solution designed for businesses, retail spaces, and professional environments that demand high-performance video monitoring. As part of Hanwha’s Wisenet X series, the XND-6010 features 2MP full HD resolution, delivering sharp, clear images with exceptional detail for security-critical zones.
150dB WDR for Superior Imaging
Equipped with Hanwha’s advanced Wisenet 5 chipset, this model offers high frame rate streaming (up to 60fps), true day/night functionality, and 150dB wide dynamic range (WDR) for superior visibility even in mixed or challenging lighting conditions. The ultra-compact form factor makes it ideal for environments where discreet monitoring is essential — from corporate boardrooms and healthcare clinics to hotel lobbies and boutique stores in Dubai or Abu Dhabi.
WiseStream II for Bandwidth Efficiency
With H.265/H.264 compression and WiseStream II technology, the Hanwha XND-6010 significantly reduces bandwidth and storage needs without compromising video quality. The built-in microphone supports audio recording, adding an extra layer of situational awareness to your CCTV system.
Powerful Compact Surveillance
The Hanwha XND-6010 CCTV camera is a high-performance, compact dome camera ideal for businesses that need robust indoor monitoring without drawing attention to the camera itself
Surveillance Leadership
If you’ve worked with Samsung CCTV systems in the past, the transition to Hanwha CCTV (now part of Hanwha Techwin) ensures the same reliability with significant upgrades. The Hanwha XND-6010 benefits from the new Wisenet X architecture, offering not just clarity but AI-ready analytics, efficient encoding, and cybersecurity improvements
• Max. 60fps@all resolutions (H.265/H.264)
• Day & Night (ICR), WDR(150dB)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Heatmap
• People counting, Queue management, Tampering
• Motion detection, Handover
• Dual SD slots (Max. 512GB)
• Hallway view, WiseStream II support, IK08
Video | |
Imaging Device | 1/2.8″ 2MP CMOS |
Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
Max. Framerate | H.265/H.264 : Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
Min. Illumination | Color: 0.055 lux(F2.0, 1./30sec) B/W: 0.0055 Lux (F2.0, 1/30sec) |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for installation USB: Micro USB Type B, 1280×720, for installation |
Lens | |
Focal Length (Zoom Ratio) | 2.4mm Fixed |
Max. Aperture Ratio | F2.0 |
Angular Field of View | H: 139°, V: 73°, T: 167° |
Min. Object Distance | 0.4m(1.31ft) |
Focus Control | Fixed |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0˚~354˚ / 0˚~67˚ / 0˚~355˚ |
Operational | |
Camera Title | Displayed up to 85 characters |
Day & Night | Auto(ICR) |
Backlight Compensation | BLC, HLC, WDR, SSDR |
Wide Dynamic Range | 150dB |
Digital Noise Reduction | SSNRⅤ |
Digital Image Stabilization | Support |
Defog | Support |
Motion Detection | 8ea, 8point polygonal zones |
Privacy Masking | 32ea, 4point quadrangle zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
Business Intelligence | People counting, Queue management, Heatmap |
Alarm I/O | Input 1ea / Output 1ea |
Alarm Triggers | Analytics, Network disconnect, Alarm input |
Alarm Events | File upload via FTP and E-Mail Notification via E-Mail SD/SDHC/SDXC or NAS recording at Event Triggers Alarm output Handover |
Audio In | Selectable(Mic in/Line in, Built-in mic), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
Audio Out | Line out, Max.output level: 1Vrms |
Network | |
Ethernet | RJ-45(10/100BASE-T) |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 16KHz |
Smart Codec | Manual(5ea area), WiseStreamⅡ |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(20 users) / Multicast Multiple streaming (Up to 10 profiles) |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
General | |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
Memory | 1024MB RAM, 256MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH |
Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
Certification | IK08 |
Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
Power Consumption | PoE : Max 6.5W 12VDC : Max 6W |
Mechanical | |
Color / Material | Ivory / Plastic |
Product Dimensions / Weight | Ø110.0×90.0mm / 625g |
DORI (EN62676-4 standard) | |
Detect (25PPM/ 8PPF) | 14.4m(47.10ft) |
Observe (63PPM/ 19PPF) | 5.7m(18.84ft) |
Recognize (125PPM/ 38PPF) | 2.9m(9.42ft) |
Identify (250PPM/ 76PPF) |
1.4m(4.7ft) |
