Description

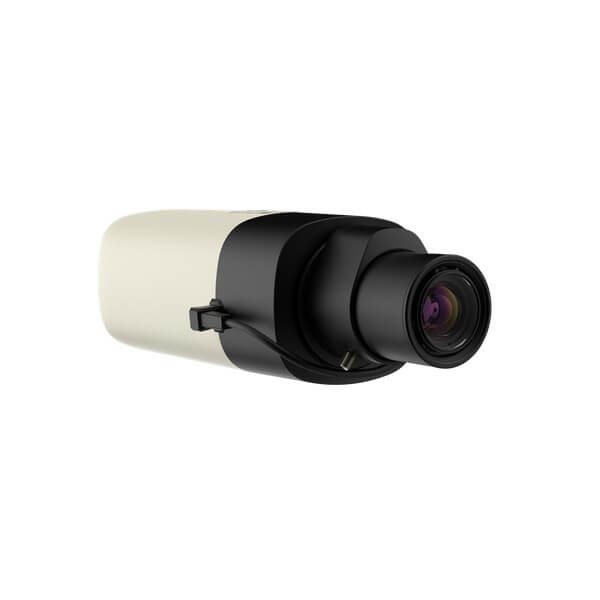

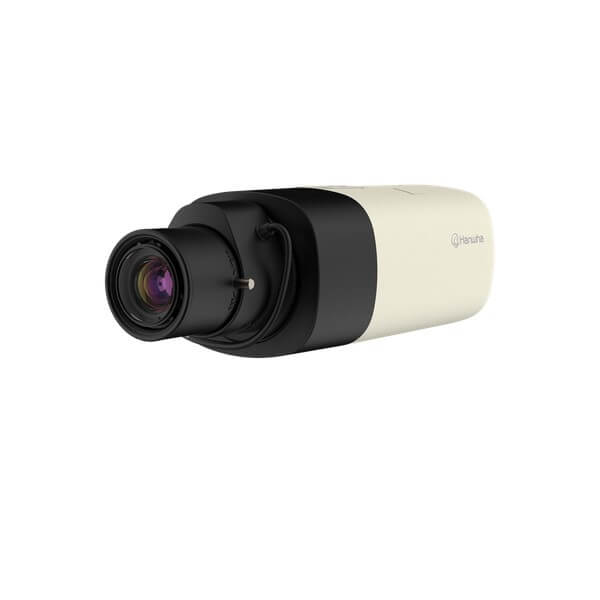

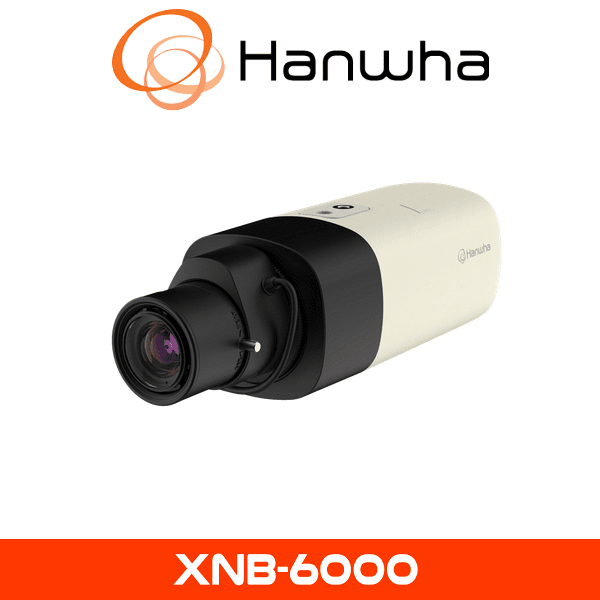

DESCRIPTION Hanwha XNB-6000 Box Camera
The Hanwha XNB-6000 CCTV Camera, from Hanwha CCTV Previously Known As Samsung CCTV, is a high-performance 2MP box camera designed for versatile surveillance. Available through trusted Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, it supports a variety of lenses (sold separately, e.g., C/CS mount with P-Iris), capturing sharp details in retail, offices, or critical infrastructure. Its AI-driven analytics detect loitering, directional movement, and tampering, reducing false alarms and enhancing efficiency.
2MP Clarity with Low-Light Performance
The camera’s 2MP CMOS sensor delivers clear footage at 1920×1080, capturing details in retail or infrastructure settings. Its 60fps ensures smooth video playback for dynamic scenes. With a minimum illumination of 0.01 Lux (color) and 0.001 Lux (B/W), it performs exceptionally in low-light conditions, making it suitable for dimly lit environments like lobbies or corridors without additional lighting.
Flexible Lens Compatibility
The Hanwha XNB-6000 CCTV Camera supports C/CS-mount lenses with P-Iris control (lens sold separately), allowing users to choose from wide-angle to telephoto lenses for specific applications. This flexibility ensures optimal coverage, whether monitoring a small office or a large warehouse, enhancing adaptability for diverse surveillance scenarios.
150dB WDR for Superior Imaging
The 150dB WDR excels in high-contrast scenes, ensuring details are visible in bright or shadowed areas, such as retail entrances or outdoor areas with mixed lighting when paired with housing. This delivers consistent image quality for accurate monitoring in challenging conditions.
WiseStream II for Bandwidth Efficiency
WiseStream II compression reduces bandwidth and storage needs by up to 80%, prioritizing key frame areas. This ensures cost-effective operations for large-scale CCTV networks, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, making it ideal for extensive surveillance systems.
Digital Image Stabilization
The built-in gyro sensor enables DIS, minimizing blur from vibrations in busy environments, ensuring steady footage for reliable monitoring, particularly in high-traffic areas like retail or public facilities, when used with appropriate setups.
Comprehensive Audio Capabilities
The camera supports two-way audio with one input/output, enabling real-time communication. Audio detection and sound classification identify abnormal noises like screams or crashes, enhancing situational awareness, especially in sensitive or crowded environments.
Flexible Storage and Connectivity
Dual microSD slots provide up to 512GB of storage for data redundancy, safeguarding footage during network disruptions. PoE, 12V DC, and 24VAC power options simplify installation, while ONVIF compatibility ensures integration with third-party systems. A USB port and CVBS output aid setup and analog monitoring, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE.
Versatile Design with Optional Housings
The Hanwha XNB-6000 CCTV Camera’s compact design (81.5 x 67.0 x 165.0mm) is optimized for indoor use, but with optional housings, it can be adapted for outdoor environments, offering flexibility for applications ranging from retail to industrial sites. Its lightweight build (0.7kg) simplifies mounting, ensuring ease of installation.
Key Specifications
- Imaging Device: 1/2.8″ 2MP CMOS sensor
- Resolution: 2MP (1920×1080) at up to 60fps
- Lens: Lens sold separately (C/CS mount, P-Iris support)
- Minimum Illumination: Color: 0.01 Lux (F1.2, 1/30sec); B/W: 0.001 Lux (F1.2, 1/30sec)
- Wide Dynamic Range: 150dB WDR
- Compression: H.265, H.264, MJPEG with WiseStream II support
- Storage: Dual microSD/SDHC/SDXC up to 512GB
- Analytics: Video analytics (loitering, directional detection, fog detection, tampering, motion detection, virtual line/area, enter/exit, shock detection), audio detection, sound classification, digital auto-tracking
- Environmental Ratings: Requires housing for outdoor use
- Power: PoE (IEEE802.3af), 12V DC, 24VAC; Max 12.0W (PoE), 10.5W (12V DC)
- Connectivity: RJ-45 (10/100BASE-T), USB port for setup, CVBS output
- Audio: 1 input/1 output, two-way audio support, audio playback
- Dimensions: 81.5 x 67.0 x 165.0mm
- Weight: 0.7kg
- Operating Temperature: -10°C to +55°C
Specifications
| Video | |
| Imaging Device | 1/2.8″ 2MP CMOS |
| Effective Pixels | 1945(H)x1097(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | color: 0.01Lux(F1.2, 1/30sec) BW: 0.001Lux(F1.2 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | None |
| Max. Aperture Ratio | None |
| Angular Field of View | None |
| Min. Object Distance | None |
| Focus Control | Simple focus, manual |
| Lens Type | DC auto iris, P iris |
| Mount Type | C mount, CS mount |
| Optional Lens | SLA-M2890DN(2MP 2.8~9mm), SLA-M2890PN(2MP 2.8~9mm P iris) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | None |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | None |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital PTZ | Support(Preset, Group) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | None |
| Serial Interface | RS-485/422(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output DPTZ preset |
| Audio In | Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming (Up to 10 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -10°C~+55°C (-14°F~+131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 90% RH |
| Certification | None |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class3), 24VAC, 12VDC |
| Power Consumption | PoE: Max. 7.5W 12VDC: Max. 6.5W 24VAC: Max. 9W |
| Mechanical | |
| Color / Material | Black, Ivory / Plastic |
| RAL Code | None |
| Product dimensions / weight | 73.1(W)x66.6(H)x147.8(D)mm(2.88×2.62×5.82″), 420g(0.93 lb) |
| Conduit hole | None |
| Hanging mount(Dome) | None |
| Skin cover(Dome) | None |
| Weather cap(Dome) | None |
| Power module | None |
