Description

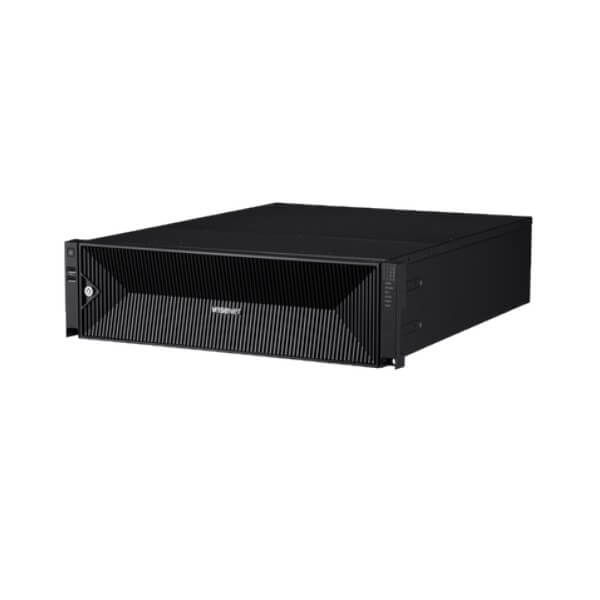

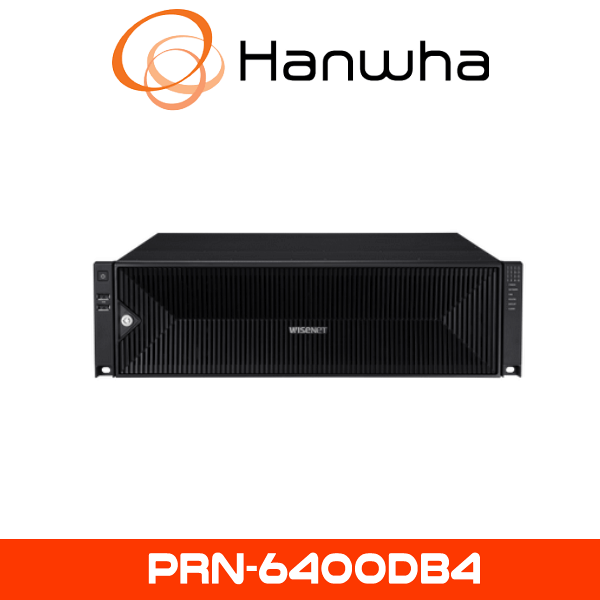

Hanwha PRN-6400DB4 Network Video Recorder (NVR)
The Hanwha PRN-6400DB4 Network Video Recorder, previously recognized as Samsung CCTV, is a high-performance 64-channel NVR designed for enterprise-scale surveillance applications. Featuring 4K ultra-HD recording, AI-driven analytics, and advanced H.265 video compression, this NVR delivers efficient storage, seamless video management, and high-security monitoring.
4K Ultra-HD Video Recording
Supporting 64-channel recording at 4K ultra-HD resolution, the PRN-6400DB4 provides crystal-clear video storage, ensuring detailed footage for forensic investigations and comprehensive surveillance oversight.
AI-Powered Video Analytics
Integrated AI-powered analytics enhance security operations with motion detection, object classification, intrusion alerts, and facial recognition, reducing false alarms and improving situational awareness.
Optimized Storage with H.265 Compression
Utilizing H.265 compression technology, the PRN-6400DB4 significantly reduces bandwidth consumption while extending video storage capacity, ensuring cost-effective, long-term retention of high-resolution footage.
Seamless Integration with Hanwha & ONVIF Devices
This NVR is fully compatible with Hanwha Techwin cameras and ONVIF-compliant third-party devices, ensuring smooth integration with existing video management systems (VMS) and large-scale security infrastructures.
Multi-Device Remote Access
With web-based and mobile remote access, security teams can monitor live video, review footage, and receive security alerts from anywhere, enhancing real-time situational awareness.
High-Capacity Storage & Redundancy
The PRN-6400DB4 supports multiple HDD slots (up to 12TB per slot) for large-scale video storage, along with RAID support for data redundancy, failover protection, and uninterrupted surveillance.
Key Specifications:
- Maximum Channels: 64
- Max Recording Resolution: 4K Ultra HD
- Compression Technology: H.265/H.264/MJPEG
- AI-Powered Analytics: Motion detection, intrusion alerts, object recognition, face detection
- Storage Capacity: Supports multiple HDDs (up to 12TB per slot)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
- Remote Access: Web-based and mobile app support
- RAID Support: RAID 5/6 for enhanced data protection
- Power Source: 100-240V AC
- Operating Temperature: 0°C to +40°C (32°F to 104°F)
Specifications:
| Display | |
| Network camera | |
| Network camera > Inputs | Max. 64CH |
| Network camera > Resolution | 32MP ~ CIF |
| Network camera > Protocols | Wisenet, ONVIF |
| Decoding | |
| Decoding > Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920×1080 (60Hz) |
| Decoding > Multi Screen Display | [Local Monitor] – Dynamic layout, Virtual channel view – Clone Mode : Up to 64 Division – Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
| Decoding > Resolution | 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps) |
| Performance | |
| Operating System | |
| Operating System > Embedded | Linux |
| Record | |
| Record > Compression | H.265, H.264, MJPEG, WiseStream(H.265, H.264) |
| Record > Recording Bandwidth | Distributed mode : Up to 400 Mbps Normal mode : Up to 150 Mbps {RAID mode} Normal : Up to 400 Mbps Degrade/ Rebuild : Up to 320 Mbps |
| Record > Resolution | 32MP ~ CIF |
| Record > Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark |
| Record > Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event |
| Record > Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shotdown |
| Search & Play | |
| Search & Play > Playback Bandwidth | Max. 64Mbps(64CH simultaneously) |
| Search & Play > User | Max. 4 Users (Local 1, Remote 3) |
| Search & Play > Simultaneous playback | Max. 112CH(Local 64CH, Remote 16CH per user) |
| Search & Play > Fisheye Dewarping | Support (Local 1CH), CMS |
| Search & Play > Mode | Date & Time(Calendar), Event list, Text Search, Smart Search |
| Search & Play > Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) |
| Search & Play > Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Storage > Supported HDD | Up to 10TB |
| Storage > HDD Slot | SATA 16ea(Max. 160TB, Non-RAID mode), Hot swap |
| Storage > External | iSCSI storage |
| Storage > RAID | RAID-5/6(Array Size : 8 HDD x 2 Array) |
| Backup | |
| Backup > File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Backup > Function | Multi channel(Up to 16CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 400Mbps |
| Audio | |
| Audio > Input/Output | 64 CH(network) |
| Audio > Compression | G.711, G.726, AAC(16/48KHz) |
| Audio > Audio Communication | 2-Way |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
| Web viewer | |
| Web viewer > Supported OS | Windows 10, macOS 10.13 |
| Web viewer > Supported browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS |
| Functions | |
| Camera Setup | |
| Camera Setup > Register | Auto, Manual |
| Camera Setup > Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | |
| PTZ > Control | Via GUI, Webviewer, SPC-2000 |
| PTZ > Preset | 300 Presets |
| Smart phone | |
| Smart phone > Support Model | iOS, Android |
| Smart phone > Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
| Smart phone > Control | Live 16CH(Multi-Profile Support), Playback 4CH |
| Smart phone > Max. Remote Users | Search(3), Live Unicast(10) |
| Redundancy | |
| Redundancy > Failover | N+1 |
| Redundancy > ARB | Support |
| Easy configuration | P2P(QR code) |

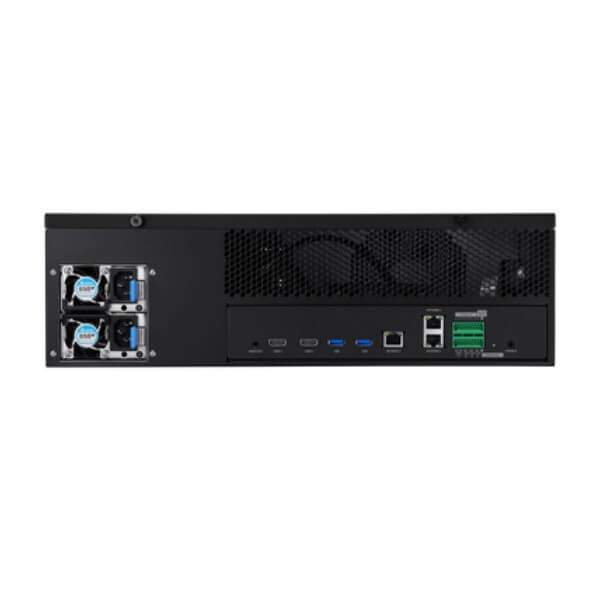

| Interface | |
| Front | |
| Front > Indicator | HDD, Alarm, Power, Record, Backup, Network, RAID |
| Storage | OK |
| Reset | Power button |
| HDD Key Lock | OK |
| HDMI | 2EA |
| Audio | Out 1EA (3.5mm Audio Jack) |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) |
| Alarm | In 8EA, Out 4EA |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Power inlet | AC 2EA |
| System | |
| Log | |
| Log > Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz (Dual SMPS) |
| Power Consumption | Max. 285W (972.5 BTU with HDD 16ea) |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 440.0 x 132.0 x 571.1mm |
| Weight | Approx. 14.3Kg(31.5 lb, HDD not included) |
| Intelligent Analysis | |
| AI Search | |
| AI Search > Object Attribute | Person, Face(with Wisenet AI camera), Vehicle, Lisence plate |
| AI Search > LPR | English, Number (Wisenet AI, P/X Camera) |
