Dinstar UC2000-VE-8G GSM/WCDMA/LTE VoIP Gateway Dubai

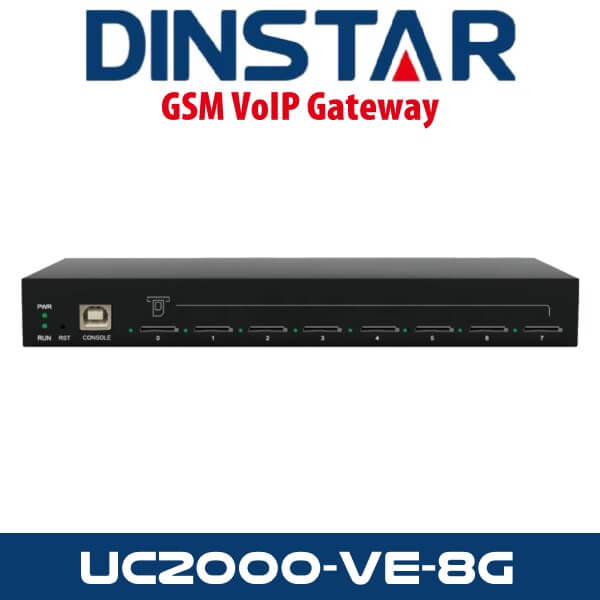

The Dinstar UC2000-VE-8G Dubai is a powerful 8-channel GSM/3G/4G VoIP Gateway designed to deliver seamless communication between mobile networks and VoIP systems. With its compact, field-proven hardware, this gateway supports both voice and SMS transmission, offering enterprises, call centers, service providers, and rural areas a cost-effective telephony solution.
Equipped with integrated GSM/WCDMA/LTE connectivity and full SIP protocol compatibility, the UC2000-VE-8G ensures smooth integration with mainstream VoIP platforms. It works as a standalone device and also supports remote SIM management via Dinstar SIMBank and SIMCloud, making it a reliable and scalable solution for modern communication needs.
Key Features
- 8-channel GSM/3G/4G VoIP Gateway
- GSM/WCDMA/LTE connectivity with VoLTE support
- Hot-swappable SIM cards for maximum flexibility
- Compatible with all major VoIP platforms
- Mobility extension to ensure no missed calls
- SMS sending, receiving, and SMS API support
- Credit limit management for cost control
- Auto CLIP functionality for call identification
Applications
- Mobile connectivity for SME IP phone systems
- Mobile trunking for multi-branch organizations
- GSM/3G voice backup trunks
- Call termination for telecom service providers
- Landline replacement in rural or remote areas
- Bulk SMS services for businesses
- Call center and contact center communication solutions
Easy Management & Configuration
- User-friendly web interface
- Remote SIM management with SIMBank & SIMCloud
- Backup & restore configuration options
- Advanced diagnostic and debug tools
Technical Highlights

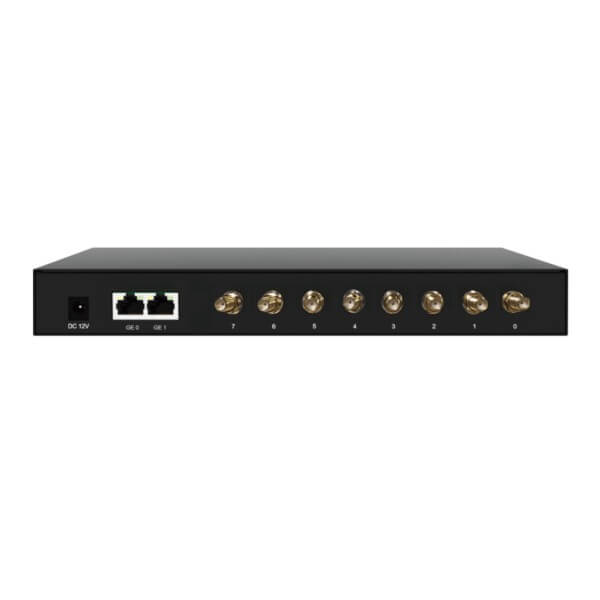

- 8 SIM slots with 8 antennas
- Signaling & RTP encryption for secure communications
- Built-in antenna combiner (optional)
- SMPP and HTTP API for SMS services
- GSM frequencies: 850/900/1800/1900MHz
- WCDMA support: 900/2100MHz or 850/1900MHz
- LTE frequency options for multiple regions
- Full PIN management support
- SIP v2.0 (RFC3261) compliance
- Supported codecs: G.711A/U, G.723.1, G.729AB
- SMS to Email & Email to SMS support
- Echo cancellation, call forwarding, and call waiting
- DTMF support via RFC2833 & SIP Info
- Programmable gain control and audio enhancements
- HTTPS/HTTP web configuration access
- SIP trunk and trunk group support
- Firmware upgrade via HTTP/TFTP
- Caller/Called number manipulation
- CDR storage (up to 10,000 lines locally)
- White/blacklist filtering for call security
- Comprehensive VoIP and PSTN call statistics
- IVR customization and balance check features
- Auto provisioning and random call interval settings
- Abnormal call monitoring for reliability
- Seamless integration with Dinstar SIMCloud & SIMBank
