Description

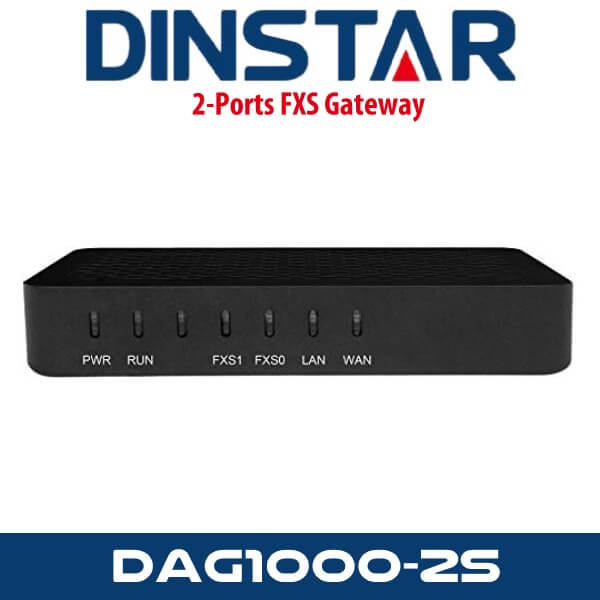

Dinstar DAG1000-2S Dubai
Dinstar DAG1000-2S Features
- Cost-effective ATA with 2 FXS ports
- Fax over IP (T.38 and Pass-Through)
- Support IPv4 and IPv6
- TR069 and SNMP
- Elastix and Broadsoft Certification
- Multiple codecs: G.711A/U, G.723.1, G.729A/B, G.726
- Fully compatible with leading IMS/NGN and SIP-based IP telephony systems
Technical Specifications

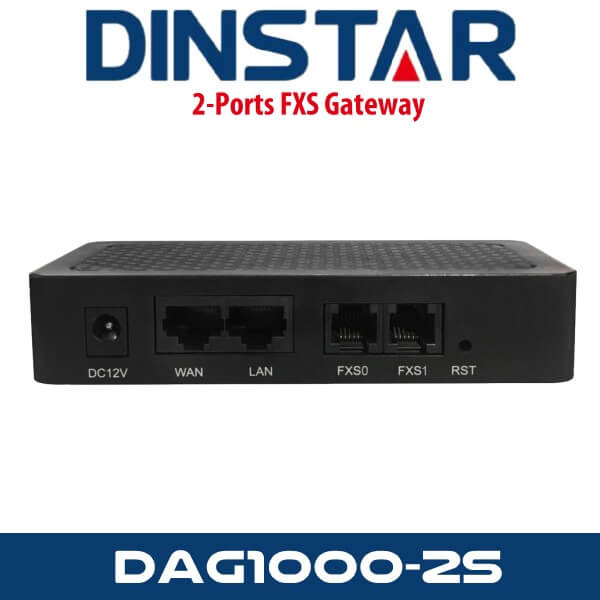

Physical Interfaces
- Telephone Port
- DAG1000-2S: 2 FXS port (RJ11)
- Ethernet Interfaces
- DAG1000-2S:
- 1 WAN, 10/100Mbps (RJ45)
- 1 LAN, 10/100Mbps (RJ45)
Voice Capabilities & Fax
- Codecs: G.711a/μ law, G.723.1, G.729A/B, G.726
- Silence Suppression
- Comfort Noise Generator(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation: G.168 with up to 128ms
- Adaptive (Dynamic) Jitter Buffer
- Hook Flash
- Adjustable Gain Control
- Programmable Gain Control
- FAX: T.38 and Pass-through
- Modem/POS
- DTMF: SIP Info/RFC2833/Inband
- VLAN 802.1P/802.1Q
- Layer 3 QoS and DiffServ
FXS
- FXS Connector: RJ11
- Dial Mode: DTMF and Pulse
- Pulse: 10 and 20 PPS
- Caller ID: DTMF/FSK CLI Presentation
- Max Cable Length: 3km
- Reversed Polarity
- Programmable Call Progress Tone
Software Features
- Hunting Group
- Web ACL
- Telnet ACL
- Action URL
- PPPoE/IPv4/IPv6
- Digitmap
- Bandwidth Optimization
- Routing Rules based on Prefixes
- Caller/Called Number Manipulation
Supplementary Services
- Call Waiting and Call Holding
- Call Forwarding(Unconditional/Busy/No Reply)
- Call Transfer (Blind & Attended)
- Warm/Immediately Hotline
- Do-not-disturb
- Three Parties Conversation (3-way Conference)
- Message Waiting Indicator
Environmental
- Power Supply: 12V DC, 1A
- Power Consumption: <5W
- Operating Temperature: 0 ºC ~ 45 ºC
- Storage Temperature: -20 ºC ~ 80 ºC
- Humidity: 10% – 90% (Non-Condensing)
- Dimensions:126×76×25mm(W/D/H)
- Unit Weight:<=0.2kg
- Compliance: UL
Maintenance
- SNMP V1/V2/V3
- TR069
- Auto Provisioning (HTTP/FTP/TFTP)
- Web/Telnet
- Configuration Backup/Restore
- Firmware Upgrade via Web
- CDR
- Syslog
- Ping, Tracert Test
- Network Capture
- Outward Test (GR909 Standard)
- NTP/Daylight Saving Time
- IVR Local Maintenance
- Cloud-based Management
