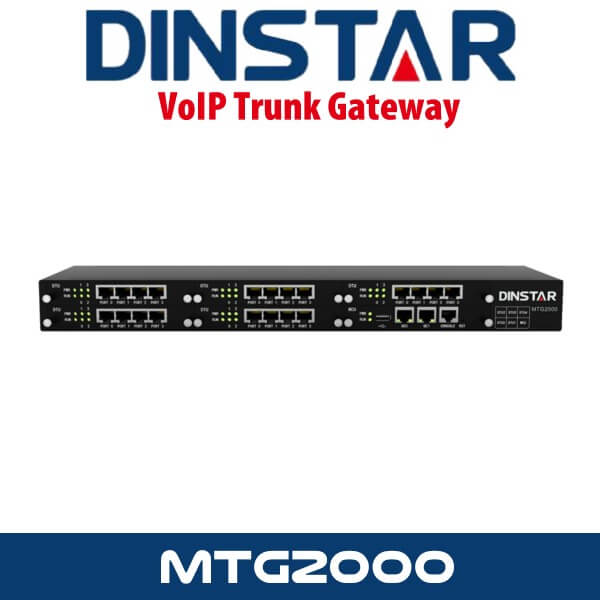

The Dinstar MTG2000 Dubai is a high-performance, carrier-grade Digital VoIP Gateway designed to deliver reliable, scalable, and intelligent voice communication for enterprises and telecom operators.

Description

Dinstar MTG2000 Carrier-Grade Digital VoIP Gateway Dubai

The Dinstar MTG2000 Dubai is a high-performance, carrier-grade Digital VoIP Gateway designed to deliver reliable, scalable, and intelligent voice communication for enterprises and telecom operators. Engineered for professional-grade performance, it supports 4 to 20 E1/T1 ports and enables seamless VoIP and FoIP integration with traditional telephony systems.

Built for superior manageability, flexibility, and future-ready communication, the Dinstar MTG2000 ensures unmatched efficiency across large enterprises, call centers, service providers, and telecom carriers. Its advanced architecture supports multiple signaling protocols, bridging SIP with ISDN PRI / SS7, ensuring top-tier voice quality and resource utilization.

Key Features

  • Scalable Digital VoIP Gateway for Enterprises & Service Providers
    • 4 to 20 E1/T1 ports in a compact 1U chassis
    • Supports up to 600 simultaneous calls

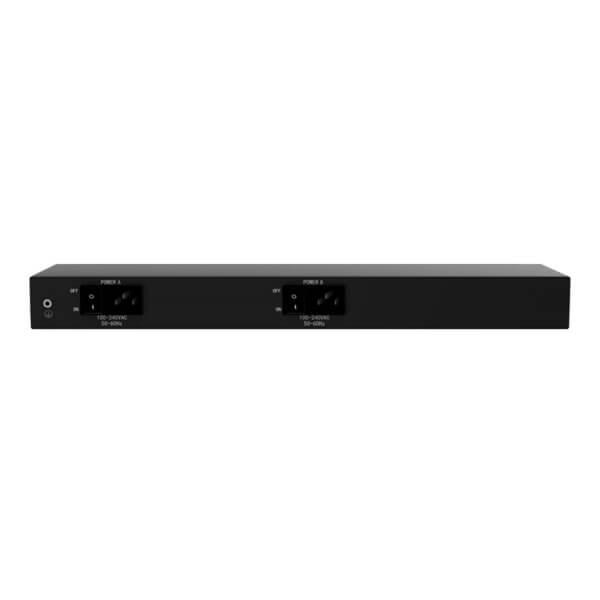

    • Redundant Dual MCU and Dual Power Supply for maximum uptime
    • Flexible call routing and multiple SIP trunk configurations
    • Full compatibility with leading VoIP platforms
  • Comprehensive PSTN Protocol Support
    • ISDN PRI, ISDN SS7 with redundancy, and R2 MFC protocols
    • Fax support through T.38 and Pass-through modes
    • Integrated modem and POS compatibility
    • Over 10 years of proven interoperability with legacy PBXs and carrier PSTN networks
  • Simplified & Centralized Management
    • User-friendly Web Interface for configuration and control
    • SNMP protocol support for network monitoring
    • Dinstar Cloud Management System for remote administration
    • Automated provisioning, configuration backup, and restore functions
    • Advanced debugging and diagnostic tools for faster issue resolution

Technical Specifications

  • Interfaces & Capacity
    • 4/8/12/16/20 E1/T1 RJ48 interfaces
    • Up to 256 SIP accounts and 256 route rules per direction
    • Dual Gigabit Ethernet ports
  • Audio & Voice Technologies
    • Supported Codecs: G.711a/μ-law, G.723.1, G.729A/B, iLBC, AMR
    • Echo Cancellation (G.168) with up to 128 ms tail length
    • Silence suppression and comfort noise generation
    • Voice and Fax gain control, adaptive dynamic buffering
  • Protocol & Signaling Support
    • SIP v2.0, SIP-T, RFC 3372, RFC 3204, RFC 3398 compliance
    • SS7 (ITU-T, ANSI, ITU-China, MTP1/2/3, TUP/ISUP)
    • DTMF: RFC2833, SIP Info, and In-band modes
    • NAT traversal and dynamic routing capabilities
  • Advanced Routing & Security
    • Intelligent routing by time, caller, and prefix
    • PSTN-PSTN, PSTN-IP, and IP-PSTN routing modes
    • Caller/Called number manipulation and filtering
    • White/Black list management and access control lists
  • System & Network Management
    • Web GUI configuration and overlapping dialing
    • Firmware upgrade via Web or TFTP
    • SNMP v1/v2/v3, Syslog (Debug, Info, Error, Warning, Notice)
    • Call statistics for PSTN and SIP trunks
    • NTP synchronization, Radius support, and centralized management

Why Choose Dinstar MTG2000 in Dubai?

  • Carrier-grade reliability for uninterrupted communication
  • Seamless SIP-PSTN integration with high voice quality
  • Flexible scalability from small setups to large enterprise networks
  • Efficient resource utilization with smart routing and redundancy
  • Proven interoperability with leading PBXs and telecom systems
