Description

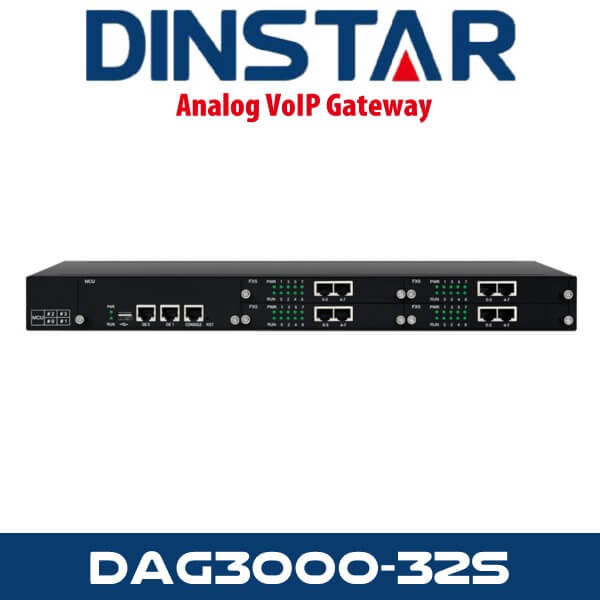

Dinstar DAG3000-32S High-End Analog VoIP Gateway Dubai

The Dinstar DAG3000-32S Analog VoIP Gateway Dubai is a high-performance and versatile communication solution designed to bridge the gap between IP-based telephony networks and traditional telephone systems (POTS) or legacy PBX infrastructures. Featuring a modular hardware design, this gateway allows flexible expansion by adding FXO boards as per user requirements. Each board offers 8 FXS ports, supporting up to 32 FXS ports in total, making it an ideal choice for SMBs, enterprises, call centers, and multi-location businesses seeking reliable VoIP services.

With full support for standard SIP protocol, the DAG3000-32S is fully compatible with leading IMS/NGN platforms and SIP-based telephony systems, ensuring smooth integration into diverse network environments.

Key Features

• High-End VoIP Gateway
  • Supports up to 32 FXS ports
  • Power failover and IP/SIP failover protection
  • SIP and IMS compatibility
  • T.38 fax support
  • Flexible call routing and dial plans
  • Seamless interoperability with leading softswitches, SIP servers, and IP-PBX systems
• Superior Reliability & Security
  • Embedded operating system for stability
  • Proven hardware design with carrier-grade reliability
  • Redundant main/secondary SIP server failover
  • Enhanced security with TLS/SRTP protocols
• Simplified Management
  • Intuitive web-based interface with quick installation wizard
  • Remote management via SNMP & TR-069
  • Automated provisioning for efficient deployment
  • Centralized monitoring with Dinstar Cloud Management System
  • Easy configuration backup and restore options
  • Integrated web-based diagnostic and debug tools

Technical Highlights

• IPv4 and IPv6 dual-stack support
• Call features: waiting, forwarding, transfer (blind/attended), voicemail, music on hold
• SIP v2.0 (RFC3261) over UDP/TCP/TLS
• Advanced fax support: T.38 and pass-through
• QoS with L3 DiffServ & 802.1P/Q VLAN tagging
• Do Not Disturb (DND) and speed dial
• 3-way conferencing and hunting groups
• Automatic firmware upgrades via HTTP/HTTPS
• Long-haul transmission up to 3 km
• MWI (Message Waiting Indicator)
• Detailed system logs and CDR reporting
