Cisco WAP351 Dubai



Cisco WAP351 Dubai

Cisco Wi-Fi Dubai is equipped with a 5- Port Gigabit Ethernet LAN Switch supports both PD and PSE, allowing IP devices and the AP to be powered by a backbone switch.

Description

Cisco WAP351 Access Point Dubai

The Cisco WAP351 Dubai enables you to enhance productivity in your business using its numerous advanced features. It is a powerful Wireless-N Dual Radio Access Point with 5 Ports Switch that has been designed to offer 802.11n dual-radio connectivity and supports concurrent dual-band radios. Cisco Wi-Fi Dubai is is an ideal, lower-cost solution for hospitality, conference rooms, or classroom deployments.

The Cisco WAP351 Dubai provides speeds up to 300 Mbps to help businesses increase productivity and run new business applications. The power-device (PD) port (power in) allows the access point to be powered by a backbone switch, and the power-sourcing-equipment (PSE) port (power out) allows the access point to power an IP device. The Cisco Wi-Fi Dubai advanced features will help simplify the deployment of wired and wireless devices.

Cisco WAP351 Dubai Wireless-N Dual Radio Access Points are easy to set up and use, with intuitive wizard-based configuration to get you up and running in minutes. An attractive design with flexible mounting options enables the access points to smoothly blend into any small business environment.

To enhance reliability and safeguard sensitive business information, the Cisco WAP351 Wireless-N Dual Radio Access Point supports both Wi-Fi Protected Access (WPA) Personal and Enterprise, encoding all your wireless transmissions with powerful encryption. In addition, 802.1 X RADIUS authentications help keep unauthorized users out.

Cisco WAP351 Dubai is designed to scale smoothly as your organization grows, the access points feature controllerless Single Point Setup that simplifies the deployment of multiple access points without additional hardware. With the Cisco WAP351 Wireless-N Dual Radio Access Point, you can extend business-class wireless networking to employees and guests anywhere in the office, with the flexibility to meet new business needs for years to come.

Features

  • Cisco WAP351 Dubai comes with concurrent dual-band radio which supports up to 300 Mbps per radio to maximize capacity and coverage.
  • Single Point Setup, a controllerless technology, simplifies the deployment and management of multiple access points – without requiring additional hardware.
  • Cisco WAP351 Dubai offers robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue-access-point detection, helps protect sensitive business information.
  • Captive portal enables highly secure, customized guest access with multiple rights and roles.
  • Simple installation and intuitive web-based configuration and wizard enable fast, simple deployment and setup in minutes.
  • Cisco Wi-Fi Dubai is equipped with a 5- Port Gigabit Ethernet LAN Switch supports both PD and PSE, allowing IP devices and the AP to be powered by a backbone switch.
  • Cisco WAP351 Dubai has a sleek, simple design with multiple internal antennas and versatile mounting kit which enables installation on a ceiling, wall, or desktop.
  • Intelligent QoS prioritizes network traffic to help keep critical network applications running at top performance.
  • Power-saving sleep mode and port control features help maximize energy efficiency.
  • Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network.
  • Cisco WAP351 Dubai has built-in support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades.
  • Limited lifetime hardware warranty provides peace of mind.

Technical Specifications

Standards

IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)

Cabling type

Category 5e or better

Antennas

Internal antennas optimized for installation on a wall or ceiling

LED indicators

Power, WLAN, LAN

Operating system

Linux

Physical Interfaces

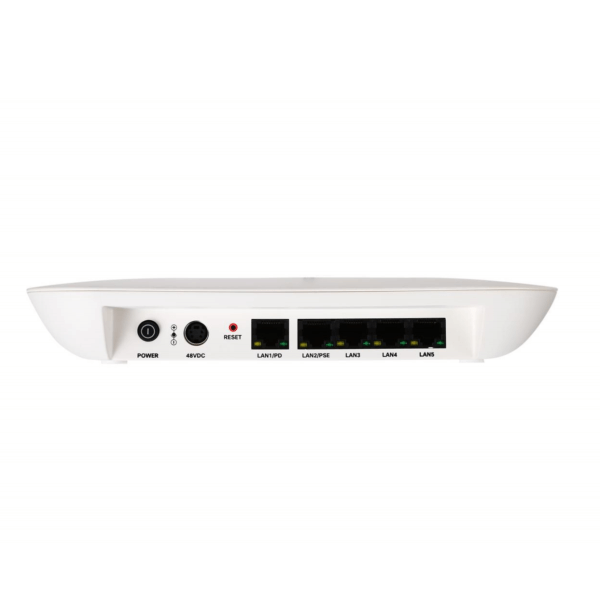

Ports

5 10/100/1000 Ethernet, with support for 802.3af /at PoE, Power Port for AC adapter (not included)

Power Supply

802.3af/at PoE and External 48V/1.25A DC power adapter (not included)

Buttons

Reset button, Power On/Off

Lock slot

Slot for Kensington lock

Physical Specifications

Physical dimensions (W x D x H)

9.055 x 9.055 x 1.575 in. (230 x 230 x 40 mm)

Weight

1.34 lb or 0.607 kg

Network Capabilities

VLAN support

Yes

Number of VLANs

1 management VLAN plus 16 VLANs for SSIDs

802.1X supplicant

Yes

SSID-to-VLAN mapping

Yes

Auto channel selection

Yes

Spanning Tree

Yes

Load balancing

Yes

IPv6

Yes

  • IPv6 host support
  • IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.

Layer 2

802.1Q-based VLANS, 16 active VLANS plus 1 management VLAN

Security

WPA/WPA2

Yes, including Enterprise authentication

Access control

Yes, management access control list (ACL) plus MAC ACL

Secure management

HTTPS

SSID broadcast

Yes

Rogue-access-point detection

Yes

Mounting and Physical Security

Multiple mounting options

Mounting bracket included for easy ceiling or wall mounting

Physical security lock

Kensington lock slot

Quality of Service

Quality of service (QoS)

Wi-Fi Multimedia and Traffic Specification (WMM TSPEC), Client QoS

Performance

Wireless throughput

Up to 300-Mbps data rate (real-world throughput will vary)

Recommended user support

32 active clients/users per radio

Multiple-Access Point Management

Single Point Setup

Yes

Number of access points per cluster

8

Active clients per cluster

240

Configuration

Web user interface

Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)

Management

Management protocols

Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour

Remote management

Yes

Event logging

Local, remote syslog, email alerts

Network diagnostics

Logging and packet capture

Web firmware upgrade

Firmware upgradable through web browser, imported/exported configuration file

Dynamic Host Configuration Protocol (DHCP)

DHCP client

IPv6 host

Yes

HTTP redirect

Yes

Wireless

Frequency

Dual concurrent radios (2.4 and 5 GHz)

Radio and modulation type

Dual radio, orthogonal frequency division multiplexing (OFDM)

WLAN

  • 802.11n
  • 2×3 multiple-input multiple-output (MIMO) with 2 spatial streams on 2.4 GHz
  • 2×2 multiple-input multiple-output (MIMO) with 2 spatial streams on 5 GHz
  • 20, and 40 MHz for 802.11n
  • PHY data rate up to 600 Mbps

Data rates supported

  • 802.11a/b/g : 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps
  • 802.11n : 6.5 to 300 Mbps
    • 20-MHz bandwidth : MCS 0-15 for supported data rates
    • 40-MHz bandwidth : MCS 0-15 for supported data rates

Frequency band and 20-MHz operating channels

A Regulatory Domain :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.240 GHz; 4 channels
  • 5.745 to 5.825 GHz; 5 channels

E Regulatory Domain :

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.240 GHz; 4 channels

C Regulatory Domain :

  • 2.412 to 2.462 GHz; 11 channels
  • 5.745 to 5.8 0 5 GHz; 4 channels

Non-overlapping channels

2.4 GHz

  • 802.11b/g
    • 20 MHz : 3
  • 802.11n
    • 20 MHz : 3

5 GHz

  • 802.11a
    • 20 MHz : 9
  • 802.11n
    • 20 MHz : 9
    • 40 MHz : 4

Wireless isolation

Wireless isolation between clients

External antennas

None

Internal antennas

Internal Fixed PiFA Antenna

Antenna gain in dBi

  • Maximum antenna gain of 5.3 dBi on 2.4 GHz
  • Maximum antenna gain of 5.1 dBi on 5 GHz

Wireless distribution system (WDS)

Yes

Roaming

802.11i only

Multiple SSIDs

16

Wireless VLAN map

Yes

WLAN security

Yes

Wi-Fi Multimedia (WMM)

Yes, with unscheduled automatic power save

Operating Modes

Access point

Access Point mode, WDS Bridging, Workgroup Bridge mode

Environmental

Power options

  • IEEE 802.3af/af Ethernet switch
  • Cisco Power Injector – SB-PWR-INJ2-xx
  • AC Adapter – SB-PWR-48V-xx (not included)
  • PoE power :
  • Peak PoE power : 18W

Compliance

Safety :

  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • IEC 60950-1
  • EN 60950-1

Radio approvals :

  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • AS/NZS 4268.2003 (Australia and New Zealand)

EMI and susceptibility (Class B) :

  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • EN 301.489-1 and -17 (Europe)

Operating temperature

0° to 40°C (32° to 104°F)

Storage temperature

-20° to 70°C (-4° to 158°F)

Operating humidity

10% to 85% noncondensing

Storage humidity

5% to 90% noncondensing

System memory

  • 128-MB RAM
  • 128-MB Flash

Package Contents

  • Cisco WAP351 Wireless-N Dual Radio Access Point
  • Ceiling-/wall-mounting kit
  • User guide on CD-ROM
  • Quick-start guide
  • Ethernet network cable
