Description

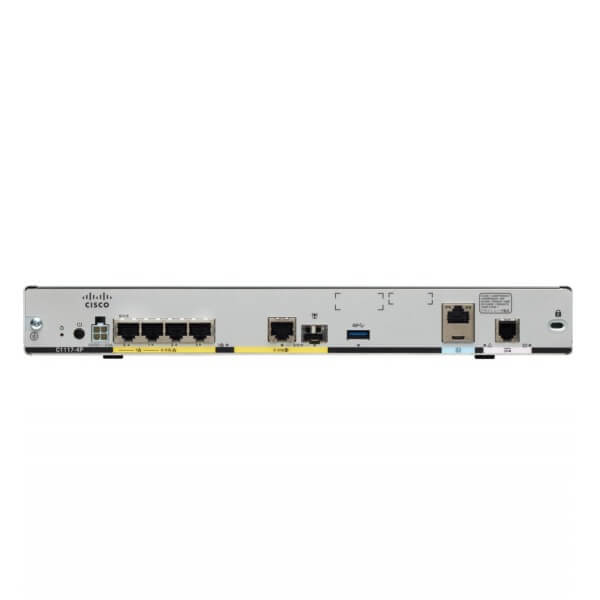

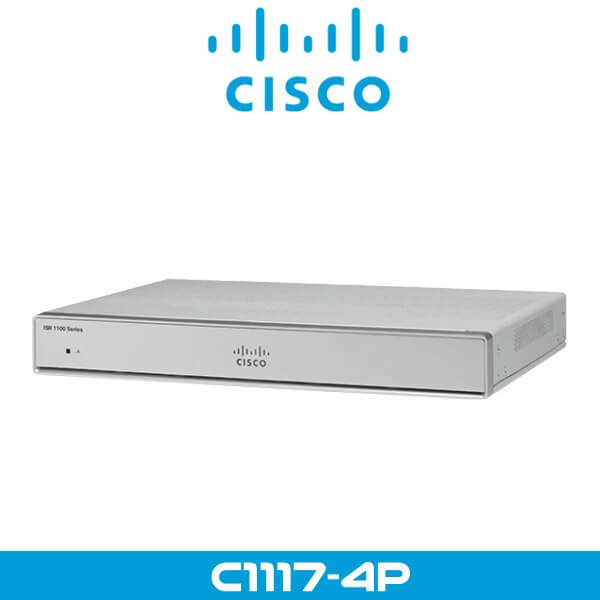

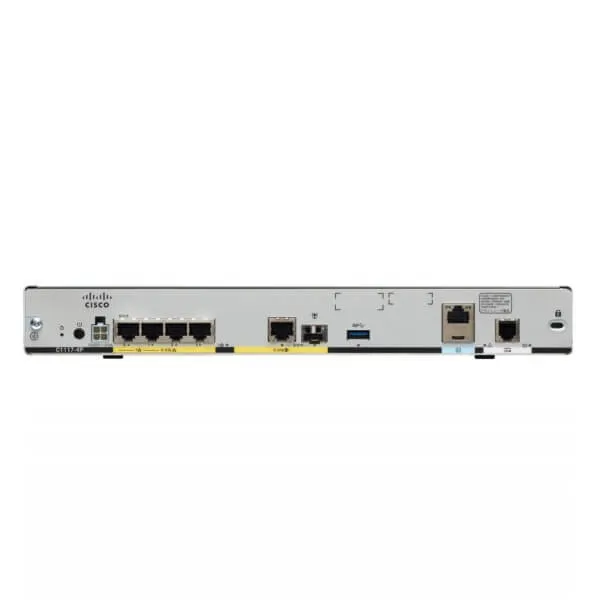

Cisco C1117-4P Integrated Services Router Dubai
Cisco C1117-4P Dubai Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1117-4P is the ISR 1100 4 Ports DSL Annex A/M and GE WAN Router, delivering 1 GE/SFP Combo WAN port and 4GE LAN ports.
Features:
- PORT COUNT: 4-port managed Gigabit Ethernet switch (2 ports PoE capable with 1 port PoE+)
- CONNECTIVITY: VA-DSL (Annex A) WAN and WAN/SFP combo ports with integrated USB 3.0 AUX/console
- SECURITY: Multi-layer, robust security, and high-performance VPNs encrypt all data from the WAN edge to the cloud
- PERFORMANCE: Business router designed for broadband network speeds while running secure, concurrent data, voice, video, and wireless services
Quick Specs
Model | C1117-4P |
WAN GE | N/A |
WAN GE/SFP combo | 1 |
ADSL2/VDSL2+ | 1 VA-DSL (Annex A) |
LTE Advanced (CAT6) | N/A |
802.11ac | N/A |
LAN GE | 4 |
PoE | 2 |
PoE+ | 1 |
Integrated USB 3.0 AUX/console | Yes |
Dimensions (H x W x D) | 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet) |
Weight with AC PS (w/o modules) | 5.5 Lbs. (2.5 kg) maximum |
