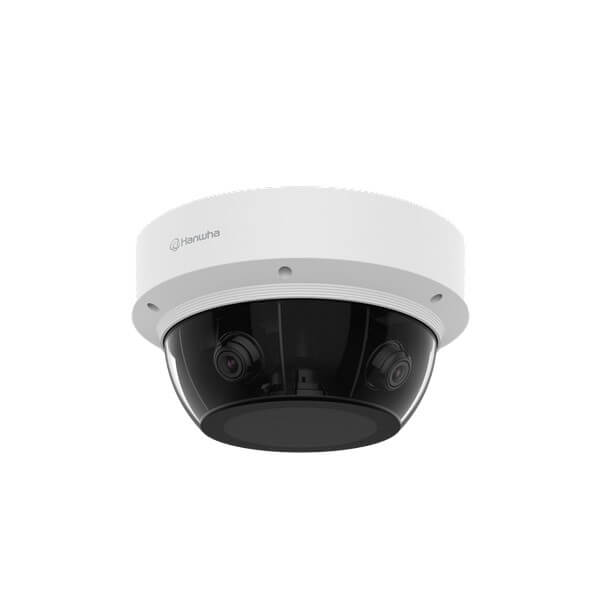

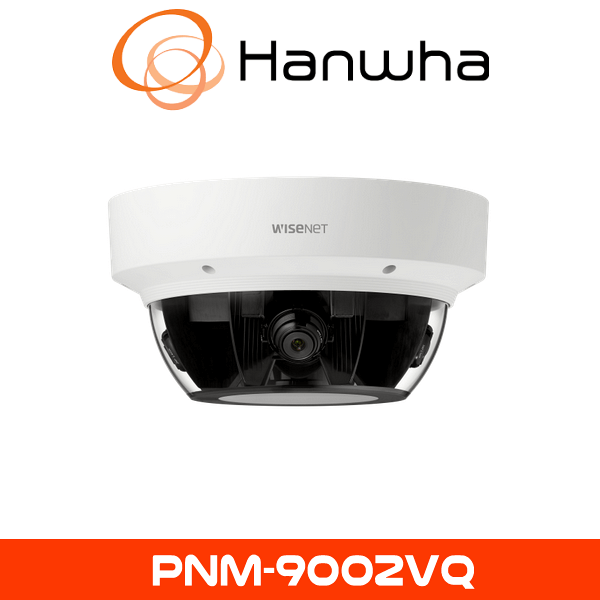

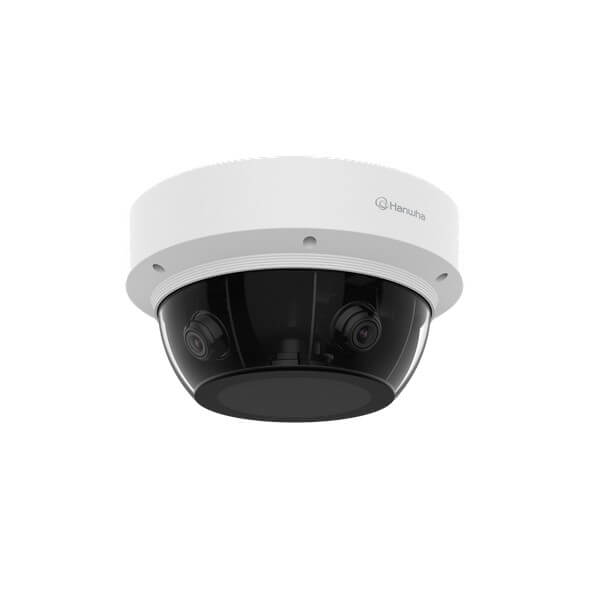

Hanwha PNM-9002VQ Multi-Directional CCTV Camera
The Hanwha PNM-9002VQ Multi-Directional CCTV Camera, previously recognized as Samsung CCTV, is an advanced security solution offering multi-directional surveillance with high-resolution 4K ultra-HD imaging. Designed for large-scale monitoring applications, this camera provides superior video quality, AI-powered analytics, and a rugged design to withstand challenging environments.
4K Ultra-HD Multi-Directional Imaging
The PNM-9002VQ features four independent 5MP sensors, delivering 4K ultra-HD resolution with the ability to monitor four different areas simultaneously. This eliminates the need for multiple cameras, reducing costs while improving overall coverage.
AI-Powered Deep Learning Analytics
Equipped with deep learning AI analytics, the camera enhances security by detecting and classifying humans, vehicles, and objects, reducing false alarms. Additional features include motion tracking, intrusion detection, loitering alerts, and virtual line crossing, ensuring proactive monitoring.
Rugged Weatherproof and Vandal-Resistant Housing
The IP66 weatherproof and IK10 impact-resistant housing ensures durability in harsh outdoor conditions, making it an excellent choice for securing high-risk areas, including industrial zones, government buildings, and critical infrastructure.
Smart IR Night Vision
Featuring adaptive infrared (IR) illumination, the camera ensures clear video footage even in low-light conditions, offering enhanced night vision capabilities without overexposure.
Optimized Bandwidth and Storage Management
With H.265 video compression, the PNM-9002VQ optimizes bandwidth consumption and storage efficiency while maintaining high-resolution video quality, allowing for longer recording durations and cost-effective surveillance.
Easy Installation and Seamless Integration
Supporting Power over Ethernet (PoE), this camera simplifies installation by reducing cabling requirements. The ONVIF compliance ensures seamless integration with leading video management systems (VMS) for flexible deployment options.
Key Specifications:
- 4K Ultra HD (four 5MP sensors)
- AI-powered analytics: Object classification, motion tracking, loitering alerts, virtual line crossing, intrusion detection
- Multi-Directional Monitoring: 360° panoramic coverage with independent views
- Infrared Night Vision: Smart IR for optimal low-light performance
- Weatherproof Rating: IP66 for outdoor durability
- Vandal-Resistant Rating: IK10 for high-impact protection
- Video Compression: H.265/H.264/MJPEG
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | None |
| Resolution | [5MP] 2560×1920, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 320×240 [2MP] 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | None |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for installation |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | None |
| Max. Aperture Ratio | None |
| Angular Field of View | None |
| Min. Object Distance | None |
| Focus Control | None |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | SLA-2M2400Q(2MP 2.4mm) SLA-2M2800Q(2MP 2.8mm) SLA-2M3600Q(2MP 3.6mm) SLA-2M6000Q(2MP 6.0mm) SLA-5M3700Q(5MP 3.7mm) SLA-5M4600Q(5MP 4.6mm) SLA-5M7000Q(5MP 7.0mm) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | None |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | None |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | None |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers |
| Audio In | None |
| Audio Out | None |
| IR Viewable Length | None |
| IR Illuminator (Optional) | None |
| Water Removal | None |
| Auto Tracking | None |
| Coaxial Protocol | None |
| Color Palettes | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | None |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Video Quality Adjustment | None |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 4slot 256GB(Each CH) |
| Memory | 3GB RAM, 768MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE+(IEEE802.3at, Class4) |
| Power Consumption | Max 25.5W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø253mmx130mm, 3000g |
| Conduit hole | 3/4″ |
| Hanging mount(Dome) | SBP-276HMW |
| Skin cover(Dome) | None |
| Weather cap(Dome) | None |
| Power module | None |
| Backbox | None |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | None |
| Observe (63PPM/ 19PPF) | None |
| Recognize (125PPM/ 38PPF) | None |
| Identify (250PPM/ 76PPF) | None |
