Description

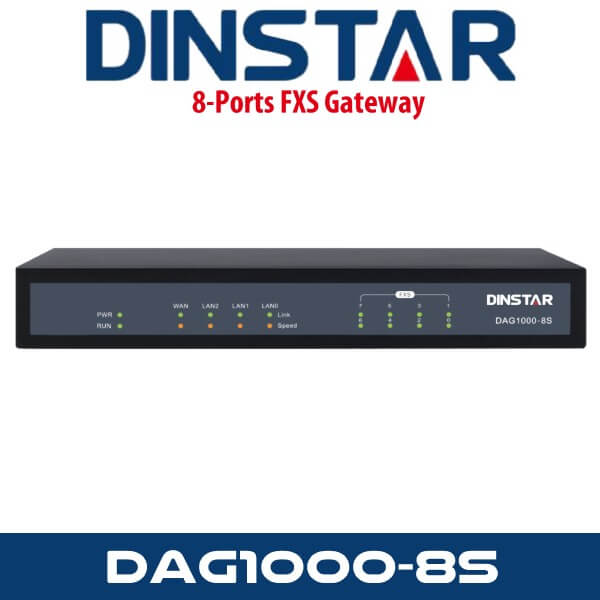

Dinstar DAG1000-8S Dubai
For small business, the family office, remote office and branch business provide a low cost, simple operation VoIP solutions. Connected analog phone, fax, PBX with standard voice interface and provide quality voice service. Dinstar DAG1000-8S Dubai VoIP access gateway uses standard SIP protocol and compatible with Leading IMS/NGN platform, IPPBX and SIP servers.
Features:
- Support SIP/MGCP
- Primary/Backup SIP Servers
- Flexible Routing and Manipulation
- Support Modem/POS
- Elastix/Broadsoft Certification
- Support IPv4 and IPv6
- Data/ Voice/ Management VLAN
- Build-in Firewall and Access Rules
- SNMP/TR069/Provision
- Cloud-based Management System and Bandwidth Optimization
Dinstar DAG1000-8S – Technical Specifications

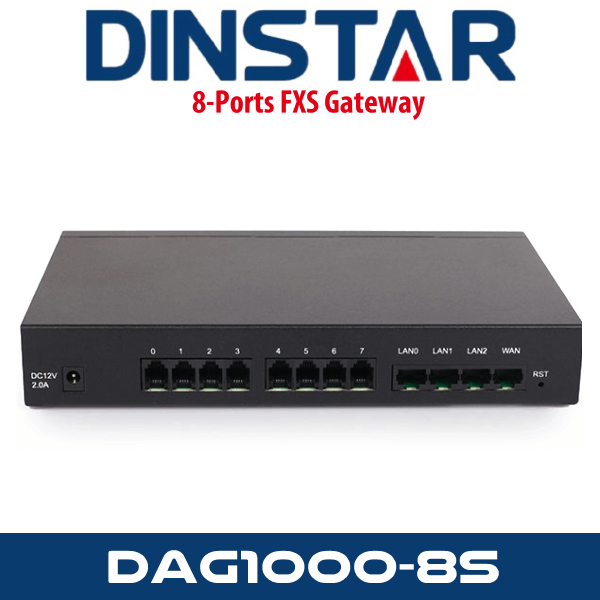

Physical Interfaces
- Phone Interface: 8FXS, RJ-11
- Ethernet Interface: 4* RJ-45 10/100Mbps, RJ-45
Voice & Fax
- G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
- Comfort Noise Generation(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation(G.168)
- Adaptive (Dynamic) Jitter Buffer
- Hook Flash
- Programmable Gain Control
- T.38/Pass-through, up to 14.4kbps
- Modem/POS
- DTMF mode: Signal/RFC2833/INBAND
FXS Port
- Connector: RJ11
- Dial Mode: DTMF and Pulse
- Pulse: 10 and 20 PPS
- Caller ID: DTMF/FSK
- Max Cable Length: 5KM
- Reversed Polarity
Protocol
- SIP V2.0 (RFC 3261,3262,3264)
- IMS/3GPP
- SDP (RFC 2327)
- REFER (RFC 3515)
- RTP/RTCP (RFC 1889,1890)
- STUN (RFC 3489)
- ARP/RARP (RFC 826/903)
- SNTP (RFC 2030)
- DHCP/PPPoE
- TFTP/HTTP/HTTPS
- DNS/DNS SRV (RFC 1706/RFC 2782)
- VLAN 802.1P/802.1Q
Supplement Service
- Call Waiting
- Blind Transfer
- Attend Transfer
- Call Pickup
- Call Forward on Busy
- Call Forward on No Reply
- Unconditional Call Forward
- Hotline
- Call Hold
- DND
- 3-way conference
- Voicemail
Call & Route
- Port Group
- IP Trunk
- Primary and Secondary SIP Account
- 32 Inbound/Outbound Routing
- Number Manipulation
- Digitmap
Network Features
- NAT (Rout and Bridge)
- Static IP, PPPoE, DHCP Client
- DHCP Server
- MAC Address Clone
- DMZ, Static routing
- Built-in Firewall
- Static/dynamic ARP
- QoS, Traffic Shaping
- Voice/Data/Management Vlan
Maintain & Upgrade
- SNMP/TR069
- Auto Provisioning
- Web/Telnet
- Configuration Backup/Restore
- Firmware Upgrade via WEB/TFTP
- Syslog and CDR
- Access Rule List
- Network Capture
- Outward Test(GR909)
- Automatic Time Synchronization
- IVR local Maintenance
- Cloud-based Management
Environment
- Power Supply: 100 – 240V, 50-60Hz
- Output: 12VDC,2A
- Power Consumption: 18W
- Temperature:
- (Operation): -10 ? ~ 45 ?
- (Storage): -20 ? ~80 ?
- Humidity: 10% – 90% No condensation
Dimension & Weight
- 240(L)×154(W)×37(H)mm 1kg
Homologation
- CE,FCC
- Elastix / Broadsoft
