Cisco Nexus9364C Dubai



Cisco Nexus9364C Dubai

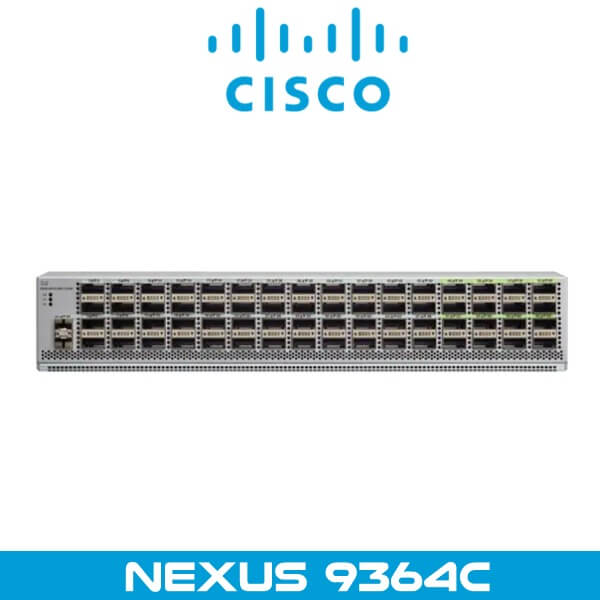

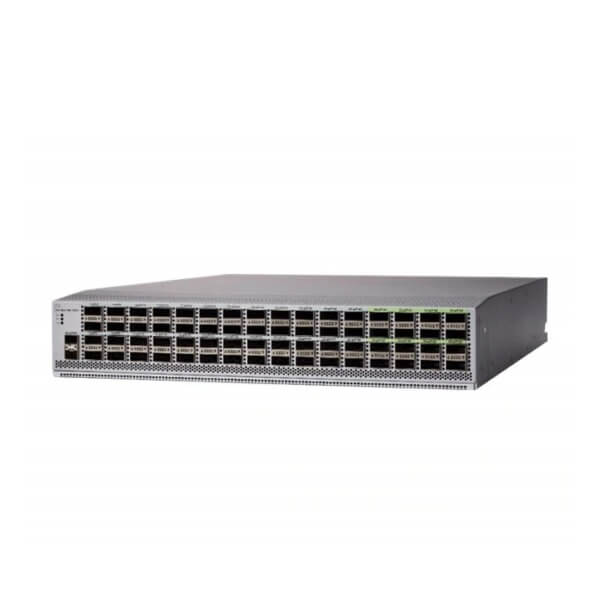

The Cisco Nexus9364C Dubai Spine Switch is a 2-Rack-Unit (2RU) spine switch for Cisco ACI that supports 12.84 Tbps of bandwidth and 4.3 bpps across 64 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports

Description

Cisco Nexus9364C Spine Switch Dubai

N9K-C9364C is the Nexus 9364C ACI Spine switch with 64p 40/100G QSFP28. The Cisco Nexus9364C Dubai Spine Switch is a 2-Rack-Unit (2RU) spine switch for Cisco ACI that supports 12.84 Tbps of bandwidth and 4.3 bpps across 64 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports. Breakout is not supported on ports 1 to 64. The last 16 ports marked in green support wire-rate MACsec encryption.

Features :

  • Indoor access points.
  • Outdoor and industrial access points.
  • Wireless LAN controllers.
  • Services for mobility and wireless.
  • 5G/Mobility for service providers.
  • Wi-Fi 6/6E solutions.
  • Cisco DNA Spaces.

Technical Specs

Product Code N9K-C9364C
Physical
  • 64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports
  • 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)
  • Hot-swappable, dual fan trays with redundant fans
  • System memory : 32GB
  • SSD : 256GB
  • USB : 1 port
  • RS-232 serial console ports : 1
  • Management ports : 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
  • Broadwell-DE CPU : 4 cores
Physical (H x W x D) 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
Weight (chassis) 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans
