Cisco Nexus7700-6Slot Dubai



Cisco Nexus7700-6Slot Dubai

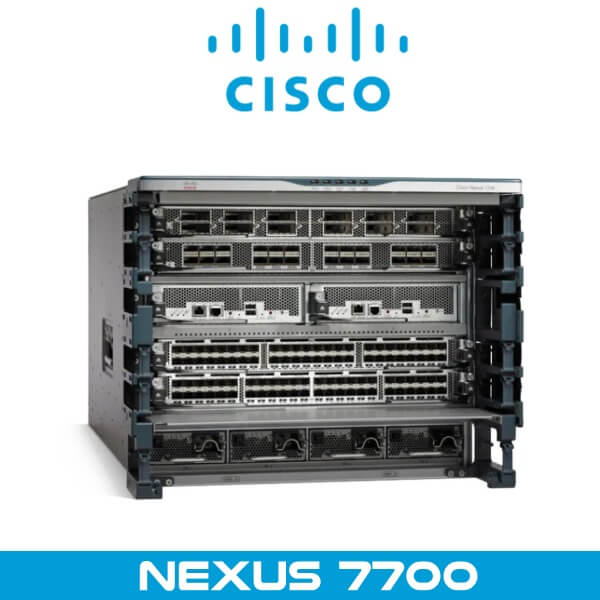

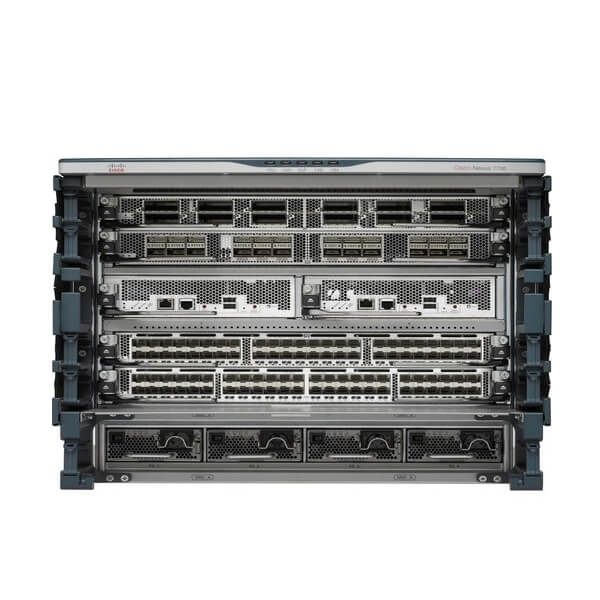

Scale up to 21 terabits per second (Tbps) with the Cisco Nexus7700-6Slot Dubai. This 9 rack unit (RU) switch offers a compact form factor, high availability, and exceptional performance with front-to-back airflow.

Description

Cisco Nexus7700-6Slot Network Switch Dubai

Scale up to 21 terabits per second (Tbps) with the Cisco Nexus7700-6Slot Dubai. This 9 rack unit (RU) switch offers a compact form factor, high availability, and exceptional performance with front-to-back airflow. That makes it ideal for small- to medium-sized data center access, aggregation, Data Center Interconnect (DCI), and Unified Fabric deployments.

The Cisco Nexus 7700 Switches are the latest extension to the Cisco Nexus 7000 Series modular switches. With more than 83 terabits per second (Tbps) of overall switching capacity, the Cisco Nexus7700-6Slot Dubai delivers the highest-capacity 10, 40, and 100 Gigabit Ethernet ports in the industry, with up to 768 native 10-Gbps ports, 384 40-Gbps ports, or 192 100-Gbps ports. This high system capacity is designed to meet the scalability requirements of the largest cloud environments.

Features and Capabilities

High Scalability

The Cisco Nexus7700-6Slot Dubai switch is designed to meet the scaling needs of the most demanding data centers today and well into the future. It offers:

  • High switching capacity with up to 21 Tbps
  • High density native10 GE, 40 GE, and 100 GE density (192 ports 10 GE, 96 ports 40 GE, or 48 ports 100 GE; non-blocking ports)

Lower Total Cost of Ownership

Cisco Nexus7700-6Slot Dubai is optimized for the data center with front-to-back airflow in a compact form factor, delivering a lower TCO. They feature:

  • True front-to-back air flow for hot-cold aisle deployments
  • Compact 9 rack-unit form factor
  • Reduced system power consumption with granular power supplies and configuration
  • Data center power mode that optimizes system power consumption at higher ambient temperatures

Operation and Feature Consistency

Cisco Nexus7700-6Slot Dubai maintains consistency with the Cisco Nexus 7000 Series, offering:

  • The same proven common architecture, application-specific integrated circuits (ASICs), and Cisco NX-OS software
  • One of the industry’s most comprehensive data center feature sets
  • The same software train across the entire Cisco Nexus 7000 Series to help ensure consistency

Technical Specs

Product Name Nexus 7700 6 Slot Chassis No P/S Fans Inclu
Manufacturer Part Number N77-C7706
Product Type Switch Chassis
Manageable Yes
Number of Total Expansion Slots 6
Product Family Nexus 7700
PoE (RJ-45) Port No
Redundant Power Supply Supported Yes
Form Factor Rack-mountable
Power Source Power Supply
Layer Supported 2
Compatible Rack Unit 9U
Modular No
Country of Origin China
Height 15.6″
Width 17.3″
Depth 32″
Product Series 7700
Product Model 7700
Product Line Nexus
Input Voltage 110 V AC220 V AC
Limited Warranty 1 Year
Token Ring Port No
LRE Port No
Bypass No
