Cisco Nexus9332C Dubai



Cisco Nexus9332C Dubai

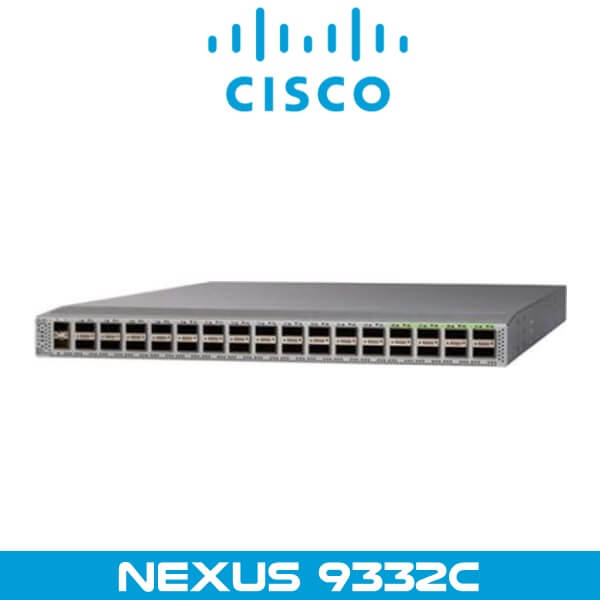

The Cisco Nexus9332C Dubai is a compact form-factor 1-Rack-Unit (1RU) spine switch that supports 6.4 Tbps of bandwidth and 4.4bpps across 32 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports

Description

Cisco Nexus9332C Network Switch Dubai

The Cisco Nexus9332C Dubai is the smallest form-factor 1-Rack-Unit (1RU) spine switch for Cisco ACI that supports 6.4 Tbps of bandwidth and 2.3 bpps across 32 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports. Breakout is not supported on ports 1 to 32. The last 8 ports marked in green support wire-rate MACsec encryption.

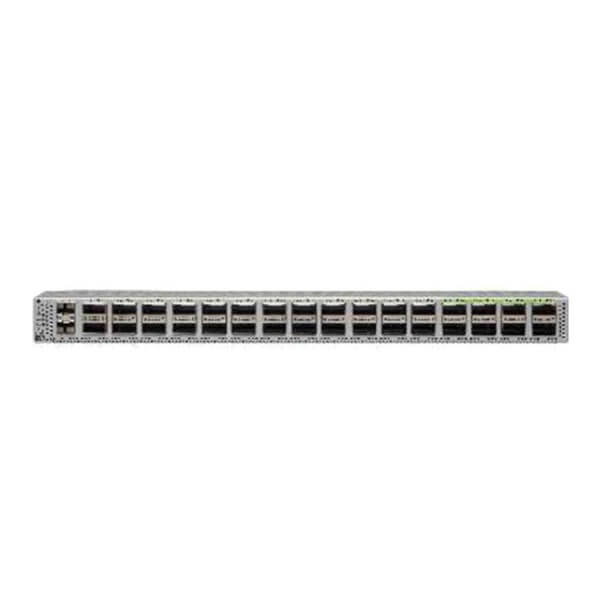

The Cisco Nexus9332C Dubai is a compact form-factor 1-Rack-Unit (1RU) spine switch that supports 6.4 Tbps of bandwidth and 4.4bpps across 32 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports . Breakout cables are not supported. The last 8 ports marked in green are capable of wire-rate MACsec encryption. The switch can operate in Cisco ACI Spine or NX-OS mode.

Features :

  • Indoor access points.
  • Outdoor and industrial access points.
  • Wireless LAN controllers.
  • Services for mobility and wireless.
  • 5G/Mobility for service providers.
  • Wi-Fi 6/6E solutions.
  • Cisco DNA Spaces.

Technical Specs

Product Code N9K-C9332C
Physical
  • 32-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports
  • 1100 watt (W) AC, DC or HVAC/HVDC power supplies (up to 2)
  • Hot-swappable, 5 fans with redundancy
  • System memory : 16 GB
  • SSD : 256GB
  • USB : 1 port
  • RS-232 serial console ports : 1
  • Management ports :
    • 2 (1 x 10/100/1000BASE-T
    • 1 x 1-Gbps SFP+)
  • Broadwell-DE CPU : 4 cores
Physical (H x W x D) 1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm)
Weight (chassis) 25.1lb (11.4kg) with power supplies and fans, 19 lb (8.6kg) without power supplies and fans
