The Tplink TD-W8961N Dubai does the work of several networking devices packed into one sleek device. With an ADSL2+ modem, NAT router, 4-port switch and 300Mbps wireless N access point, this device eliminates the need to purchase multiple devices to access and share a high-speed internet connection.

Description

Tplink TD-W8961N Modem Router Dubai

Tp-link’s Tplink TD-W8961N Dubai 300Mbps Wireless N ADSL2+ Modem Router is an incredibly robust all-in-one device that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. With the TD-W8961N, you can easily create a secure wireless network and share a high-speed internet connection while access to shared files, music, photos, and printers with multiple computers.

Features

One-Stop Solution :
The Tplink TD-W8961N Dubai does the work of several networking devices packed into one sleek device. With an ADSL2+ modem, NAT router, 4-port switch and 300Mbps wireless N access point, this device eliminates the need to purchase multiple devices to access and share a high-speed internet connection.

Incredible Wireless Performance :
With 300Mbps 802.11n wireless and 4 Megabit LAN ports, the Tplink TD-W8961N Dubai is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming.

Ideal for Multimedia Application :
Port Vlan binds specific Lan ports and PVCs for differential services like IPTV. The Tplink TD-W8961N Dubai´s built-in QoS engine provides various QoS policies that help prioritize Internet traffic to enable smooth IPTV streaming and lag-free online gaming. Thus users can experience the benefits of a smooth network connection without worrying about traffic congestion. Combined with IGMP multicast and IGMP snooping features the TD-W8961N makes an ideal solution for multimedia applications.

Advanced Network Security and Flexible Management :
The Tplink TD-W8961N Dubai utilizes NAT and SPI (stateful packet inspection) firewalls which inspect the contents of incoming packets before they are allowed in, preventing potential attacks from across the Internet. For added convenience, it supports access control based on MAC addresses, IP addresses, domain names or applications such as MSN or Yahoo Messenger, so that parents and network administrators can establish restricted access policies for children or staff. Aside from web configuration, the TD-W8961N also provides TR-069 and SNMP, which automatically update the device´s firmware and other settings when they become available from users´ ISP. All of these features help users to enhance their network´s security and make network management more flexible.

Technical Specifications :

Hardware features :

Interface

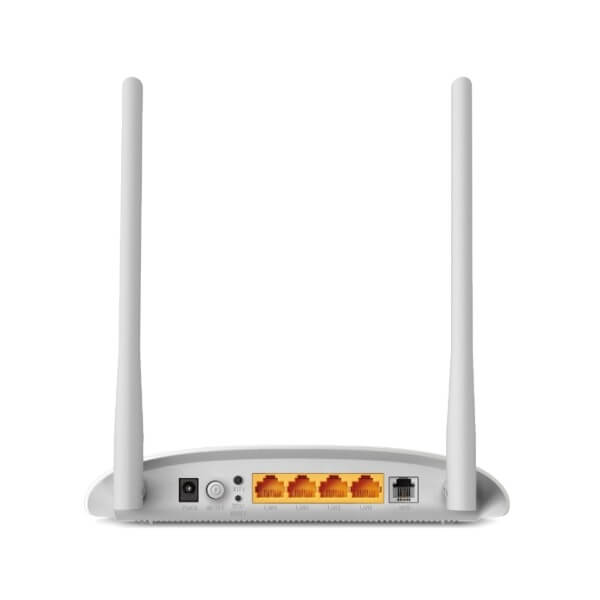

  • 4 10/100Mbps RJ45 Ports
  • 1 RJ11 Port

Button :

  • 1 Power On/Off Switch
  • 1 WPS Button
  • 1 Wi-Fi On/Off Button

External Power Supply : 9VDC/0.6A
Ieee Standard : Ieee 802.3, 802.3u

Adsl Standards :

  • Full-rate Ansi T1.413 Issue 2,
  • Itu-T G.992.1(G.DMT),
  • Itu-T G.992.2(G.Lite)
  • Itu-T G.994.1 (G.hs),
  • Itu-T G.995.1

Adsl2 Standards :

  • Itu-T G.992.3 (G.dmt.bis),
  • Itu-T G.992.4 (G.lite.bis)
  • Adls2+ Standards : ITU-T G.992.5
  • Dimensions ( W x D x H ) : 7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm )
  • Antenna Type : Omni directional, Fixed
  • Antenna Gain : 2x5dBi

Wireless features :

  • Wireless Standards : Ieee 802.11n, 802.11g, 802.11b
  • Frequency : 2.400-2.4835GHz
  • Transmit Power : <20dBm(Eirp)
  • Wireless Security : Support 64/128 bit Wep, Wpa-Psk/Wpa2-Psk,
  • Wireless Mac Filtering

Software features :

Quality of Service : QoS Remarking based on IPP/ToS, DSCP and 802.1p

Security :

  • Nat Firewall,
  • Spi Firewall,
  • Mac / Ip / Packet / Application / Url Filtering,
  • Denial of Service(Dos),
  • Syn Flooding,
  • Ping of Death

Management :

  • Web Based Configuration(Http)
  • Remote management
  • Telnet management
  • Command Line Interface
  • Ssl for TR-069
  • Snmp v1/2c
  • Snmp over Eoc
  • Web Based Firmware Upgrade
  • Cwmp(Tr-069)
  • Diagnostic Tools
  • Port Forwarding : Virtual Server, Dmz, Acl(Access Control List)
  • Vpn Pass-Through : Pptp, L2tp, IpSec Pass-through

Atm/Ppp Protocols :

  • Atm Forum Uni3.1/4.0,
  • Ppp over Atm (RFC 2364),
  • Ppp over Ethernet (RFC2516),
  • IPoa (RFC1577/2225),
  • Pvc – Up to 8 PVCs

Advanced Features :

  • Traffic Shaping(Atm QoS) Ubr, Cbr, Vbr-rt, Vbr-nrt
  • Dynamic Host Configuration Protocol (Dhcp), DHCP relay
  • Network Address Translation (Nat)
  • PVC/Ethernet Port Mapping
  • Vlan, 802.1p
  • Static Routing, RIP v1/v2 (optional)
  • Dns Relay, Ddns
  • Igmp snooping V1/2
  • Igmp Multicast
  • UPnpp

Others :
Certification : Ce, Fcc, Rohs

Package Contents :

  • Td-W8961n
  • External Splitter
  • Rj-11 Telephone Cable
  • Rj-45 Ethernet Cable
  • Quick Installation Guide
  • Power Adapter

System Requirements Microsoft :

  • Windows 98se, Nt, 2000, Xp, Vista ,Windows 7 or Windows 8
  • Mac Os, NetWare, Unix or Linux

Environment :

  • Operating Temperature : 0c~40c (32F~104F)
  • Storage Temperature : -40c~70c (-40F~158F)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
