Cisco SPA502



Cisco SPA502

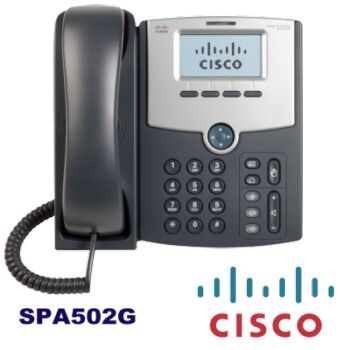

The Cisco SPA502G is a single line VoIP phone that is PoE capable and supports HD Voice with display.Cisco SPA 502 having Comprehensive Interoperability and SIP-Based Feature Set. SPA502 best suited for  business or home office use.With hundreds of features and configurable service parameters, the Cisco SPA502G addresses the requirements of traditional business users while building on the advantages of IP telephony.



Description

Cisco SPA502 IP Phone

IP Phone Cisco SPA502G supports two communication protocols VoIP: SPCP protocol for working with the Cisco UC500 and SIPv2 protocol for working with traditional s VoIP services and SIP PBX.

The Cisco SPA 502G IP Phone Part of the Cisco Small Business Pro Series, with the support of one line. It’s a SIP VoIP IP Phone with high-quality audio and one Line. This office phone uses highly encrypted communication protocols with  Remote provisioning options.

The SPA502G support two 500s expansion modules enable the phone with 54 BLF Buttons. The phone support Wideband audio enable unparalleled voice quality in your telephone communications. The Screen is Monochrome LCD with a highly customer friendly interface.

The SPA502G Feature Dual, POE Supported Ethernet ports with 10/100 MBPS network speed. It can store 60 call logs each in Missed Calls, Dialed Numbers and Incoming Calls. The Inbuilt phone book can store 100 contacts.

Technical Specifications:

  • LCD (Black)
  • 2 ports 10 / 100BASE-T RJ-45 Ethernet  (IEEE 802.3)
  • The handset RJ-9
  • Built-in speaker and microphone
  • 2.5mm Headset Jack
  • LEDs / buttons:
  • Illuminated buttons: Audio Mute On / Off Headset On / Off, Speakerphone On / Off



SPA 502 SPECIFICATIONS
Work
Model IP
Connection parameters
Speaker Y
Location dialer base
Mute Y
Telephone exchange
Conference call capability Y
Speed dialing Y
Redialling Y
The ability to forward calls Y
Call Blocking Y
Dialing on-hook Y
Call waiting Y
Call on hold Y
Call log entries Y
Pointing
The indicator on the handset Y
The indicator-based Y
The display
Screen Type LCD
Resolution 128 x 64 pixels
Display colors Monochrome M
Communication
The headphone jack 2.5 mm
Wireless connections No
Certificates
Certifications FCC (Part 15, Class B), CE Mark, A-Tick, C-Tick,  UL, CB
Weight & dimensions
Weight 900 g
Other properties
Voice Codecs G.711, G.722, G.726
Compatible with Mac No
Product Dimensions (WxDxH) 214 x 212 x 44 mm
Ethernet LAN (RJ-45) 2
Full duplex Y
Internet connection Y
PoE support Y
