Blackmagic AtemMini ExtremeISO Dubai



Blackmagic Atem Mini Extreme ISO Dubai

The Blackmagic Atem Mini Extreme ISO Dubai saves a DaVinci Resolve project file, so with a single click, you can open your live production as a video edit. All cuts, dissolves, and media pool graphics will be loaded, allowing you to tweak and edit your live production using the recorded input footage.

Description

Blackmagic Atem Mini Extreme ISO Live Stream Switcher Dubai

The Blackmagic Atem Mini Extreme ISO Dubai is a high performance live production switcher that has been designed for live streaming. It is fitted with a control panel and is equipped with many advanced broadcast features to make your work easier. Besides live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. The switcher’s ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB Type-C ports.

The Blackmagic Atem Mini Extreme ISO automatically generates a Da Vinci Resolve project file, so you can clean it up and make changes later. This versatile switcher’s eight independent HDMI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.

Switch, add effects, color grade, and key in real time using the control surface’s buttons, or via the software control panel. CCU functions are available for controlling Blackmagic Studio and URSA Mini/Broadcast/Micro Studio cameras from the switcher. The ATEM Mini Extreme ISO supports up to nine layers, with four upstream and two downstream keyers, up to four chroma keyers, up to four linear keyers, two DVE with borders and drop shadow, five pattern generators, and two color generators. Designed for live streaming or webcam, the Blackmagic Atem Mini Extreme ISO Dubai has HDMI outputs to feed monitors and supports up to 16-screen multi-view.

Features

Stream Live
Live stream to YouTube, Facebook Live, Skype, Twitch, Zoom, Microsoft Teams, and other platforms that support RTMP protocols using the new Blackmagic Atem Mini Extreme ISO Dubai.
Control Interface

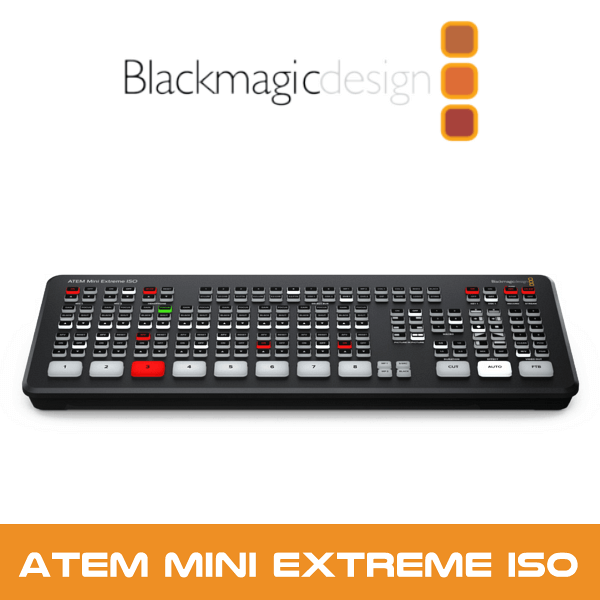

The front panel includes easy-to-use buttons for selecting sources, video effects, and transitions. The source buttons are large, allowing you to operate them by feel. Included on the Blackmagic Atem Mini Extreme ISO Dubai are buttons for audio mixing, recording, and streaming control, as well as output selection buttons that let you change the video output between cameras, program, and multi-view. On the rear panel, there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out, plus an HDMI “AUX” output for program video.
Output
You can output using the Ethernet connection to your network or use the USB Type-C output to have your switched show recognized as a webcam input by virtually any video software such as Zoom, Microsoft Teams, Skype, Open Broadcaster, XSplit Broadcaster, and others.
4G and 5G Phone Support
If you’re doing live production on location, the Blackmagic Atem Mini Extreme ISO Dubai models support connecting an Apple or Android phone to the USB port to use mobile data. It’s also a great backup for the main Ethernet connection, so you don’t drop your stream if your hardwired connection gets interrupted. The switcher will automatically switch to using the phone as the primary connection, and the USB port will also power your phone, so the battery won’t drain.
Multiview Monitoring
You can configure the HDMI output for multi-view with 4, 7, 10, 13, up to 16 views including Program, Preview, eight HDMI inputs, Super Source, clean feed, media player, streaming status, recording status, and audio meters.
Camera Control
The Blackmagic Atem Mini Extreme ISO Dubai can control the Blackmagic Pocket Cinema Camera 4K and 6K models when they are updated to the latest software and plugged in via the HDMI inputs. You can control your HDMI camera settings such as iris, gain, focus, detail, and zoom control on compatible lenses. Plus, you can color balance cameras, as well as create unique looks using the DaVinci Resolve primary color corrector built into the Blackmagic Pocket Cinema Camera 4K and 6K.
Media Pool
The switcher can store up to 20 images with fill and key, and it supports PNG, TGA, BMP, GIF, JPEG, and TIFF file formats.
Compatibility
It includes the ATEM Software Control Panel, and it is also compatible with the ATEM 1 M/E, ATEM 2 M/E, and ATEM 4 M/E Advanced Panels. The ATEM Mini Extreme ISO can be configured using Blackmagic’s Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Recording
The ATEM Mini Extreme models support the direct recording of your streaming data to USB flash disks using the same H.264 video files with AAC audio that you streamed. The Mini Extreme ISO also allows you to record the eight input video channels as MP4 files. This allows you to directly upload to any online video site, such as YouTube or Vimeo. Recording to multiple disks is also supported via a USB hub or the Blackmagic Multi Dock, so when a disk becomes full, recording can continue to a second disk for nonstop recording. Record settings and disk selection are set up in ATEM Software Control, and there’s a record status view in the built-in multi-view. You can even trigger recording on connected Blackmagic Pocket Cinema Cameras.
DaVinci Resolve Integration
The Blackmagic Atem Mini Extreme ISO Dubai saves a DaVinci Resolve project file, so with a single click, you can open your live production as a video edit. All cuts, dissolves, and media pool graphics will be loaded, allowing you to tweak and edit your live production using the recorded input footage. If you recorded the camera originals as Blackmagic Raw camera files, you can relink those and take advantage of DaVinci Resolve’s color correction abilities.
Video Effects
One of the benefits of ATEM Mini is the professional production values possible using the range of built-in video effects. The cut button ensures an instant cut when switching between sources. The auto button is a professional term used on large broadcast switchers to enable video effect transitions. There are duration buttons for video effects allowing 0.5-, 1-, 1.5-, and 2-second settings. You can also select the type of effect you want including mix, which does a smooth transition between sources, and dip, which fades via a color during the transition. Or use fun DVE effects that move the image off-screen when transitioning between sources.
Audio
With two independent 3.5mm stereo audio inputs, you can connect desktop and lapel microphones, or you can connect a music player to generate introduction music after the live stream commences but before the program starts. With two extra stereo audio inputs, you can ensure a host and guest both have lapel microphones when doing interviews. All audio inputs to the Blackmagic Atem Mini Extreme ISO Dubai include buttons on the panel for adjusting audio level and enabling inputs into the audio mixer. All models feature a Fairlight audio mixer with all HDMI inputs, and both microphone inputs are all connected to the audio mixer, so you can live mix from all audio sources. The ATEM Mini Extreme also adds a headphone output.
Broadcast Features
Hiding in the Blackmagic Atem Mini Extreme ISO Dubai models are a host of broadcast-caliber features that are accessible when connected to a Mac or Windows computer running the free ATEM Software Control app.

Specifications

Available M/E Layers 9 M/E
Effect Types
  • 2 x DVE
  • 4 x Luma Key
  • 4 x Chroma Key
Graphics Memory 20 Images
Downstream Keys 2 x Chroma, Luma, DVE
Generators
  • 5 x Pattern
  • 2 x Color
Audio Mixing 2-Channel Mixing
Processing
Switching Type Pushbutton, Software
Processing Resolution 1080p
Input
Number of Video Input Sources 8
Video Input Connectors 8 x HDMI
Input Video Format HDMI (10-Bit 4 : 2 : 2 YUV)

  • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  • 1080i 50/59.94/60 fps
  • 720p 50/59.94/60 fps
Audio Input Connectors 2 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input HDMI : 2-Channel (per Input)
Output
Video Output Channels 2
Video Output Connectors 2 x HDMI
Output Video Format HDMI (10-Bit 4 : 2 : 2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Output Connectors 1 x 1/8″ / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Output HDMI : 2-Channel
Multiview Output 16-Way Multiview viaHDMI
Connectivity
Other I/O
  • 1 x RJ45
  • 2 x USB Type-C
HDCP Support None
IP Video H.264 :
1920 x 1080 Encoding
Transport Protocols RTMP
Simultaneous Streams 1 Streams
Recording Modes 1920 x 1080p up to 60 fps (MP4)
Hardware
OS Compatibility
  • macOS 10.15
  • macOS 11.1 or Later
  • Windows 10
Power Connector 1 x Barrel (12 VDC) Input
Power Consumption Device : 36 W
Environmental
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 0 to 70%
General
Dimensions 14.56 x 5.37 x 1.56″ / 36.98 x 13.64 x 3.96 cm
Weight 2.72 lb / 1.23 kg
Packaging Info
Package Weight 4.375 lb
Box Dimensions (LxWxH) 19.7 x 7.3 x 3″
