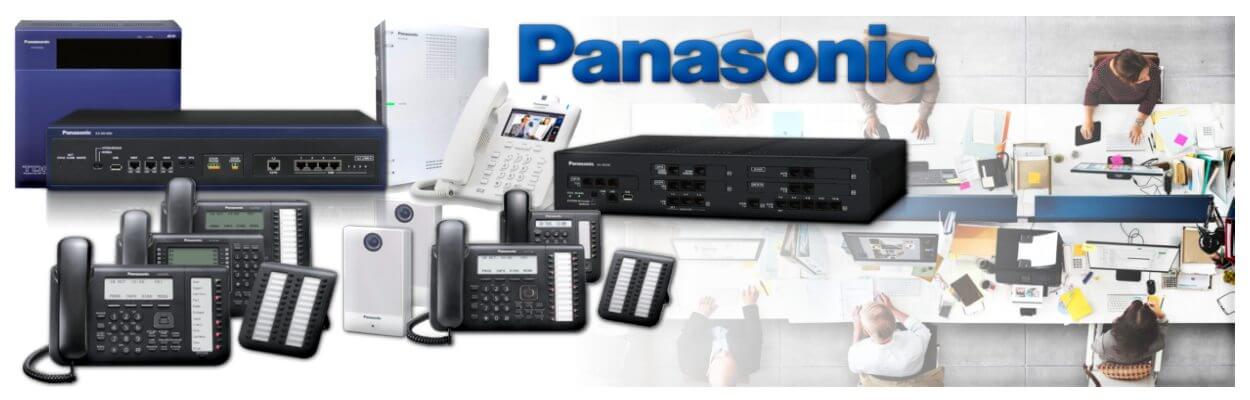

PBX Systems

Reflecting on Panasonics’ 20 years as a leader in the field, the Hybrid IP PBX system merges PBX functions and reliability with IP technology. The result is a high-performance business communication system that provides advanced telephone messaging solutions, efficient and flexible communications, Wireless Mobility, IP Networking capability, Voice-Over IP, and seamless integration with your PC through plug-n-play USB Connection.

In line with Panasonic’s commitment to user-friendly operation, the Hybrid IP PBX system is easy to use even without a lot of IP experience.Panasonic’s Hybrid IP PBX system is a powerful communications tool designed to support businesses in today’s Converged Networking age.

Panasonic phone systems are feature-rich, affordable and are designed to boost your business’ communication power, productivity and effectiveness. Panasonic phone systems leverage Voice over IP (VoIP) and SIP technologies to connect all of your business locations. Optional server based application suites provide Enhanced Voice Messaging, Instant Messaging (Chat), Presence Capabilities, Microsoft® Outlook®, CRM (TAPI) and Third Party Database provide (LDAP) contact integration.

KX-TES824

Hybrid system Up to 8 CO lines and 24 Extensions Direct Inward System Access (DISA) with message Uniform Call Distribution (UCD) with message Day/Night/Lunch mode Caller ID Display on SLT Build-in Voice Message (optional) 3-level Automatic Reception with Voice Guidance Flexible SMS Routing.

KX-TDA 100 PABX

Up to 64 Lines and/or 64 Extensions
5 Universal Slots
96 Ports
128 Portable Handsets
VoIP Telephones
VoIP Gateway
Multi-Site Networking
CTI / LAN / WAN Connectivity
7600 Series Telephones
Enhanced Call Centre Functionality
USB terminal for easy plug-n-play functionality
extra Device Port (XDP) and Digital XDP1
Wireless / Multi-Cell Telephones
Easy to Upgrade System
Caller ID2 of up to 20 Characters
Large easy-to-read 6-line backlit display
Time-Saving, Easy-to-Use Navigator Keys
Programmable Keys with Red/Green LED
Full-duplex Speakerphone
(excluding: KX-T7665)
Multi-language Capability

KX-TDA 200 PABX

Up to 128 Lines and/or 128 Extensions
10 Universal Slots
192 Ports
128 Portable Handsets
VoIP Telephones
VoIP Gateway
Multi-Site Networking
CTI / LAN / WAN Connectivity
7600 Series Telephones
ll Centre Functionality
USB terminal for easy plug-n-play functionality
eXtra Device Port (XDP) and Digital XDP1
Wireless / Multi-Cell Telephones
Easy to Upgrade System
Caller ID2 of up to 20 Characters
Large easy-to-read 6-line backlit display
Time-Saving, Easy-to-Use Navigator Keys
Programmable Keys with Red/Green LED
Full-duplex Speakerphone
(excluding: KX-T7665)
Multi-language Capability

KX-TDA 600 PABX

Max CO Lines: 640
Max Analog COs: 640
Max VoIP (H.323) trunks: 32
Max Total Extensions: 960 (1120 using DXDP)
Max Analog Proprietary Extensions: 320
Max Single Line Telephones: 960
Max Digital Proprietary extensions: 512 (640 with T7600, DT300 series)
Max IP Proprietary Phone extensions: 640
Multi-Cell Wireless Compatibility
Maximum Cell Stations (Antennas): Up to 128
Maximum Portable Handsets: 256 ( 512 with memory expansion card)
Maximum Doorphones: 64
Centralized Voicemail: with KX-TVA Voice Mail Systems
Direct Station Select (DSS) Consoles: 64
Dimensions (H x W x D): 16.3 x 16.9 x 10.6 (per shelf]
Easy to Upgrade System
Multi-language Capability

KX-TDA 100D PABX

Built-Trunk 08 – 24 extensions, integrated digital display.
Maximum size trunk 112 – 124 extensions.
Built-in power adapter.
Built-in 4-Port Digital
Enhanced analog extension capability
Built-in digital extension ports
Pre-installed power supply
7 open slots
New analog trunk card with caller ID (KX-TDA1180 / 1186)
The new analog extension with caller ID
KX-TDA1178 – KX-TDA1176 and 24-port – Port 16).
KX-TDA old / TDE analog extension cards can not be used.
KX-TDA0171 / 0172 mm LPR cards at least v07.04 or higher version must be updated.
Only supports the KX-DT300 and KX-T7600 series system phones.
Increased SDRAM capacity max. 2500 SMDR call data storage.

KX-TDA 100 DBP PABX

Panasonic PBX TDA100dbp
The initial capacity of lines 8
The initial capacity of extension 24 Analog / Digital 4
Total capacity of input cards 7
The total capacity of 80 trunk lines
The total capacity of 128 extension
Support PRI ( 0290 Panasonic card )
Support Disa
Installation of analog and digital telephones on the PBX
Municipal and domestic capacity can be changed to suit customer requirements .

KX-TDE 100 PABX

Total Number of Trunks :128
Trunk (Physical Trunk Card):120
Trunk (Virtual Trunk Card):32
Total Number of Extension:256
Extension (Physical Extension Card):160
Extension (Virtual Extension Card):128
IP-PT and IP Softphone:64
SIP Extension:128
Telephone:256
SLT:96
KX-T7600 series DPT:128
KX-T7560/KX-T7565 DPT:96
Other DPT:32
APT:24
IP-PT:160
IP-PT*1 (Supported by IP-EXT16 Card):96
IP-PT*2 (Supported by IPCMPR Card):64
SIP:128

KX-TDE 200 PBX

Total Number of Trunks:128
Trunk (Physical Trunk Card):128
Trunk (Virtual Trunk Card):32
Total Number of Extension:256
Extension (Physical Extension Card):256
Extension (Virtual Extension Card):128
IP-PT and IP Softphone: 64
SIP Extension:128
Telephone:256
SLT:128
KX-T7600 series DPT:256
KX-T7560/KX-T7565 DPT:128
Other DPT:128
APT:64
IP-PT:160
IP-PT*1 (Supported by IP-EXT16 Card):128
IP-PT*2 (Supported by IPCMPR Card):64
SIP:128
DSS Console:8
Basic CS:32

KX-TDE 600  PABX

Max CO Lines: 640
Max Analog CO’s: 640
Max VoIP (H.323) trunks: 32
Max VoIP (SIP) trunks: 64
Max Total Extensions: 992 (1152 with DXDP)*
Max Analog Proprietary Extensions: 320
Max Single Line Telephones : 960
Max Digital Proprietary extensions: 640 (DT300, T7600 series)
Max IP Proprietary Phone extensions: 704
Max SIP extensions: 128
Multi-Cell Wireless Compatible: Yes
Maximum Cell Stations (Antennas): 128
Maximum Portable Handsets: 512
Direct Station Select (DSS) Consoles: 64
Dimensions (H x W x D): 16.3″ x 16.9″ x 10.6″ (per shelf)
Weight: under 35 lbs (per shelf)

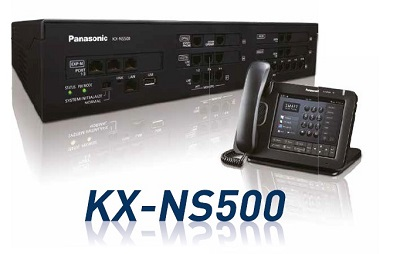

KX-NS500  PABX

The KX-NS500 has advanced features and starts from 6 analogue trunks and 18 extensions, up to 288 extensions with Expansion Units. For added flexibility and productivity, you can also take advantage of its built-in applications, such as a call centre solution, mobile solution and voice mail system to achieve greater working efficiency throughout your business and increased customer satisfaction. Finally, should you wish to migrate to an IP communications system, the KX-NS500 is once again the ideal solution. Simply by connecting the KX-NS500, you can either migrate or expand your existing legacy system, quickly and easily.

This smart hybrid PBX is a cost-effective legacy communication system for companies with up to 250 employees, that can be flexibly configured and expanded according to the specific requirements of a business.Contact us for NS500 installation and product supply  in Dubai, UAE
