Description

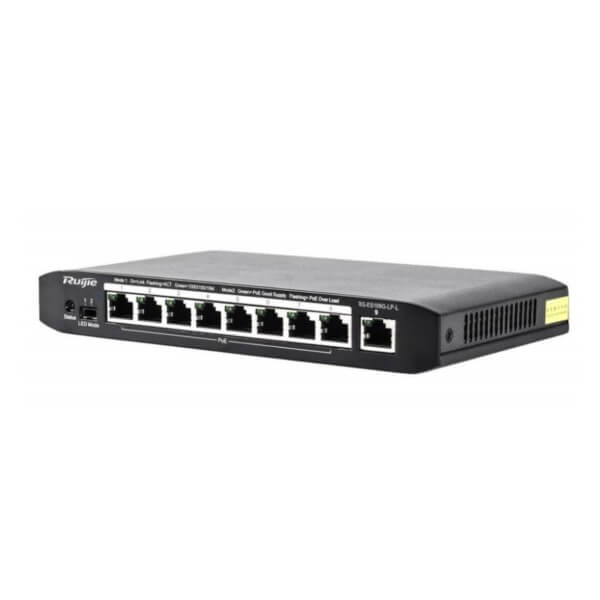

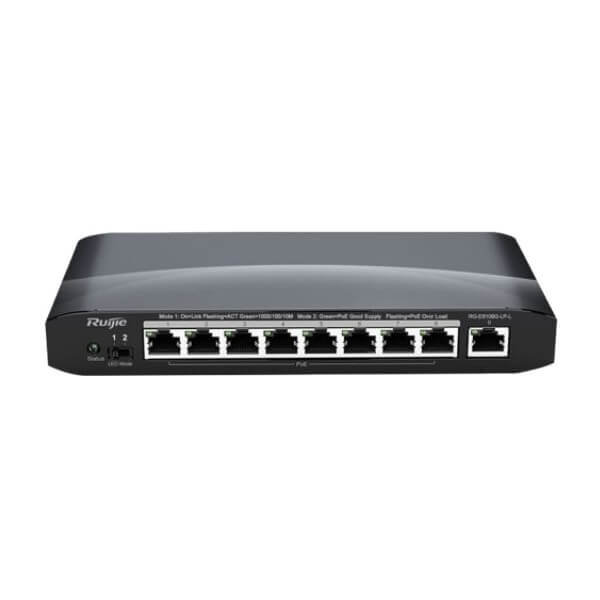

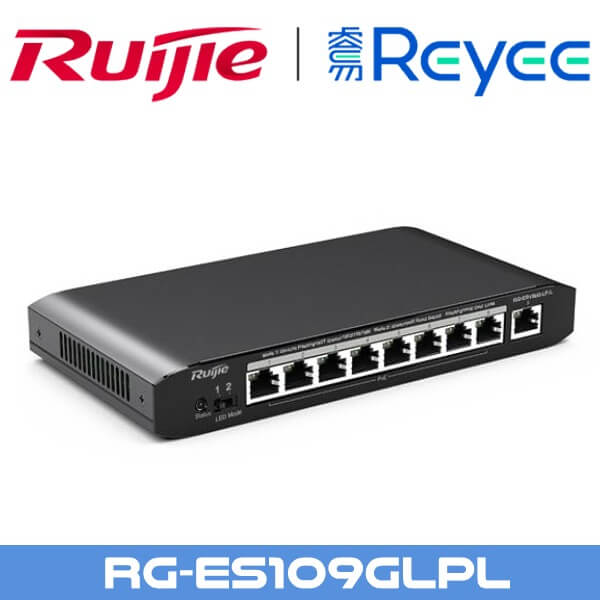

Ruijie RG-ES109GLPL Network Switch Dubai

Ruijie RG-ES109GLPL Network Switch Dubai is the next generation unmanaged switches for scenarios like CCTV, ELV and small offices. Ruijie RG-ES109GLPL Switch is designed for small and medium businesses looking for a Plug-n-Play solution. This Ruijie RG-ES100 series is part of the Ruijie SME network products. This product line includes 3 switches including one 8-port Gigabit PoE+ model and two 24-port Gigabit PoE+ switch models. The RG-ES109GLPL Network Switch can be deployed with plug-and-play right out of the box. Furthermore, port isolation and flow control features can be accomplished with a simple flip of a button on the control panel. In addition, PoE budget status can be displayed directly on the port indicators, which is of great help in troubleshooting.

Features

Easy connection

Ruijie RG-ES109GLPL Dubai boasts of a Full Gigabit Ethernet Selection including; 10 / 100 / 1000Mbps on any port, line rate forwarding. Also, Auto MDI/MDIX ensures all RJ45 ports support automatic MDI/MDIX, no cable restrictions when linking to clients or other switches.

Power over Ethernet

• PoE / PoE+
• Ruijie RG-ES109GLPL Network Switch Dubai provides up to 30Watt per port, enabling support for the latest IEEE802.3at (PoE+) capable devices such as high performance access points and IP cameras, as well as any IEEE802.3af (PoE) – compatible powered devices. Power on all ports including; Ports 1~8 of RG-ES109G-LP-L are all PoE/PoE+ capable. Also, PoE budget selection allow for wide choice of PoE power budgets from 185W to 370W on 24-port models.

More than Plug-n-Play

The One-click flow control. With a flip button on the control panel, Ruijie RG-ES109GLPL Network Switch Dubai flow control (IEEE802.3X) can be easily enabled to smooth traffic and avoid packet drops due to sudden traffic spikes. Also, one-click port isolation capability, With the switch on the board, users can also set up an isolating port between each port, helping to ensure the safety of CCTV cameras. Moreover, PoE Power Indicator provide status for alerts on the LED indicators of each port

Technical Specifications
