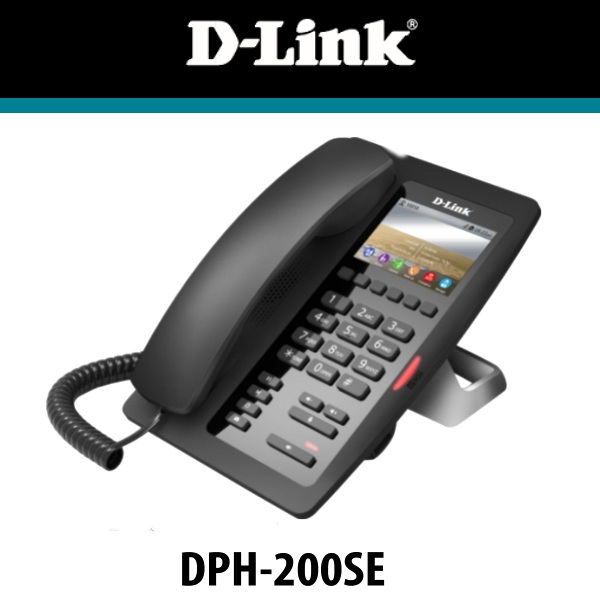

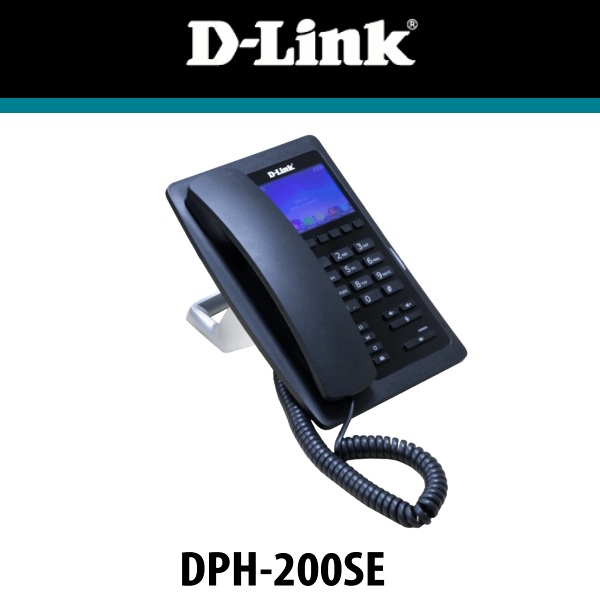

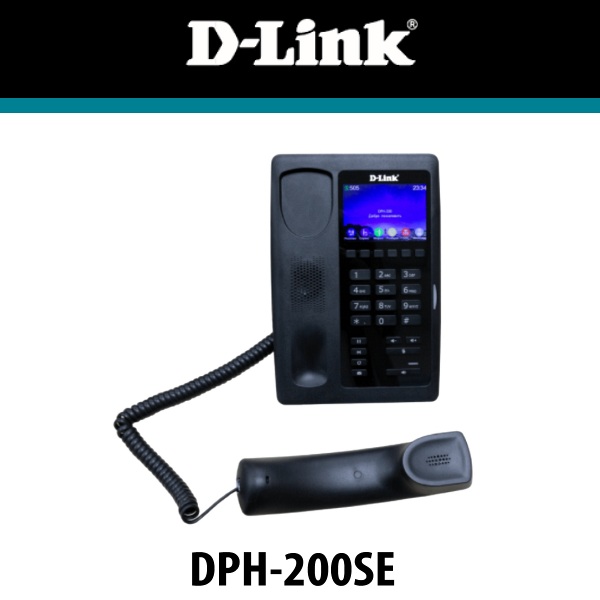

D-Link DPH-200SE Dubai



D-Link DPH-200SE Dubai

The D-Link DPH-200SE Dubai is a modern IP Phone which has mainly been designed for use by hotels. It is an elegant, stylish IP Phone which has been primed to achieve the focal point of any room.

Category:

Description

D-Link DPH-200SE IP Phone Dubai

The D-Link DPH-200SE Dubai allows its users to directly connect to PC instead of LAN directly. A colour LCD display on the panel provides direct visual interface with user. User can use keypad/LCD or Web browser to configure this phone. DPH-200SE supports one SIP account, G.722 codec, SRTP and many other useful functions including call transfer, hold and redial.

The D-Link DPH-200SE Dubai is a modern IP Phone which has mainly been designed for use by hotels. It is an elegant, stylish IP Phone which has been primed to achieve the focal point of any room. DPH-200SE combines contemporary appearance, excellent voice quality , along with matching integrated communication platforms, making it a new generation of hotel intelligent terminal equipment. It comes with a 1 10/100Base-TX WAN port with PoE and 1 10/100Base-TX LAN port. An integrated Power over Ethernet(PoE) port allows for easy connection with available networks, making it suitable for extended network uses. The PoE port also allows you to power your DPH-200SE Dubai through a single cable, simplifying deployment and eliminating the need for a nearby power outlet.

General features

Hardware
• SDRAM: 16MB
• FLASH: 8MB
Network interface
• WAN Port 10/100Base-TX with PoE support for LAN
• LAN Port 10/100 Base-TX for PC
• Handset RJ9
• USB port for mobile devices charge
LCD
• Color LCD display 3.5 inch
• Resolution: 480×320
Keypad Features
• 6 Soft keys for doing more functions
• Hold
• Transfer
• Redial
• MWI
• Speaker
• 12 numeric keys with star & pound key
• Mute
• Vol -/Vol +
Power Plug
• DC power plug
Software
• VxWorks OS
Voice Codec
• G.711a/u
• G.729A/B
• G.723.1 high/low
• G.722
• G.726-32
Advance Voice Quality Feature
• Support HD voice
• DTMF: In-band, RFC 2833 and SIP INFO
• Acoustic Echo Cancellation: hands-free can support 96ms
• Voice Active Detection (VAD)
• Comfort Noise Generation (CNG)
• Silence Suppression
• Packet Lost Concealment (PLC)
• Jitter Buffer
Signal, Media & Network Protocols
• SIP 2.0 RFC 3261
• SIP support 1 SIP server, and backup SIP proxy servers
• SIP UDP/TCP/TLS support
• SIP support SIP domain, SIP authentication (none, basic,  MD5), DNS name of server, Peer to Peer/IP Call
Supplementary Call Feature
• Call Transfer (Blind, Attend and Early Attended Transfer)
• Call Hold
• Call Waiting
• Redial
• Call completion
• MWI
• Flexible dial plan
• Barring function for outgoing calls
• Do Not Disturb
• Auto Answer
• Anonymous Call/Rejection
• Dial without registration
• Call logs with missed/incoming/outgoing calls
• DTMF hidden
• Action URL/Active URI
• Multicast
• Web dial
• Emergency call
Security
• Bridge mode
• Static IP, DHCP, PPPoE
• 802.1X
• VPN: L2TP (Basic Unencrypted)
• OpenVPN (Attention! This function is not available with the devices that shipped to the territory of the Customs Union states.)
• VLAN
• QoS
User interface/network management
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
• Multi languages displayed (Web)
• Web-based Packet Dump
• Configuration Export/Import
• Firmware Upgrade
• Syslog
Dimensions
• 213 x 170 x 130 mm
Power
• Power Adaptor (not included)
• Output: DC 5V/1А
• Ethernet cable (PoE) 802.3af
Power Consumption
• Typical: 2.5 Watt (Standby)
• Max.: 2.8 Watt (Talking)
Temperature
• Operating: 0° to 40°C
Humidity
• Operating: 10% to 65 % (no-condensing)
Certifications
• FCC
• CCC
• CE
• RoHS
