Description

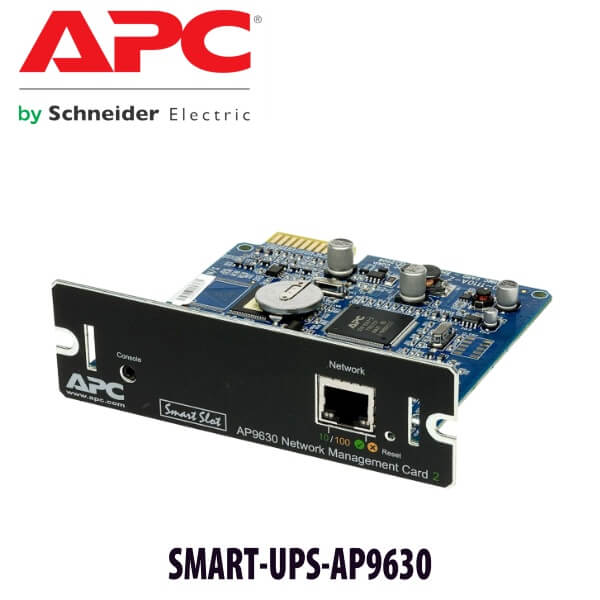

APC AP9630 Dubai UPS Network Management Card 2 with SmartSlot SNMP Monitoring

The UPS is sitting in the server room. The green light is on. Everyone assumes it is fine.

Then power drops at 2:18AM in a Dubai office tower. The server stays up for a few minutes, then shuts down badly. Nobody received an alert. Nobody knew the battery was weak. Nobody saw the UPS event log until the next morning, when the ERP system was already offline and staff were waiting.

That is the job of the APC AP9630. It turns a compatible APC Smart-UPS from a silent box in the rack into a monitored network device. Web access. SNMP. Email alerts. Event logs. Remote visibility. Proper shutdown signalling. The UPS stops being something you only check when there is a problem.

What the APC AP9630 is

The APC AP9630 is a Network Management Card 2, often called an NMC2. It installs into the SmartSlot of compatible APC UPS systems and gives the UPS a dedicated ethernet connection. Once installed and configured, IT teams can monitor UPS status over the network instead of walking to the rack and reading the front LCD.

For offices in Dubai, that matters more than many buyers realise. UPS units are often installed in closed server closets, back rooms, retail branches, warehouses, telecom cabinets, and free zone offices where nobody checks the unit daily. The UPS may be protecting servers, switches, Etisalat or du internet routers, NAS storage, access control controllers, CCTV NVRs, or PABX systems. If the UPS battery fails silently, the equipment looks protected but is not.

With the AP9630 installed, the UPS can report input voltage, output load, battery condition, runtime remaining, event history, and alarm status through a browser-based interface and standard network monitoring tools. For IT administrators, this is the difference between guessing and knowing.

AP9630 is for monitoring. It does not increase runtime.

A network management card is sometimes misunderstood. The AP9630 does not add batteries. It does not increase VA. It does not increase watts. It does not change the UPS topology from line interactive to online double conversion. It adds visibility and control.

If your UPS is 1500VA / 1000W, it remains 1500VA / 1000W after the card is installed. If your UPS has 8 minutes of runtime at the connected load, it still has 8 minutes. What changes is that you can see those 8 minutes from your desk, from your monitoring system, or through alert emails. You can act before the battery is empty.

This is especially important in Dubai server rooms where cooling can decide battery health. A UPS battery that may last 3 to 5 years in a cooler climate often lasts 2 to 3 years here, especially if the room runs above 30°C after office hours. A front-panel warning is not enough when nobody is in the room. A network alert is.

AP9630 vs SmartConnect

APC has two common ways to monitor UPS systems remotely. SmartConnect and Network Management Cards.

SmartConnect is built into selected APC Smart-UPS models with an IC suffix. For example, an SMC1000IC or SMT1500IC has an ethernet port for APC cloud monitoring. It is simple, fast to set up, and useful for small offices that want alerts without running their own monitoring platform.

The AP9630 is different. It is a SmartSlot network card. It is used when the UPS needs to sit inside an IT-managed network with SNMP monitoring, local web access, network shutdown logic, and integration with tools such as PRTG, Nagios, Zabbix, SolarWinds, or a building management workflow. It gives more control to the IT team and does not depend on a simple cloud-only view.

For a small office with one UPS under a desk, SmartConnect may be enough. For a server rack in DMCC, a warehouse IT cabinet in Jebel Ali Free Zone, a DIFC office with managed switches, or a branch network tied into head office monitoring, an NMC is usually the better fit.

SNMP monitoring for IT teams

The main reason Dubai IT teams ask for AP9630 is SNMP. Simple Network Management Protocol allows the UPS to report its condition into the same monitoring system used for firewalls, switches, servers, storage, access points, and internet links.

That means a UPS battery fault can open a ticket. A low runtime warning can trigger an escalation. An input power failure can show on the network operations dashboard. A branch UPS running near overload can be corrected before the next outage exposes it.

Without a network card, many UPS events stay local. The UPS beeps in the server room. The LCD shows an alarm. Maybe the battery icon flashes. But if the room is locked, or the site is in another emirate, that warning may as well not exist. With AP9630, the UPS becomes part of the network estate.

This is useful for managed service providers, internal IT teams, facility managers, and procurement teams responsible for multiple sites across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. One branch losing UPS protection should not be discovered during the next outage. It should be known when the warning first appears.

Typical AP9630 installation in Dubai

A typical AP9630 installation starts with the UPS model number. We confirm the unit has SmartSlot and that AP9630 is the correct card for the environment. Then the card is installed into the SmartSlot bay, connected to the network, assigned the correct IP settings, and tested from the customer network.

For office networks, we normally confirm web access, SNMP polling, email alert routing, UPS event logs, battery status, and load percentage. Where shutdown software is required, we coordinate with the IT team so servers receive the correct signal before battery runtime is exhausted.

Installation is not just inserting a card. The useful part is configuration. IP address. Gateway. DNS. SMTP. SNMP version. Community strings or credentials. Access control. Alert recipients. Shutdown behaviour. Firmware review where applicable. Then a real test so the team sees the UPS reporting correctly.

Where AP9630 fits best

AP9630 makes sense when the UPS is already part of a managed IT environment. A server rack with managed switches. A branch office with central monitoring. A retail chain where every POS cabinet needs uptime. A warehouse where the network cabinet feeds handheld scanners, Wi-Fi access points, CCTV, and access control. A hotel back office where the PABX, network switch, and router should not fail without warning.

It is also useful when a procurement team is replacing an existing AP9630 like-for-like. Some companies standardised on NMC2 across older Smart-UPS fleets and prefer to keep the same card type for spares, configuration templates, and monitoring rules. That is valid. Not every site wants to mix generations unless there is a reason.

For brand-new deployments, the decision is different. The AP9640 is the current-generation APC NMC3 card and should be considered first unless the UPS or site standard points back to AP9630. Vector Dubai supplies both options and checks the correct match before quoting.

AP9630 vs AP9640 — which one should you buy?

This is the main decision for most AP9630 enquiries in Dubai.

AP9630 is Network Management Card 2. AP9640 is Network Management Card 3. AP9630 is still useful for older APC Smart-UPS fleets, replacement requirements, and sites where the IT team already has NMC2 configuration templates. AP9640 is the better choice for most new UPS installations because it is the current-generation APC network card.

Choose AP9630 when you are replacing an existing AP9630, matching older site standards, maintaining an NMC2-based monitoring setup, or working with a UPS where AP9630 is the confirmed compatible card.

Choose AP9640 when the UPS is new, the project has no NMC2 standard, or your IT team wants the current APC NMC generation. For new Smart-UPS SMT, SRT, and SRTG projects, we normally check AP9640 first.

Which APC UPS systems use a Network Management Card?

Network management cards are used on APC UPS systems with SmartSlot. These are usually business and enterprise UPS models, not small desktop units. The exact compatibility must be checked by model number, but in Dubai we most often see NMC cards installed on Smart-UPS SMT, Smart-UPS X SMX, Smart-UPS SRT, and new-generation SRTG systems.

A Smart-UPS SMT tower protecting a small server room may need AP9630 for local IT monitoring. A rack-mounted SRT3000RMXLI in a network cabinet may need SNMP alerts to the head office. A larger SRTG installation may need network visibility because the UPS supports core switches, security systems, and servers that cannot go down without warning.

Entry-level UPS units are different. Back-UPS, Easy UPS BVX, and many small line interactive desktop models do not have SmartSlot. They cannot accept AP9630. For those units, monitoring is either not available, handled through USB shutdown software, or handled by choosing a SmartConnect model instead.

What AP9630 lets your IT team see

The value of AP9630 is not the card itself. It is the information the card exposes before a power event becomes a business interruption.

Your team can check whether the UPS is online, on battery, overloaded, bypassed, or reporting a fault. They can see battery charge, runtime remaining, input voltage, output load, and event history. They can review repeated voltage dips in an older commercial building. They can confirm whether the UPS is carrying 35% load or sitting at 92% and waiting to fail during the next outage.

That matters in Dubai offices where power quality issues may be short and easy to miss. A two-second dip can reboot a switch. A short brownout can trigger a UPS event. A weekend cooling failure can push a server room above safe temperature and shorten battery life. The event log gives evidence. Not guesses.

For MSPs managing multiple customer sites, AP9630 helps standardise reporting. One dashboard can show UPS status across branches. One ticketing system can receive alerts. One engineer can decide whether the site needs a battery replacement, load reduction, or a larger UPS.

Installation, configuration, and testing

Vector Dubai supplies and installs APC AP9630 cards across the UAE. Installation starts with compatibility checking. We confirm the UPS model, SmartSlot availability, existing card status if any, network requirement, monitoring platform, and alert recipients.

Then the card is installed, connected to the network, and configured. IP address settings are applied. Browser access is tested. SNMP settings are added where required. Email alert settings are checked with the customer’s mail environment. UPS status is verified from the network, not just from the front panel.

For server environments, we also review shutdown behaviour. The point is simple: when runtime falls below a safe threshold, servers should shut down cleanly. Databases should close. Files should sync. Virtual machines should not be cut off mid-write. For many offices, this is the difference between a clean Monday morning and a long recovery job.

We do not treat the AP9630 as a loose accessory. It has to be installed into the correct UPS, configured for the customer network, and tested under the conditions the site actually uses. That includes older office buildings, high-density towers, retail branches, warehouses, and free zone offices.

Frequently asked questions

Is AP9630 a UPS or a network card?

AP9630 is a network management card, not a UPS. It does not provide battery backup by itself. It installs into a compatible APC UPS with SmartSlot and allows remote monitoring, SNMP alerts, event logs, and network-based UPS management.

Does AP9630 increase VA, watts, or runtime?

No. AP9630 does not increase UPS capacity. VA and watts are decided by the UPS itself. A 3000VA / 2700W UPS remains 3000VA / 2700W after the card is installed. The AP9630 only adds monitoring, alerts, and management.

Can AP9630 run a server through a full power outage?

No. The UPS battery carries the load during an outage. AP9630 tells the server or IT team what is happening and can support clean shutdown planning. If you need longer runtime, the UPS battery system or external battery packs must be sized correctly.

What is the difference between AP9630 and AP9640?

AP9630 is Network Management Card 2. AP9640 is Network Management Card 3 and is the current-generation option for many new APC UPS deployments. AP9630 is still useful for older UPS fleets, like-for-like replacement, and NMC2 site standards. For new installations, we normally compare AP9640 first.

Does AP9630 work with every APC UPS?

No. AP9630 requires a compatible APC UPS with SmartSlot. Many Smart-UPS SMT, SMX, SRT, and enterprise models have SmartSlot. Most small Back-UPS and Easy UPS desktop units do not. Send the UPS model number before ordering.

Does AP9630 support SNMP monitoring?

Yes. SNMP monitoring is one of the main reasons to install AP9630. IT teams use it to bring UPS alerts into monitoring platforms such as PRTG, Nagios, Zabbix, SolarWinds, and internal NOC systems.

Does Vector Dubai install AP9630 on the same day?

For available stock and compatible UPS systems in Dubai, installation can often be arranged same day or next day depending on schedule. We confirm the UPS model first, then quote supply, installation, configuration, and testing in AED.

Is AP9630 useful for Dubai voltage dips?

Yes, indirectly. The UPS handles voltage dips. The AP9630 records and reports UPS events, so IT teams can see repeated input power issues in older buildings, towers, warehouses, and free zone offices. That history helps decide whether load, battery, or UPS sizing needs correction.

Who is the supplier of APC AP9630 in Dubai?

Vector Dubai is an authorised APC/Schneider Electric supplier and installer in Dubai, UAE. We supply APC AP9630 network management cards with compatibility checking, installation, SNMP setup, alert configuration, and warranty support for compatible APC UPS systems.

What is the best APC network card for UPS monitoring in Dubai?

For new APC SmartSlot UPS installations, AP9640 is usually the better starting point because it is the current-generation NMC3 card. AP9630 is best when you need NMC2 for an existing UPS, spare replacement, site standard, or confirmed compatibility requirement.

UAE coverage for APC AP9630 installation

Vector Dubai supplies and installs APC AP9630 network management cards across all seven emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain.

We support offices, server rooms, retail branches, warehouses, clinics, schools, hotels, and IT cabinets in DMCC, DIFC, Dubai Internet City, Dubai Media City, Jebel Ali Free Zone, ADGM, and Masdar City. Multi-site deployments can be handled under one quote and one installation plan.

Export from Dubai

Vector Dubai exports APC UPS accessories, including network management cards, replacement batteries, external battery packs, and Smart-UPS systems, from Dubai to businesses, resellers, and system integrators across the Middle East, Asia, and Africa.

We supply to Saudi Arabia, Oman, Pakistan, Azerbaijan, Bahrain, Tajikistan, Uzbekistan, Qatar, Maldives, Kazakhstan, Kuwait, Jordan, Sri Lanka, Turkmenistan, Kyrgyzstan, Bangladesh, and Iraq across the Middle East and Asia.

In East and Southern Africa, we export to Egypt, Malawi, Djibouti, Ethiopia, Burundi, Madagascar, Mauritius, Rwanda, Comoros, Kenya, Sudan, Zambia, Angola, Uganda, Tanzania, Mozambique, and Zimbabwe.

In West Africa, we export to Ghana, Mauritania, Mali, Burkina Faso, Senegal, Liberia, Nigeria, Gambia, and Ivory Coast. FOB Dubai pricing, commercial invoice, packing list, and export documentation are available on request. WhatsApp the model, quantity, and destination country for an export quote.
