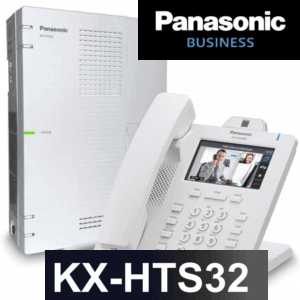

Panasonic KX-HTS32 PBX System



Panasonic KX-HTS32 PBX System

The Panasonic KX- HTS32 PBX System specially designed for SME Sector. It is a hybrid IP telephone system supports both IP Extensions and Analog Extensions. The Basic System Coming with a capacity of up to 24 extensions and 4 Trunk Lines. Panasonic KXHTS32 included all the necessary standard functions like voice mail, IVR, Mobile Extension, SIP Extension Licenses and SIP trunk.

Description

Panasonic HTS32 Functions in Detail

Panasonic KX-HTS32 is a full fledged PBX System with integrated router and Wi-Fi hotspot. With a very affordable price and possessing all the necessary standard features, KX-HTS32 is an ideal choice as an office telephone System. It is Designed to provide optimal communication for small and medium-sized enterprises. The Device support Standard SIP IP Phones from Grandstream, Cisco, Yealink, RTX, Snom, and Dlink.

The HTS32 PBX Telephone System can easily maintain by easy installation and maintenance. Moreover, IT Support new business trends such as BYOD. It means an increasingly general trend in which companies allow employees to bring their personal portable devices to perform work tasks and connect to the network and corporate resources. With inbuilt Wifi and Mobile Extension Support, it can achieve easily with Panasonic KX-HTS32.

The HTS32 PBX System Panasonic HDV Series Phones, Analog Phones, SIP Phones as Panasonic KX-NTV Series Video Door Phones. You Can easily integrate ISDN/ PRI lines with KX-NS5282X  and KX-NS5284X.T he Panasonic HTS32 Advanced Hybrid PBX system is ready to connect to SIP IP Phones. You don’t require a separate license to connect the SIP Phones. The CO Line [ 4 Trunk ]  and SLT Extensions are factory-equipped for Caller ID.

Panasonic KX-HTS32The Panasonic KX-HTS32  IP PBX  has an initial factory configuration of 4 CO analog trunks and 8 analog extensions with caller ID. this capacity can be increased up to a maximum of 8 CO trunks and 24 extensions by using Of optional cards, in addition, the HTS32 system has WiFi router and access point built in, this allows to use the HTS32 as an access point for PCs or Smartphone smartphones. The HTS32 Telephone System has 24 functional SIP extensions support inbuilt without the need for additional licenses.

KX-HTS32 Telephone System Specification

Type Pre-Installed Maximum Capacity
Maximum Trunk Lines 8[6 If G729A Codec]



8[6 If G729A Codec]



SIP Trunk – 6 [ G.711 Codec]

4[ G729A Codec]

Analog Trunk – 4

SIP Trunk – 6 [ G.711 Codec]

4[ G729A Codec]

Analog Trunk – 8

Extensions Sip Extension- 24

Analog Extensions- 8

Sip Extension- 24

Analog Extensions- 24

IDISA 4 ch 4 ch
Built-in VM 4 ch 4 ch
Analog Door Phone 0 2
Analog Door Opener 0 2
IP Door Phone Can use as an IP Extension Max System Extension Capacity



HTS32 Features

  • Voice Mail
  • Up to 32 extensions
  • 24 SIP Licence Inbuilt
  • Music on Hold
  • IP/Legacy Flexible Hybrid System.
  • Call Detail Records [CDR] – 40000 Calls
  • Built-in Basic Call Handling Function
  • Extension Group
  •  Integrated Router and Wi-Fi Access Point
  • Remote IP Extension
  • IVR [ Max 60 Second, 10 Messages]
  • Video Communication
  • Simple Monitoring System
  • Voice Mail Notification
  • Paging
  • Easy Installation
  • Simple Maintenance
