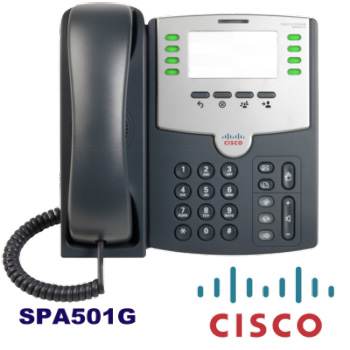

Cisco SPA501G

Cisco SPA501G

Cisco SPA501 G is a  8-line business-class IP phone supporting Power over Ethernet and without display.Ideal for voip applications where less features are required.SPA 501G Basic 8-Line IP Phone SIP protocol and work with any sip supported IP PBX.Cisco SPA 501G addresses the requirements of traditional business users while building on the advantages of IP telephony.



Category:

Description

Cisco SPA501G IP Phone

Cisco SPA501G supports SCCP protocol for working with the Cisco UC500 and SIPv2 protocol for working with the SPA9000 and other servers.

SPA 501Technical Specifications:

  • 2 port s 10 / 100BASE-T RJ-45 Ethernet  (IEEE 802.3)
  • The handset RJ-9
  • Built-in speaker and microphone
  • 2.5mm Headset Jack
  • LEDs / buttons:
  • 8 buttons
  • LEDs indicate the status of the line – active, not registered,
  • Illuminated buttons: Audio Mute On / Off Headset On / Off, Speakerphone On / Off

Supported network protocols:

  • MAC address (IEEE 802.3)
  • IPv4 (RFC 791)
  • Address Resolution Protocol (ARP)
  • DNS: A record (RFC 1706), the SRV record (RFC 2782)
  • Dynamic Host Conf iguration Protocol (DHCP) client (RFC 2131)
  • Internet Control Message Protocol (ICMP) (RFC 792)
  • TCP (RFC 793)
  • User Datagram Protocol (UDP) (RFC 768)
  • Real-Time Transport Protocol (RTP) (RFC 1889, 1890)
  • Real-Time Control Protocol (RTCP) (RFC 1889)
  • Differentiated Services (DiffServ) (RFC 2475)
  • Type of Service (ToS) (RFC 791, 1349)
  • VLAN tagging 802.1p / Q: Layer 2 quality of service ( QoS )
  • Simple Network Time Protocol (SNTP) (RFC 2030)

Specification of the voice:

  • 8 lines
  • Voice protocol SIP  v.2 (RFC 3261, 3262, 3263, 3264)
  • SPCP with the Cisco Unified Communications 500 Series
  • Protocol support SIP  networks with NAT  (including STUN server support)
  • Redoing registration of the primary server SIP
  • SIP Frag (RFC 3420)
  • The ability to initiate encrypted connections via SRTP
  • Voice codecs:
    • G.711 (A-law and μ-law)
    • G.726 (16/24/32/40 kbps)
    • G.729 A
    • G.722
  • Dynamic payload support
  • The possibility laid site and a size of the audio frames per packet
  • Dual-tone multifrequency ( DTMF ), in-band and out-of-band (RFC 2833) ( SIP  INFO)
  • Flexible dial plan support with interdigit timers
  • Support for call by IP address / URL
  • Generating sounds during a conversation
  • J itter  buffer: adaptive
  • Hiding lost frames
  • Generate artificial background noise generation (CNG)
  • The algorithm recognizes a caller activity (VAD) algorithm damping silence
  • Adjusting damping / profit
  • VMWI – Voicemail waiting indicator, by sub skrypcje, notification
  • Third-party call control (RFC 3725)

Provisioning and Administration:

  • Built Administration Server to manage Administrator and User
  • Management by phone keypad
  • The system provisioning via HTTPS, HTTP, TFTP
  • Asynchronous notification for updates notification (NOTIFY)
  • Nonintrusive in-service upgrades
  • Generating reports and registration of events
  • Statistics BYE broadcast in the news
  • And syslog server entries dubug: configurable per line

Environmental Specifications:

  • Power supply:
    • Power of Ethernet  802.3af
    • The power supply is optional and is purchased separately
    • Compatible power supply models: Cisco PA100-NA, PA100-EU, PA100-UK, PA100-AU
    • Specifications power supply on the output: +5 VDC at 2.0A
  • Dimensions: 214 x 212 x 44 mm
  • Weight: 0.9 kg
  • Operating temperature: 0 ° ~ 40 ° C
  • Storage temperature: 20 ° ~ 70 ° C
  • Air humidity Operating: 5% to 95%
  • Air humidity during storage: 5% to 95%
